Product Features

Monitoring SpO2, pulse rate, ETCO2 and respiratory rate;
Update 255-hour historical data replay on PC through USB
Equip Spo2 and Respiratory Status Analysis Software, comprehensive data analysis
Suitable for clinical and emergency circumstance
SpO2, SpO2+CO2 selectable

Software Function
Professional Data Analysis Software for CO2 Monitoring
Connecting the palm monitor to PC through USB
Storing Unlimited patient’s data
Displaying ETCO2，SPO2 Trends Table
Controlling PC printer, outputting trend graph, trend table report
Recording and storage object’s respiration details in clinical

Options:
SpO2 Module

Inside Pump Made by

Product Specifications

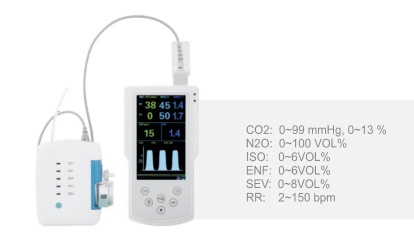

Main Unit’s Environment Requirement Working:          Temperature: 5℃~50℃;                          Relative humidity: 0~95%;                                   Atmosphere Pressure: 70.0KPa~106.0KPa Storage:          Temperature: 0℃~70℃;                         Relative humidity: 0~95%;                         Atmosphere Pressure: 22.0KPa~120.0KPa      LED                              Patient Alarm Indicator: Two colors: Yellow and Red Sound Indicator            Loudspeaker:         Play alarm voices Interfaces                        Power:                    12VDC power socket x 1   USB:                       MINI USB socket x 1   Measurement Specification Principle:                 NDIR single beam optics Sampling Rate:       90mL/min, ±10mL/min Initialization Time:   Waveform displaying in 20 seconds   Range                            CO2:                0~99 mmHg, 0~13 % N2O:                0~100 VOL% ISO:                 0~6VOL% ENF:                0~6VOL% SEV:                0~8VOL% RR:                 2~150 bpm   Resolution                    CO2:               0~40 mmHg    ±2 mmHg                        40 ~99 mmHg  ±5% of reading   N2O:               0~100VOL%                         ±(2.0 vol% +5% of reading)   ISO:               0~6VOL%                          ±(0.3 vol% +2% of reading)   ENF:               0~6VOL%                           ±(0.3 vol% +2% of reading)   SEV:               0~8VOL%                           ±(0.3 vol% +2% of reading)   RR:                ±1 bpm Apnea Alarm Time:    20~60s



MAC value defines    1.0MAC: under an atmospheric pressure condition, give a person or animal skin stimulation, 50% of people or animals not body dynamic response or escape reflection occurs, the inhalation anesthetics in alveolar concentration.  To achieve 95% of people don’t respond to stimuli, the MAC value should reach to 1.3.  When MAC value is 0.4，most patients will wake up.   Anesthetic agents Enflurane:         1.68 Isoflurane:         1.16 Sevoflurane:     1.71 Halothane:        0.75 N2O:                 100% Notice                Desflurane’s MAC1.0 values differ with age Age:                  18-30   MAC 1.0  7.25% Age:                   31-65   MAC 1.0  6.0%       Power Specification Input Voltage:       12V DC Input Current:       2.0 A       Physical Specification Main Unit Weight:               0.65Kg Dimension:         192mm x 106mm x 44mm   Hardware Specification TFT Screen Type:                   Colorful TFT LCD Dimension:          5.0 inch   Battery                           Quantity:             4 Model:                Rechargeable lithium battery Voltage:              3.7 V Capacity:            2200mAh Working time:     10 hours Recharging time: 4 Hours





Related Accessories

Standard:


CO2 Sample Line    ......... 1Pcs
Nasal Tube     .................. 1Pcs
Water-trap Column  ......... 1Pcs
Airway Adapter    ............. 1Pcs
Power Adapter    .............. 1Pcs

Options:
SpO2 Cable (Adult hard shell sensor)
SpO2 Cable (Adult Soft shell sensor)
SpO2 Cable (Neonatal soft sensor)

SpO2 Cable (Pediatric hard shell sensor)
SpO2 Cable (Pediatric Soft shell sensor)
SpO2 Cable (Child finger clip)
SpO2 Cable (multi-site Y type)
SpO2 External Cable
