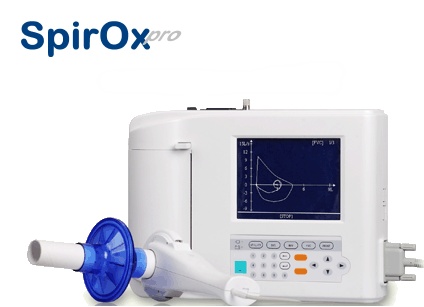

The portable pulmonary function measurement instrument can be used to measure vital capacity (VC), forced vital capacity (FVC), Maximum Ventilator Volume (MVV). Measurement algorithm refers to the ITS, ERS standards of the American Thoracic Society (ATS)
Measuring principle
When be normally breathing, the gas passed through the flow sensor. On both sides of the screen of the sensor will produce different pressure. The pressure is detected by the sensor, which is converted to electrical signals. After the signal amplification, AD converter sampling, the pressure is converted to digital signal into the computer system.
Through digital signal processing and analyzing technology, computer system reproduces the breathing waves that are displayed on the LCD together with analyzed results. In the end the built-in printer prints out the analysis results.Single use filter
Read More Measuring principle
When be normally breathing, the gas passed through the flow sensor. On both sides of the screen of the sensor will produce different pressure. The pressure is detected by the sensor, which is converted to electrical signals. After the signal amplification, AD converter sampling, the pressure is converted to digital signal into the computer system.
Through digital signal processing and analyzing technology, computer system reproduces the breathing waves that are displayed on the LCD together with analyzed results. In the end the built-in printer prints out the analysis results.Single use filter
Single use mouth set
The portable pulmonary function measurement instrument can be used to measure:
Vital capacity (VC)
Forced vital capacity (FVC) Maximum Ventilator Volume (MVV).
Measurement algorithm refers to the ITS ERS standards of the American Thoracic Society (ATS)
Measurement of breathing time:
VC time 50 seconds
FVC measuring time 25 seconds
MVV time 12 seconds in favor of the coordination between patients and the device
Adopting pressure-flow sensor sensitive precise easy to launder clean and durable

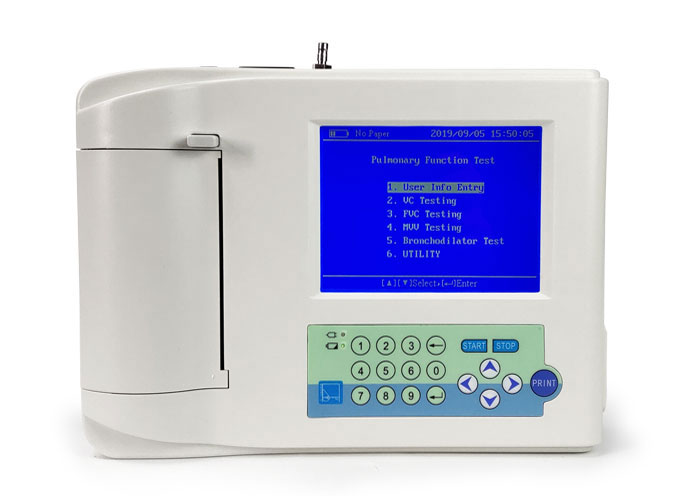

All parameters can be displayed on large screen(320 x 240)
Built-in memory can store maximum 300 cases of patient measurement results
The instrument can calibrate automatically all English operation more convenient to operate

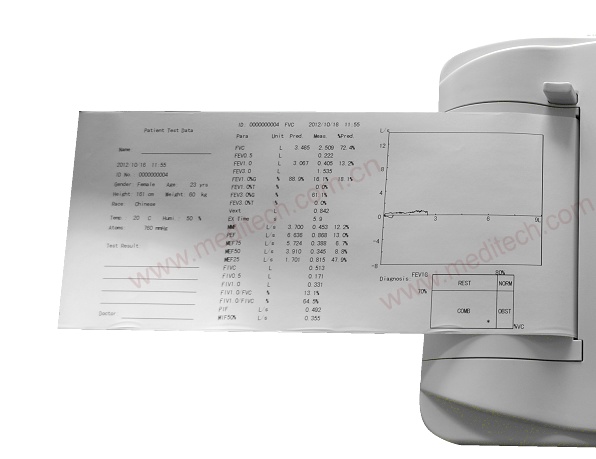

110mm thermal printer built-in can print out a clear clinical report predicted value measured value
110mm thermal printer built-in can print out a clear clinical report predicted value measured value

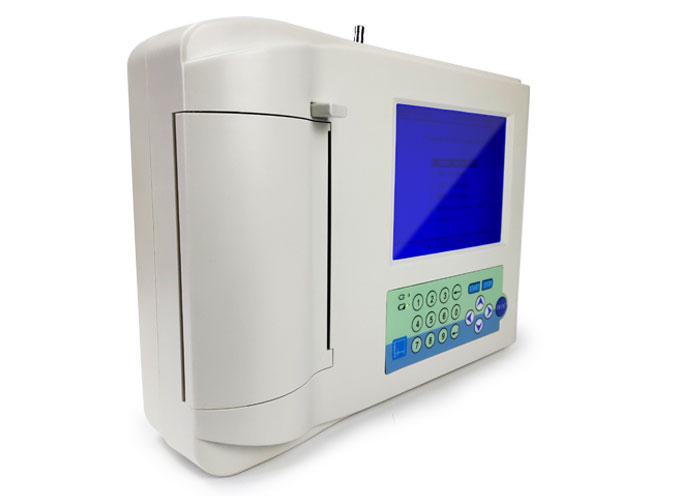

Compact and flexible
