Oxima®3
Oxima®3

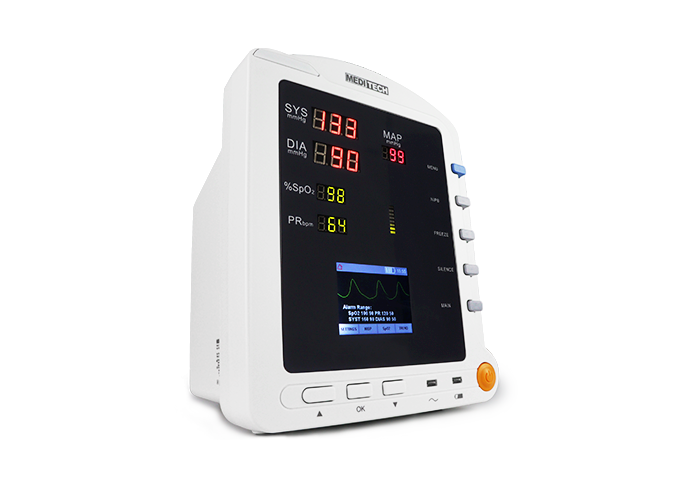

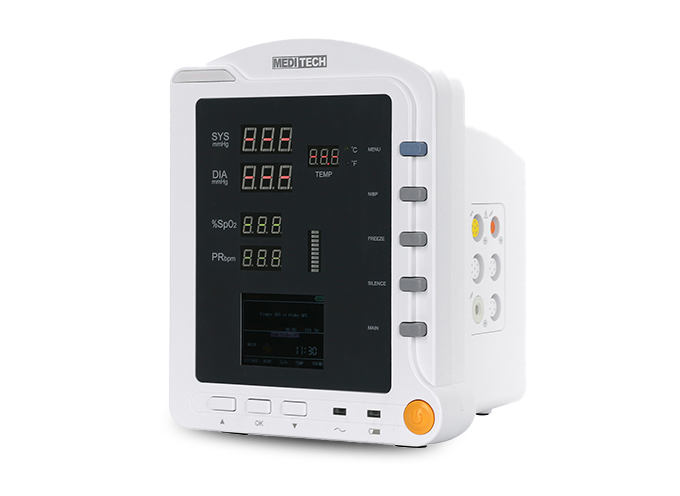

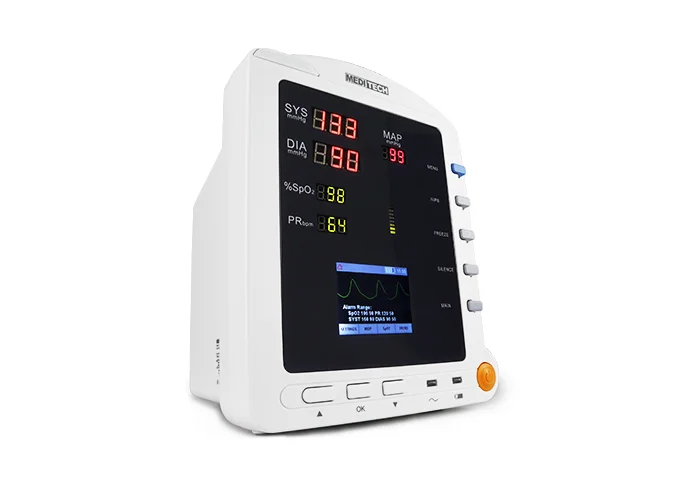

Vital signs patient Monitor

It can be applied in the hospital's operation room ICU clinic section office
Out-patient department sickroom and emergency treatment.
Oxima®3
Vital signs patient Monitor

It can be applied in the hospital's operation room ICU clinic section office
Out-patient department sickroom and emergency treatment.
Read More
Efficient performance
Easy to use
Four parameters: NIBP. SpO2, PR, TEMP
Suitable for adults, pediatricians and newborns
Battery capacity display and low battery warning message
Large screen: SpO2 PR is displayed on the screen LED
Plethys waveform is displayed on the 2.8 inch color screen in real time
24 hours or AC and built in rechargeable
Li-ion battery with up to 6 hours of operating time
Storage/viewing of trend data up to 3888 group data storage time interval adjustable
Automatic shutdown for energy saving Shutdown time interval adjustable
Acoustic and optical alarm when parameters are exceeded and sensor is switched off

Option:
Thermal Printer

Oxima® 3 Vital signs monitor three parameters: NIBP,SpO2 and TEMP

NIBP:
Measurement method: Oscillometric
Range: Adult: 30mmHg~255mmHg Pediatric: 30mmHg~160mmHg
Unit of measurement: MmHg/kPa selectable
Measurement mode: Manual Auto STAT
Type of measurement: SYS DIA MAP
Measuring interval in AUTO mode : 1 2 3 5 10 15 20 30 45 60min
Measuring time in mode STAT: 5 min
Resolution: 1mmHg
Overpressure protection: Adult: 300mmHg Pediatric: 220mmHg

SpO2:
Range: 0 -100%
Resolution: 1%
Accuracy: 2% (90~99%) 3% (70~89%) unspecified (< 70%)

PR:
Range: 30bpm~250bpm
Resolution: 1bpm
Accuracy: 2bpm

TEMPERATURE
Channel 2
Measuring and alarm range 0 ~ 50 °C
Resolution 0,1°C
Accuracy ±0,1°C
Update interval approx. 1 sec.
Average time constant < 10 sec.

Power requirements:
AC power adapter
Input: AC 100~240V 50/60Hz 0.7A
Output: 5V 2.5A
Internal battery
Type: 2.8A built-in Li-ion battery
Operating time: 6 hours stand-by time when battery is full.
Recharge time: 8 hours

Dimensions of the device: 210mm × 188mm × 107mm
Net weight: 1000g

Standard:

SpO2 Cable (Adult)   ........ 1Pcs
NIBP Cuff (Adult)   ............ 1Pcs
NIBP Tube(150cm)   ......... 1Pcs
Temp sensor.......................1pcs
Power Adapter .................. 1Pcs
Cleaning Cloth .................. 1Pcs

Options:

NIBP Cuff (infant 8 - 14 cm 5/Bag)


Product Features

    Efficient performance
    Easy to use
    Four parameters: NIBP. SpO2, PR, TEMP
    Suitable for adults, pediatricians and newborns
    Battery capacity display and low battery warning message
    Large screen: SpO2 PR is displayed on the screen LED
    Plethys waveform is displayed on the 2.8 inch color screen in real time
    24 hours or AC and built in rechargeable
    Li-ion battery with up to 6 hours of operating time
    Storage/viewing of trend data up to 3888 group data storage time interval adjustable
    Automatic shutdown for energy saving Shutdown time interval adjustable
    Acoustic and optical alarm when parameters are exceeded and sensor is switched off

    Option:
    Thermal Printer


Product Specifications

    Oxima® 3 Vital signs monitor three parameters: NIBP,SpO2 and TEMP

    NIBP:
Measurement method: Oscillometric
Range: Adult: 30mmHg~255mmHg Pediatric: 30mmHg~160mmHg
Unit of measurement: MmHg/kPa selectable
Measurement mode: Manual Auto STAT
Type of measurement: SYS DIA MAP
Measuring interval in AUTO mode : 1 2 3 5 10 15 20 30 45 60min
Measuring time in mode STAT: 5 min
Resolution: 1mmHg
Overpressure protection: Adult: 300mmHg Pediatric: 220mmHg

SpO2:
Range: 0 -100%
Resolution: 1%
Accuracy: 2% (90~99%) 3% (70~89%) unspecified (< 70%)

PR:
Range: 30bpm~250bpm
Resolution: 1bpm
Accuracy: 2bpm

TEMPERATURE
Channel 2
Measuring and alarm range 0 ~ 50 °C
Resolution 0,1°C
Accuracy ±0,1°C
Update interval approx. 1 sec.
Average time constant < 10 sec.

Power requirements:
AC power adapter
Input: AC 100~240V 50/60Hz 0.7A
Output: 5V 2.5A
Internal battery
Type: 2.8A built-in Li-ion battery
Operating time: 6 hours stand-by time when battery is full.
Recharge time: 8 hours

Dimensions of the device: 210mm × 188mm × 107mm
Net weight: 1000g
