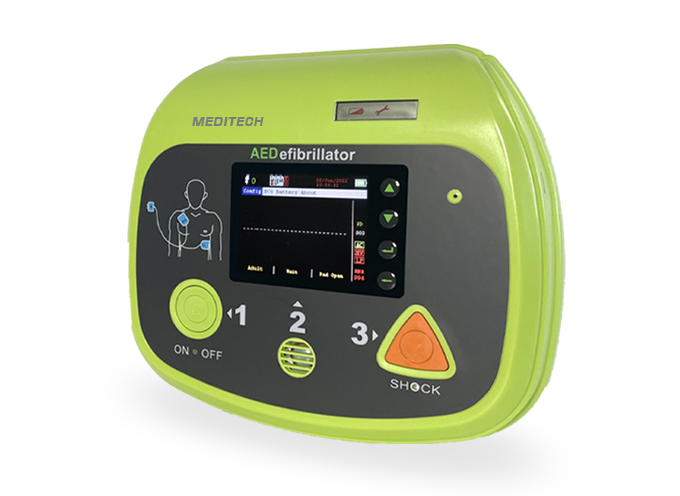

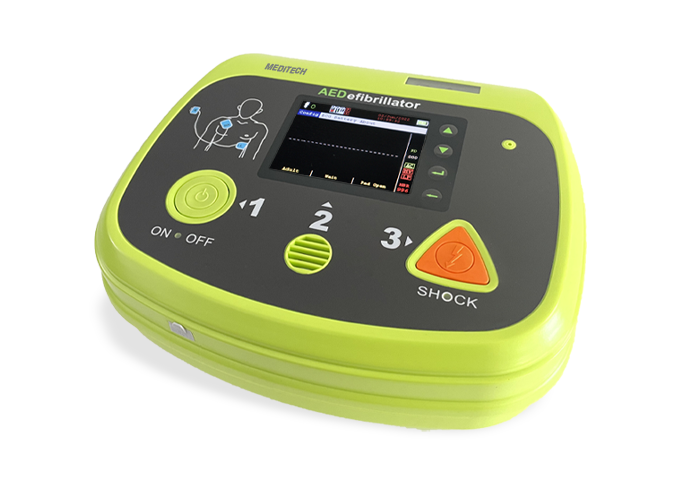

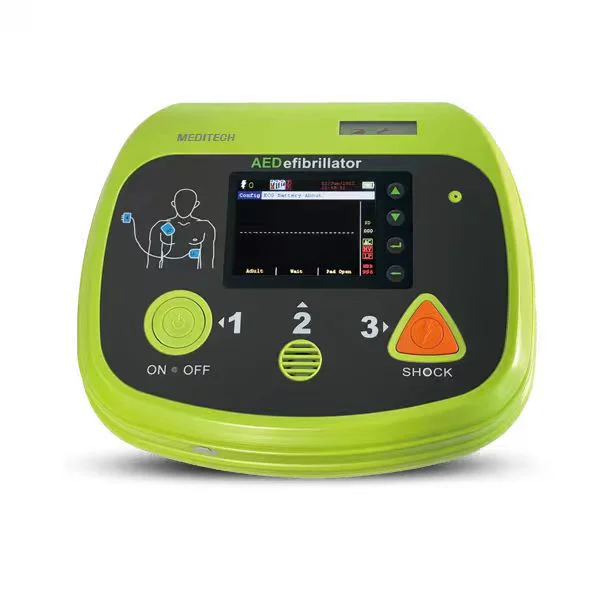

Defi® 6 AED Defibrillator with ECG monitor
Portable AED that can be used at home, in public places or in hospitals.
It's easy and convenient to use when giving first aid to the patient.
Meditech Defi6 has the function of automatically analyzing the patient's ECG data and then selecting the appropriate defibrillation energy according to the patient's current situation, which greatly improves the success rate and maximally reduces the damage to the patient's heart.
It's easy and convenient to use when giving first aid to the patient.
Meditech Defi6 has the function of automatically analyzing the patient's ECG data and then selecting the appropriate defibrillation energy according to the patient's current situation, which greatly improves the success rate and maximally reduces the damage to the patient's heart.
Output: biphasic truncated exponential curve
Screen: 3.5 inch, high resolution, displays the heart waveform
Energy sequence adult: 150. 150. 200J (default)
150. 200. 200J
200. 200. 200J
Energy Sequence (Pediatric): 50. 70. 85J (default)
70. 70. 85J
70. 85. 85J
85. 85. 85J
Recharge time: Less than 10 sec. to 200J
Analysis time: 9 seconds
Less than 30 seconds is the maximum time from the initiation of rhythm
analysis to readiness for maximum energy discharge after 15 shocks
Less than 35 seconds is the maximum time from instrument
power up to readiness for maximum energy discharge after 15 shocks
Audible prompts 19 audible prompts
Controls: six buttons on/off, shock and 4 software configurable buttons
that can be configured
Output energy accuracy: ±15% at any impedance from 25 to 175Ω
Large capacity for ECG recording
Data transmission: Infrared
Screen: 3.5 inch, high resolution, displays the heart waveform
Energy sequence adult: 150. 150. 200J (default)
150. 200. 200J
200. 200. 200J
Energy Sequence (Pediatric): 50. 70. 85J (default)
70. 70. 85J
70. 85. 85J
85. 85. 85J
Recharge time: Less than 10 sec. to 200J
Analysis time: 9 seconds
Less than 30 seconds is the maximum time from the initiation of rhythm
analysis to readiness for maximum energy discharge after 15 shocks
Less than 35 seconds is the maximum time from instrument
power up to readiness for maximum energy discharge after 15 shocks
Audible prompts 19 audible prompts
Controls: six buttons on/off, shock and 4 software configurable buttons
that can be configured
Output energy accuracy: ±15% at any impedance from 25 to 175Ω
Large capacity for ECG recording
Data transmission: Infrared

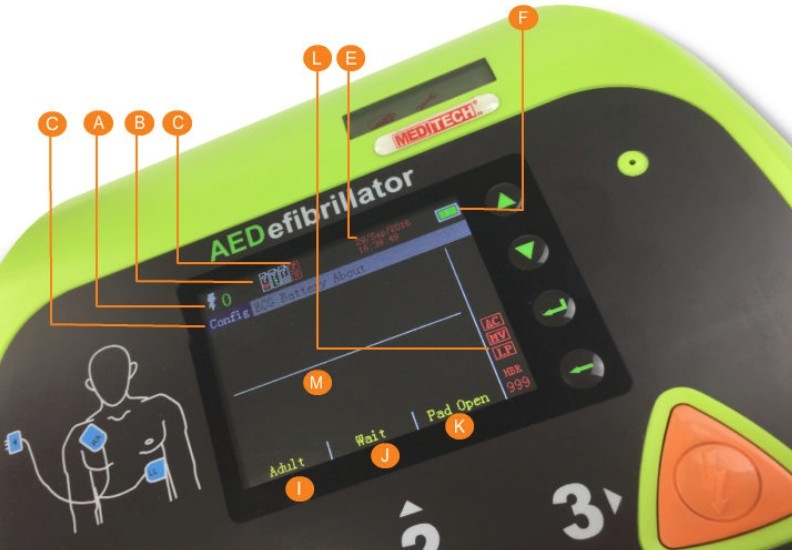

A Defibrillation counter
B SD card
C Pressure sensor icon
E Date and time
F Battery
H Pressure sensor intensity barB SD card
C Pressure sensor icon
E Date and time
F Battery
I User mode
J System status
K Pad status
L:Filter status
M Ecg waveform area
AED PC software (option)
It is used to support the upper monitoring system of the Automated External Defibrillator DEFI and supports the transfer of memory data from the lower control system of DEFI. It is used for event documentation, real-time ECG display, voice prompt display, and selected waveform printing.
Output: Biphasic Truncated Exponential
Energy sequence: 150J 200J(adult); 50J 100J(paediatric)
Charge time: 8 sec to 150J; 4 sec to 50J/ 100J; 10 sec to 200J (new battery)
Analysis time: 9 sec
Audible prompts: 20 audible prompts
Visual prompts: LED automatic self test
Controls: two buttons - on/off shock
Output energy accuracy: more or less 15% at any impedance from 25 to 175 Ω
Output disabled when patient impedance is outside of 20 Ω to 200 Ω
Defi®6 Battery
Non-rechargeable: 15V d.c 2.8Ah
Capacity: 100 discharges at 200 joules or 120 discharges at 150 joules
Shelf life (25 ℃±15℃): 10 years (5 years storage+5 years standby); 5 years standby (after installation)
Defi®6 AED Portable Defibrillator Physical Data
Dimensions: 220*170*70mm
Weight: 1.5kg
Operating humidity: Relative humidity between 30% and 95% (non-condensing)
Storage temperature (with battery): -20 ℃ to 55 ℃
Storage humidity (without battery): up to 93% (non-condensing)
Energy sequence: 150J 200J(adult); 50J 100J(paediatric)
Charge time: 8 sec to 150J; 4 sec to 50J/ 100J; 10 sec to 200J (new battery)
Analysis time: 9 sec
Audible prompts: 20 audible prompts
Visual prompts: LED automatic self test
Controls: two buttons - on/off shock
Output energy accuracy: more or less 15% at any impedance from 25 to 175 Ω
Output disabled when patient impedance is outside of 20 Ω to 200 Ω
Defi®6 Battery
Non-rechargeable: 15V d.c 2.8Ah
Capacity: 100 discharges at 200 joules or 120 discharges at 150 joules
Shelf life (25 ℃±15℃): 10 years (5 years storage+5 years standby); 5 years standby (after installation)
Defi®6 AED Portable Defibrillator Physical Data
Dimensions: 220*170*70mm
Weight: 1.5kg
Operating humidity: Relative humidity between 30% and 95% (non-condensing)
Storage temperature (with battery): -20 ℃ to 55 ℃
Storage humidity (without battery): up to 93% (non-condensing)
Standard:
AED Pad .................... 1Pcs
Battery ...........................1Pcs

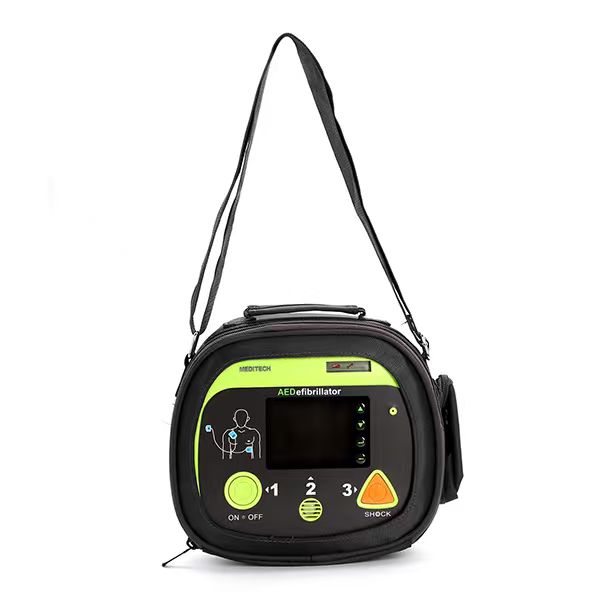

AED Case ...................... 1Pcs
Cleaning Cloth ................1Pcs
Options:

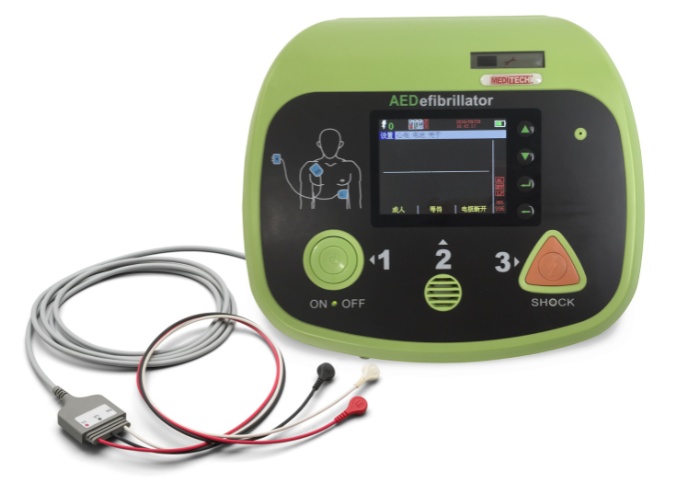

ECG Cable "3 Lead"
AED Cabinet
AED Pad .................... 1Pcs
Battery ...........................1Pcs
AED Case ...................... 1Pcs
Cleaning Cloth ................1Pcs
Options:
ECG Cable "3 Lead"
AED Cabinet
IrDA USB Adapter for ECG Data transfer
CD Software for ECG Data transferProduct Features
Output: biphasic truncated exponential curve
Screen: 3.5 inch, high resolution, displays the heart waveform
Energy sequence adult: 150. 150. 200J (default)
150. 200. 200J
200. 200. 200J
Energy Sequence (Pediatric): 50. 70. 85J (default)
70. 70. 85J
70. 85. 85J
85. 85. 85J
Recharge time: Less than 10 sec. to 200J
Analysis time: 9 seconds
Less than 30 seconds is the maximum time from the initiation of rhythm
analysis to readiness for maximum energy discharge after 15 shocks
Less than 35 seconds is the maximum time from instrument
power up to readiness for maximum energy discharge after 15 shocks
Audible prompts 19 audible prompts
Controls: six buttons on/off, shock and 4 software configurable buttons
that can be configured
Output energy accuracy: ±15% at any impedance from 25 to 175Ω
Large capacity for ECG recording
Data transmission: Infrared
Screen: 3.5 inch, high resolution, displays the heart waveform
Energy sequence adult: 150. 150. 200J (default)
150. 200. 200J
200. 200. 200J
Energy Sequence (Pediatric): 50. 70. 85J (default)
70. 70. 85J
70. 85. 85J
85. 85. 85J
Recharge time: Less than 10 sec. to 200J
Analysis time: 9 seconds
Less than 30 seconds is the maximum time from the initiation of rhythm
analysis to readiness for maximum energy discharge after 15 shocks
Less than 35 seconds is the maximum time from instrument
power up to readiness for maximum energy discharge after 15 shocks
Audible prompts 19 audible prompts
Controls: six buttons on/off, shock and 4 software configurable buttons
that can be configured
Output energy accuracy: ±15% at any impedance from 25 to 175Ω
Large capacity for ECG recording
Data transmission: Infrared
A Defibrillation counter
B SD card
C Pressure sensor icon
E Date and time
F Battery
H Pressure sensor intensity barB SD card
C Pressure sensor icon
E Date and time
F Battery
I User mode
J System status
K Pad status
L:Filter status
M Ecg waveform area
AED PC software (option)
It is used to support the upper monitoring system of the Automated External Defibrillator DEFI and supports the transfer of memory data from the lower control system of DEFI. It is used for event documentation, real-time ECG display, voice prompt display, and selected waveform printing.
