BabySonic® mini fetal doppler comes with an audio output which can be connected with headphone for simple auscultation or simple listening.
Can be connected to a recorder device to record baby's heartbeat to a CD, MP3, a PC, a cell phone or another storage medium of your choice to share the happiness with your friends and family members.

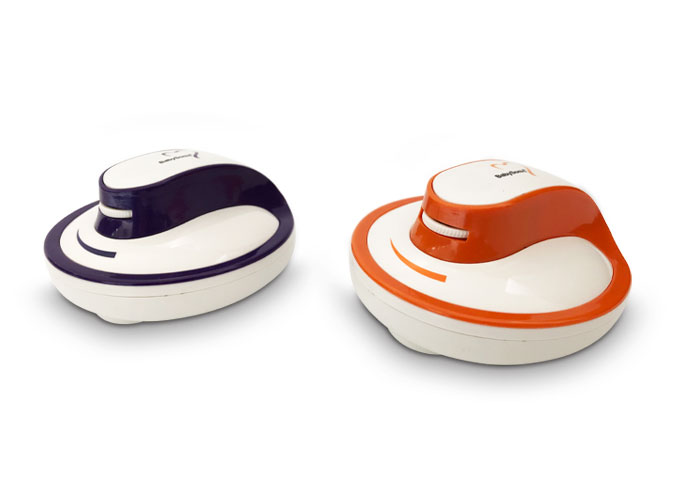

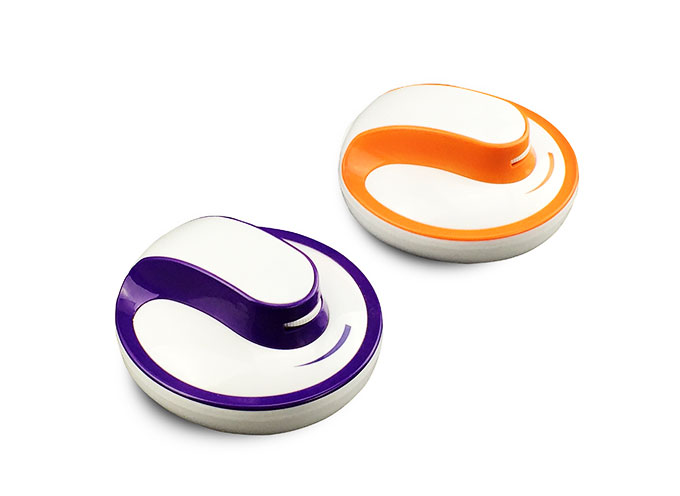

Available in "Orange" and "purple" color
Available in "Orange" and "purple" color
Listen to your unborn baby's heartbeat from the comfort of your own home
Can be used from 12 weeks into the pregnancy
Record the unborn baby's heartbeat using recording cable
Record the Mother's heartbeat and play it back to help comfort the new born baby
Conforms to EC Directive 93/42/EEC(MDD) concerning medical devices
BabySonic fetal doppler uses a 9V alkaline battery
Ultrasound:
Ultrasonic emitting frequency: 2.5MHz
Ultrasonic emitting power: <10mW/cm2
Overall sensitivity at the distances 200mm from the face of the probe
(Doppler frequency: 500±50Hz, Target velocity: 10cm/s~40cm/s):≥90dB
Spatial-peak temporal-peak acoustic pressure: ≤1MPa
Output power: <20mW
Effective area of the ultrasonic transducer active element: 2.65cm2±0.3cm
The acoustic coupling medium for normal use: ph: 5.5~8, Acoustic
impedance: ≤1.7*105g /cm2·s
Working mode: Continuous wave Doppler
Audio output:
Audio output power: <0.5 W
Audio out Socket: Φ3.5mm/USB interface
Recommended battery type:
9V DC alkaline battery (IEC Type No. 6F22 or equivalent)
Stand-by Time: >4hours
Suitable gestation: 12 gestational weeks or later, difference in pregnant mater.
Physical Characteristic:
Size: 104.5(length) * 50(width) * 70(height) mm
Weight: 60.5g (only main unit, not including battery)
Standard:
Audio stereo Cable .................. 1Pcs
Headphone ............................... 1PcsCleaning Cloth .......................... 1Pcs
Audio stereo Cable .................... 1Pcs
Options:
9V Battery
External mini Speakers
Carry Case
Audio smart device Cable (Android .iOs)
Rechargable Battery
Charger (Panasonic)
Rechargable Battery
Charger (Panasonic)
Product Features
Listen to your unborn baby's heartbeat from the comfort of your own home
Can be used from 12 weeks into the pregnancy
Record the unborn baby's heartbeat using recording cable
Record the Mother's heartbeat and play it back to help comfort the new born baby
Conforms to EC Directive 93/42/EEC(MDD) concerning medical devices
BabySonic fetal doppler uses a 9V alkaline battery
Product Specifications
