MD905

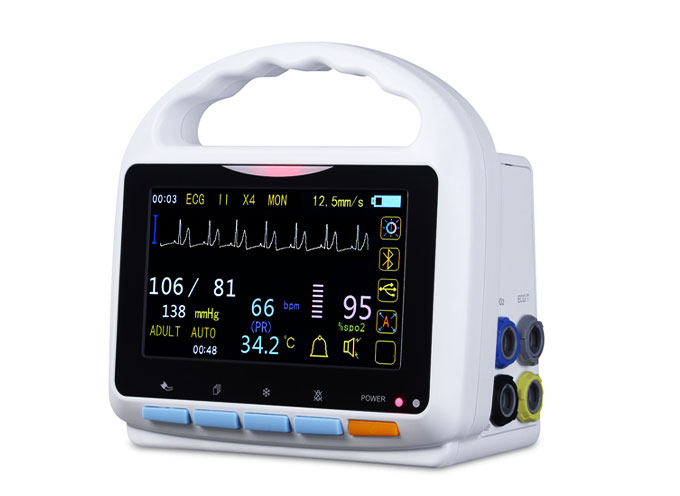

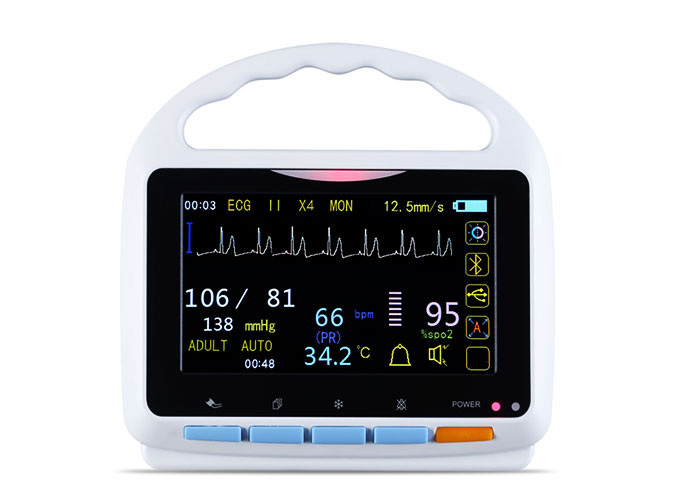

MD905 patient monitor with touch screen, 5.0 inch TFT color screen, easy operation, fast and accurate data measurement
Built-in rechargeable Li-battery, up to 15 hours operating time,
Supports AC and DC;
USB and Bluetooth data upload

MD905 patient monitor with touch screen, 5.0 inch TFT color screen, easy operation, fast and accurate data measurement
Built-in rechargeable Li-battery, up to 15 hours operating time,
Supports AC and DC;
USB and Bluetooth data upload
Read More
Portable, compact, easy to transport and operate patient monitor
Clear and bright 5.0-inch colour TFT LCD display with touch screen and real-time display
Intelligent measurement of ECG.NIBP.SpO2. PR.PLETH.TEMP
Storage/recall of trend data up to 129.6 hours and 3888 groups
Storage of ECG waveforms, each segment is 8 seconds long, 30 segments in total; NIBP, SPO2, pulse rate and TEMP Summary data sheets for up to 100 groups that can be printed via the BlueTooth printer port

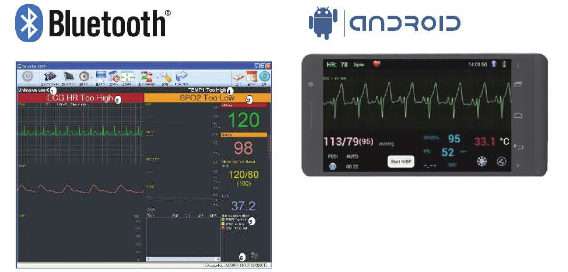

PC utility software package for long term monitoring, uploading/reviewing/printing/saving history data.
Upload history data to PC for review, storage or printing via USB data line or BlueTooth wireless connection
Audible and visual alarm
Built-in rechargeable Li-ion battery, up to 15 hours power supply
The backlight can be freely adjusted
To use the communication function, please install the data display software on the PC equipped with a printer and connect the monitor to the PC via USB cable or BlueTooth wireless connection.
Options: Bluetooth Thermal printer Bluetooth Printer
ECG
Input:3 /5-Lead ECG cable standard AAMI cable connector
Lead selection:I, II, III
Gain selection:×1, ×2, ×4, ×8
Sampling speed: 12.5 25 and 50 mm/s
Frequency response: without filter: 0.05~100Hz (-3dB)
 filter: 0.5~40Hz (-3dB)
Calibration signal: 1mV square wave
Protection: against electrosurgical interference and defibrillation

Heart rate
Measuring range: 20 bpm~300 bpm
Renewal time: 1 time per beat
Accuracy: ±1 bpm
Alarm mode: Audible and visual alarm

SpO2
SpO2%
Measuring range:0%~100%
Resolution:1%
Accuracy:±2 %(90%~99%)
 ±3 %(70%~89%)not specified (0%~69%)
Pulse Rate
Measurement and alarm range:20~300bpm
Resolution: 1bpm
Accuracy: ±1bpm

NIBP
Method: Oscillometric
Mode: Manual Auto STAT
Measuring interval in mode AUTO: 1 2 3 5 10 15 20 30 45 60 (min)
Measurement duration in mode STAT: 5 min
Cuff pressure range: 0 mmHg~300mmHg
Pulse rate range: 30 bpm~250bpm
Measurement rate: adult 30 mmHg~255mmHg
 Pediatric 30 mmHg~160mmHg
Overpressure protection:
 Adult 300mmHg
 Pediatric 220 mmHg
Pressure resolution: 1mmHg
The SYSTOLIC and DIASTOLIC measured with this device must be measured by trained medical personnel using a cuff and stethoscope.
The value measured with this device MEAN is equal to the value measured with a blood pressure monitor.

Temperature
Input: Heat sensitive resistance temperature sensor on the body surface
Measuring range: 0℃~50℃
Accuracy: ±0.1℃

Storage and verification
Maximum data quantity: 3888 groups
Maximum trend time: Continuous 129.6 hours

Power:
Rechargeable battery 1700mAh~2000mAh.7.2V.
Charging (discharging) ≧1000 times.
Charging time: 2 hours
Operation/relative humidity:0~55℃/10~80%RH
Storage operation/relative humidity:-20~60℃/10~90%RH

Power supply
AC power adapter
Input: 100~240VAC 50/60Hz 0.7A
Output: DC 5V 1.5A

Battery
Li-ion battery 3.7V/7200mAH
Operating time: 15 hours at full battery capacity.
(Condition: 25℃ NIBP working time is 15 minutes)
Recharge time: 10 hours.

Environment
Temperature
Working:0℃~45℃
Transportation and storage:-25℃~85℃
Humidity
Work:30 % ~85
Transport and storage:30 % ~95 % (no condensation)

Display specification
Measured value display: Color TFT- LCD /touchscreen
Power supply display: Two-color LED (red/green)
Charge indicator: One green LED
Size: 209mm×104mm×47.5mm
Net weight: 655g

Monitoring Parameters
Printer (optional)
Type: Thermal microprinter
Printer paper: 58mm thermal paper, roll diameter 33mm
Interface: Bluetooth wireless interface
Recording modes: real-time printing and test data printing
Standard:

ECG Cable    ................... 1Pcs
SpO2 Cable (Adult)  ........ 1Pcs
NIBP Cuff (Adult)  ............ 1Pcs
Tempreture probe  ........... 1Pcs
Power Adapter    .............. 1Pcs
Tempreture probe  ........... 1Pcs
USB Cable    .................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

NIBP Cuff (infant 8 - 14 cm 5/Bag)
Paper Role
Thermal Printer

Product Features

    Portable, compact, easy to transport and operate patient monitor
    Clear and bright 5.0-inch colour TFT LCD display with touch screen and real-time display
    Intelligent measurement of ECG.NIBP.SpO2. PR.PLETH.TEMP
    Storage/recall of trend data up to 129.6 hours and 3888 groups
    Storage of ECG waveforms, each segment is 8 seconds long, 30 segments in total; NIBP, SPO2, pulse rate and TEMP Summary data sheets for up to 100 groups that can be printed via the BlueTooth printer port
    PC utility software package for long term monitoring, uploading/reviewing/printing/saving history data.
    Upload history data to PC for review, storage or printing via USB data line or BlueTooth wireless connection
    Audible and visual alarm
    Built-in rechargeable Li-ion battery, up to 15 hours power supply
    The backlight can be freely adjusted
    To use the communication function, please install the data display software on the PC equipped with a printer and connect the monitor to the PC via USB cable or BlueTooth wireless connection.
    Options: Bluetooth Thermal printer Bluetooth Printer

Product Specifications

    ECG
    Input:3 /5-Lead ECG cable standard AAMI cable connector
    Lead selection:I, II, III
    Gain selection:×1, ×2, ×4, ×8
    Sampling speed: 12.5 25 and 50 mm/s
    Frequency response: without filter: 0.05~100Hz (-3dB)
     filter: 0.5~40Hz (-3dB)
    Calibration signal: 1mV square wave
    Protection: against electrosurgical interference and defibrillation

    Heart rate
    Measuring range: 20 bpm~300 bpm
    Renewal time: 1 time per beat
    Accuracy: ±1 bpm
    Alarm mode: Audible and visual alarm

    SpO2
    SpO2%
    Measuring range:0%~100%
    Resolution:1%
    Accuracy:±2 %(90%~99%)
     ±3 %(70%~89%)not specified (0%~69%)
    Pulse Rate
    Measurement and alarm range:20~300bpm
    Resolution: 1bpm
    Accuracy: ±1bpm

    NIBP
    Method: Oscillometric
    Mode: Manual Auto STAT
    Measuring interval in mode AUTO: 1 2 3 5 10 15 20 30 45 60 (min)
    Measurement duration in mode STAT: 5 min
    Cuff pressure range: 0 mmHg~300mmHg
    Pulse rate range: 30 bpm~250bpm
    Measurement rate: adult 30 mmHg~255mmHg
     Pediatric 30 mmHg~160mmHg
    Overpressure protection:
     Adult 300mmHg
     Pediatric 220 mmHg
    Pressure resolution: 1mmHg
    The SYSTOLIC and DIASTOLIC measured with this device must be measured by trained medical personnel using a cuff and stethoscope.
    The value measured with this device MEAN is equal to the value measured with a blood pressure monitor.

    Temperature
    Input: Heat sensitive resistance temperature sensor on the body surface
    Measuring range: 0℃~50℃
    Accuracy: ±0.1℃

    Storage and verification
    Maximum data quantity: 3888 groups
    Maximum trend time: Continuous 129.6 hours

    Power:
    Rechargeable battery 1700mAh~2000mAh.7.2V.
    Charging (discharging) ≧1000 times.
    Charging time: 2 hours
    Operation/relative humidity:0~55℃/10~80%RH
    Storage operation/relative humidity:-20~60℃/10~90%RH

    Power supply
    AC power adapter
    Input: 100~240VAC 50/60Hz 0.7A
    Output: DC 5V 1.5A

    Battery
    Li-ion battery 3.7V/7200mAH
    Operating time: 15 hours at full battery capacity.
    (Condition: 25℃ NIBP working time is 15 minutes)
    Recharge time: 10 hours.

    Environment
    Temperature
    Working:0℃~45℃
    Transportation and storage:-25℃~85℃
    Humidity
    Work:30 % ~85
    Transport and storage:30 % ~95 % (no condensation)

    Display specification
    Measured value display: Color TFT- LCD /touchscreen
    Power supply display: Two-color LED (red/green)
    Charge indicator: One green LED
    Size: 209mm×104mm×47.5mm
    Net weight: 655g

    Monitoring Parameters
    Printer (optional)
    Type: Thermal microprinter
    Printer paper: 58mm thermal paper, roll diameter 33mm
    Interface: Bluetooth wireless interface
    Recording modes: real-time printing and test data printing
