IBP-1
EXTERNAL  IBP
IBP to monitor ART, PAP, CVP, RAP, LAP, ICP and P1-P2
low-power, no extra power supply is needed, automatic digital data processing, and can repeatedly zeroing, calibration function.
EXTERNAL  IBP
IBP to monitor ART, PAP, CVP, RAP, LAP, ICP and P1-P2
low-power, no extra power supply is needed, automatic digital data processing, and can repeatedly zeroing, calibration function.
Read More

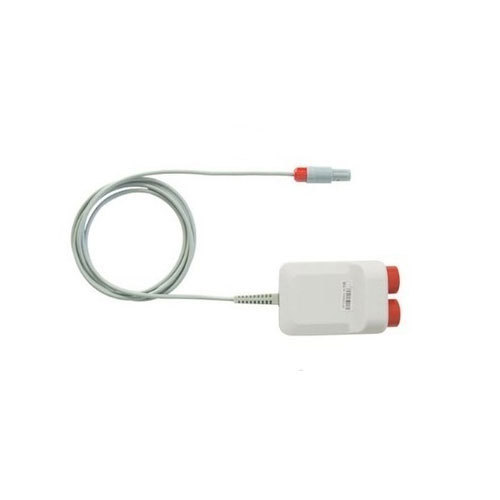

External IBP, uses PLUG & PLAY IBP TECHNOLOGY
Dual-channel measurement.
Low-power, no extra power supply is needed
Automatic digital data processing
Repeatedly zeroing, calibration function

Using for monitor:
ART:      Arterial pressure pressure
PAP:      pulmonary artery pressure
CVP:     Central venous pressure
RAP:     Left atrial pressure
LAP:      Right atrial pressure
ICP:       Intracranial pressure
P1-P2:   Expansion of the pressure



Main Board Dimension 53.1 x 40.6 x 20mm
Probe Board Dimension 45.2 x 20.6 x 10mm
Number of Channels Dual Channel
Pressure Name ART, PAP, CVP, RAP, LAP, ICP, P1, P2
Range of measurement
And alarm		 ART 0 - 300 (mmHg)
PA -6 -  120 (mmHg)
CVP/RAP/LAP/ICP -10 - 40 (mmHg)
P1/P2 -10 - 300 (mmHg)
Zero-time Every time upon measurement
Calibration Regularly or when new sensor is used
Pressure Sensor
Sensitivity 5µV/V/mmHg
Impedance range 300 - 3000  (Ohm)
Resolution 1 (mmHg)
Accuracy ±2% or ±1mmHg, whichever is bigger
Update Time About 1 second



IBP Reusable Interface Cable
IBP Disposable Transducers

Product Features

    External IBP, uses PLUG & PLAY IBP TECHNOLOGY
    Dual-channel measurement.
    Low-power, no extra power supply is needed
    Automatic digital data processing
    Repeatedly zeroing, calibration function

    Using for monitor:
    ART:      Arterial pressure pressure
    PAP:      pulmonary artery pressure
    CVP:     Central venous pressure
    RAP:     Left atrial pressure
    LAP:      Right atrial pressure
    ICP:       Intracranial pressure
    P1-P2:   Expansion of the pressure

Product Specifications



    Main Board Dimension 53.1 x 40.6 x 20mm
    Probe Board Dimension 45.2 x 20.6 x 10mm
    Number of Channels Dual Channel
    Pressure Name ART, PAP, CVP, RAP, LAP, ICP, P1, P2
    Range of measurement
    And alarm    		 ART 0 - 300 (mmHg)
    PA -6 -  120 (mmHg)
    CVP/RAP/LAP/ICP -10 - 40 (mmHg)
    P1/P2 -10 - 300 (mmHg)
    Zero-time Every time upon measurement
    Calibration Regularly or when new sensor is used
    Pressure Sensor
    Sensitivity 5µV/V/mmHg
    Impedance range 300 - 3000  (Ohm)
    Resolution 1 (mmHg)
    Accuracy ±2% or ±1mmHg, whichever is bigger
    Update Time About 1 second
