Product Features

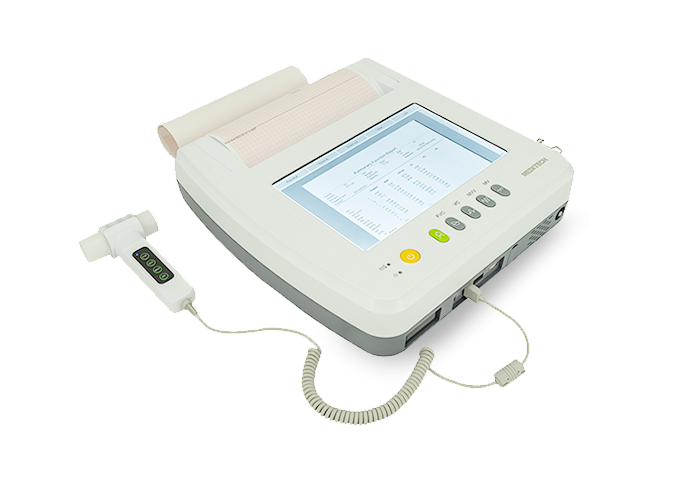

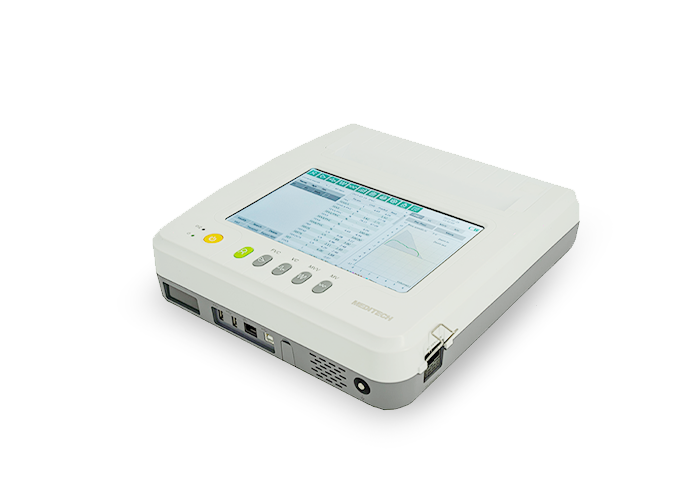

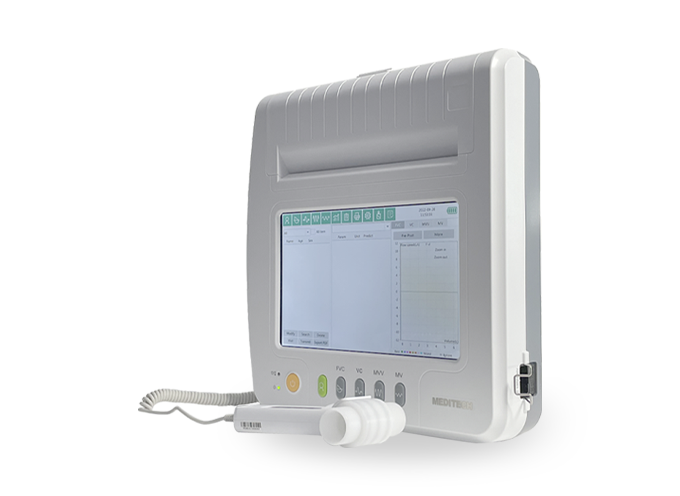

The Meditech Spirometer iBreathe is a state-of-the-art, portable medical device designed for a wide range of pulmonary function tests. Employing a highly accurate differential pressure acquisition principle, this desktop spirometer is capable of measuring and analyzing over 100 parameters related to key respiratory functions, including FVC, VC, MVV, and MV. Its robust features and user-centric design make it a versatile tool for various clinical and non-clinical environments





• Advanced Measurement Capability: Utilizes differential pressure detection technology and professional lung function software to measure over 100 parameters related to FVC, VC, MVV, and MV functions. It can measure both inspiratory and expiratory parameters.

• Real-Time Data Visualization: Displays real-time respiratory waveforms, including Flow-Volume and Volume-Time curves, which are essential for visual analysis and diagnosis.

• BTPS Automatic Correction: Ensures measurement accuracy by automatically measuring and correcting for environmental variables such as temperature, humidity, and barometric pressure.

• Quality Control & Calibration: Features a quality control function with automatic QC evaluation. It also has a calibration control function, including volume calibration and a check of three flows, to maintain device accuracy and reliability.

• Optimal Result Display: Displays the optimum value from multiple measurements, simplifying the reporting process for healthcare professionals.

• Professional Assessment: The device can reflect a patient's condition by providing the ratio between the measured value and the predicted value. It also supports bronchial dilation and provocation tests and provides a comprehensive pulmonary function assessment.

• Data Management & Connectivity:

  • Patient Records: Patient information can be entered, managed, and queried, along with the ability to handle follow-up questionnaires.

  • Memory: Includes functions for saving, deleting, and reviewing data, as well as displaying trend graphs.

  • Wireless: Equipped with a Wi-Fi function for seamless data transfer.

• User-Friendly Interface:

  • Display: Features a large 10.1-inch capacitive touch screen for a clear and intuitive user experience.

  • Alerts: Provides display functions for volume and flow violations.

  • Power: Powered by a rechargeable lithium battery with a charge indicator and a battery performance display.

• Reporting:

  • A test report can be printed and output via the built-in 210-mm thermal printer.

  • An external printer can be connected for printing and outputting test reports.

Product Specifications



Measurement Principle	Differential pressure acquisition
Display	10.1" color capacitive touch screen LCD
Display Resolution	$1280\times 800$ pixels
Volume Measurement Range	0 L to 10 L (BTPS)
Volume Measurement Accuracy	$\pm 3\%$ or $\pm 0.05$ L (whichever is greater)
Flow Measurement Range	0 L/s to 16 L/s (BTPS)
Flow Measurement Accuracy	$\pm 5\%$ or $\pm 0.17$ L/s (whichever is greater)
Power Supply	DC 14.8 V rechargeable lithium battery or AC 220 V, 50 Hz
Power Consumption	P $\le$ 150 V·A
Safety Type	Class I, Type BF applied part
Dimensions	340 mm (L) $\times$ 320 mm (W) $\times$ 86 mm (H)
Weight	Approximately 4 kg
Data Storage	Over 10,000 groups of data
Printer	Built-in 210 mm thermal printer
Connectivity	Wi-Fi, support for external printers
Test Types	FVC, VC/SVC, MVV, MV, Bronchial dilation/provocation
Correction	BTPS automatic correction

Related Accessories

Standards:

Ground Wire  .......................... 1Pcs
paper roll  ................................1Pcs
Power cable  .......................... 1Pcs
Nose Clip ................................1pcs
USB Cable  .............................1pcs
Cleaning Cloth  ...................... 1Pcs
