Product Features

17" LCD, high brightness, high resolution, wide view angle
iSonic®  Wide band multi frequency ,Imaging Processing ,Imaging optimization
195 elements, ZIP260 connector
Hard Disk (500G),
Control panel (exclude touch pad)
Operating Mode:  2B, 4B, B/M, M, B/C, B/C/D, B/D, PW, velocity,
power (direction), histogram, Triplex/Duplex


Imaging Processing Technology Imaging optimization technology Compound enhance technology Speckle reduction Multi beam parallel processing technology Color coding Doppler frame correlation Wall filter Tissue Harmonic

File management Hard disk storage Cine loop DVD-ROM USB RS232 DICOM 3.0 Intranet Parallel printing port

Imaging Modes

Overview
B, Dual B, Quad B, M
Color, Dual Color
Simultaneous 2D/Color Compound
PW, Duplex/Triplex
CFM, PD, Directional PD, CD
Freehand 3D
4D
Panoramic

Measurements Specifications
Obstetrical Report
Amniotic Fluid Index (AFI)
BPD/OFD, FL/AC, FL/BPD and HC/AC ratio
Estimate Weight Of Fetus
Gestational Age
Expected Date Of Confinement (LMP/BBT)
Fetal Biophysical Score
Fetus Growth Curve

Gynecology
Uterus, Ovary, Follicle
Gynecology Report

Urology
Kidney, Bladder, Residual Urine Volume
Urology Report

Andrology
Prostate, Testis
Prostate Specific Antigen (PSA)
Prostate Specific Antigen Density (PSAD)
Andrology report

Orthopedic
Left and Right Hip Joint

Peripheral Vascular
Area Stenosis
Vessel Diameter Stenosis
Peripheral Vascular Report

Small Parts
Thyroid, Mammary Gland, Nodule
Small Parts Report

Multiple Births
Measurement Of Multiple Births

Cardiac
Heart Rate
Blood Flow Rate
Left Ventricle
Aorta
Mitral Valve
Ventricle (left/right)
Area Stenosis (% area Sten)
Vascular Diameter Stenosis (% Diam Sten)
Body Surface Area (BSA)


Comes with
Mobile trolley
Multi frequency convex probe

Optional modules
CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
Smart3D module (for 3 dimensions with 2D standard convex probe)
“iScape View” module
DICOM 3.0 module

Optional probes
Micro-convex array Transvaginal probe
Micro-convex probe
Linear probe
Intdo rectal linear probe
Phased array probe 2P2 (for cardiac applies)

Optional Accessories
Footswitch by USB port
Biopsy guide for convex probe
Biopsy guide for micro-convex probe
Biopsy guide for linear probe
Biopsy guide for micro-convex TV probe
Biopsy guide for intrarectal linear probe


Product Specifications

Software Specifications:

Languages
English, Russian, Spanish, Polish, Turkish, Vietnamese, Simplified Chinese

User Interface Cine Playback Multiple Arrows
Configurable Worksheets
Exam Review :Pictograms (Body Marks) System Setup Menu Programmable Annotations

Max Onscreen Measurements
                        Distance:       27
                        Area:              3

Measurement Tools
B-Mode
Distance:         Point to Point Angle:
Vector Angle Area/Perimeter:     Ellipse, Trace Volume Three – Axis
M-Mode Time Distance Heart Rate
Valve Velocity

Doppler-Mode
                        Velocity
                        Time
                        Heart Rate
                        Acceleration
Common Measurement: PS, ED, TAMAX, RI, PPG Trace:     PS, ED, TAMAX, RI, PPG

Imaging Modes

Overview

B, Dual B, Quad B, M Color, Dual Color
Simultaneous 2D/Color Compound
PW, Duplex/Triplex
CFM, PD, Directional PD, CD Freehand 3D
4D Panoramic

Combined Modes

Dual B, Quad B, B/M, B B/CB/C/PW

B-Mode

Maps:                              17
Focus Count:                  Max. 4
Gain:                               0~255
TGC:                               8
Sliders Dynamic Range: 0~150dB
Depth:                             Max. 30cm
Acoustic Power:             0 ~ (-15) dB
Chroma:                         0~7
Grayscale Levels:          256
Frame Rate:                   Max.100Hz
Max. Line Density:         512
Persistence/ Frame Average: Up to 7
Top/Bottom/Left/Right Reverse
Speckle Reduction

M-Mode

Maps:                                16
Chroma:                            16
Sweep Speed:                   3
Gain:                                  0~255
Distance:                           Point-to-Point
Max Steer Angle:              15°
Diameter Reduction:          Point-to-Point
Heart Rate/Time/Distance/Slope
Side-by-Side/Bottom

Color Mode

Gain:                                  0~255
Color Maps:                       0~6
Doppler Steer Angles:       5 Steps
PRF:                                  1.8 kHz~13.2 kHz
Wall Filter:                          0~3
Max. Steer Angle:              ±10°
Doppler Multi-Frequency:  2MHz~10MHz
Priority:                              0~250
Line Density Max:             256 Lines
Persistence/Frame Average: 0~7
Baseline/Invert/Color ROI/M-Mode

PW Mode

Gain:                                   0~255
Sweep Speed:                    5
Doppler Steer Angles:        5 Steps
Maps:                                  3
Max Steer Angle:               ±10° Spectrum Filter (Edge):     0~3
Audio:                                 0~255
Correction Angle:               80°/-80°
Doppler Multi-Frequency:  2MHz~10MHz
Chroma:                             0~7


Hardware Specifications:


LCD Monitor Size (Diagonal):	15 inch	Transducers	4D Volume Probe Frequency: Central 4.0 MHz
Contrast Ratio: Resolution: Brightness: Color Depth: Rotate Angle: Grey Levels:	800:1 1024×768 pixels 230 cd/m2 24bit ± 90° 256	Convex Array Probe Frequency: Central 3.5 MHz Min. 2.0 MHz Max. 5.5 MHz Pitch:                  0.516 mm Radius:              60 mm	Min. 2.0 MHz   Max. 5.5 MHz   Made by NDK Japan

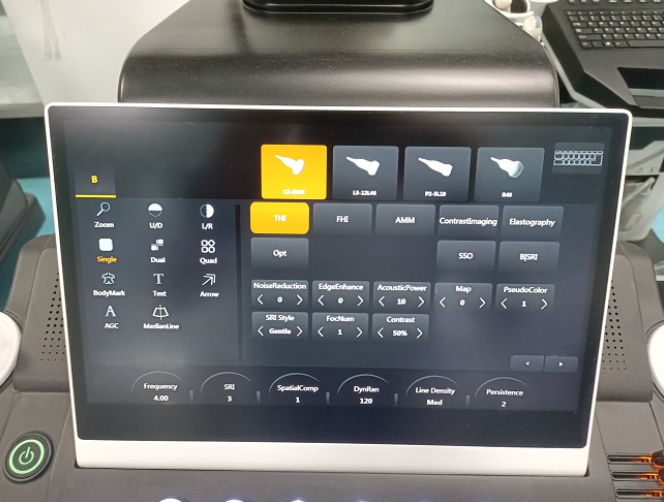

Touch Screen Size (Diagonal):	10”	Linear Array Probe:
Contrast Ratio: Resolution: Brightness: Grey Levels: Input Signal:	600:1 800×600 pixels 250 cd/m2 64 DVI	Frequency: Central 7.5 MHz Min. 6.0 MHz Max. 12.0 MHz Pitch:              0.352 mm Radius:          N/A


Embedded Computer
CPU:     Intel E4300 (Minimum)
Hard Drive (Patient) Data:     ≥ 500 GB
Embedded Speakers Impedance:  4Ω
Power: 5 W
UPS (Optional)


Related Accessories

Standard:


Mobile trolley
Multi frequency convex probe ...... 1Pcs
Power Cable  ............................... 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:


CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
Smart 3D module (for 3 dimensions with 2D standard convex probe)
“iScape View” module
DICOM 3.0 module
Foot switch by USB port

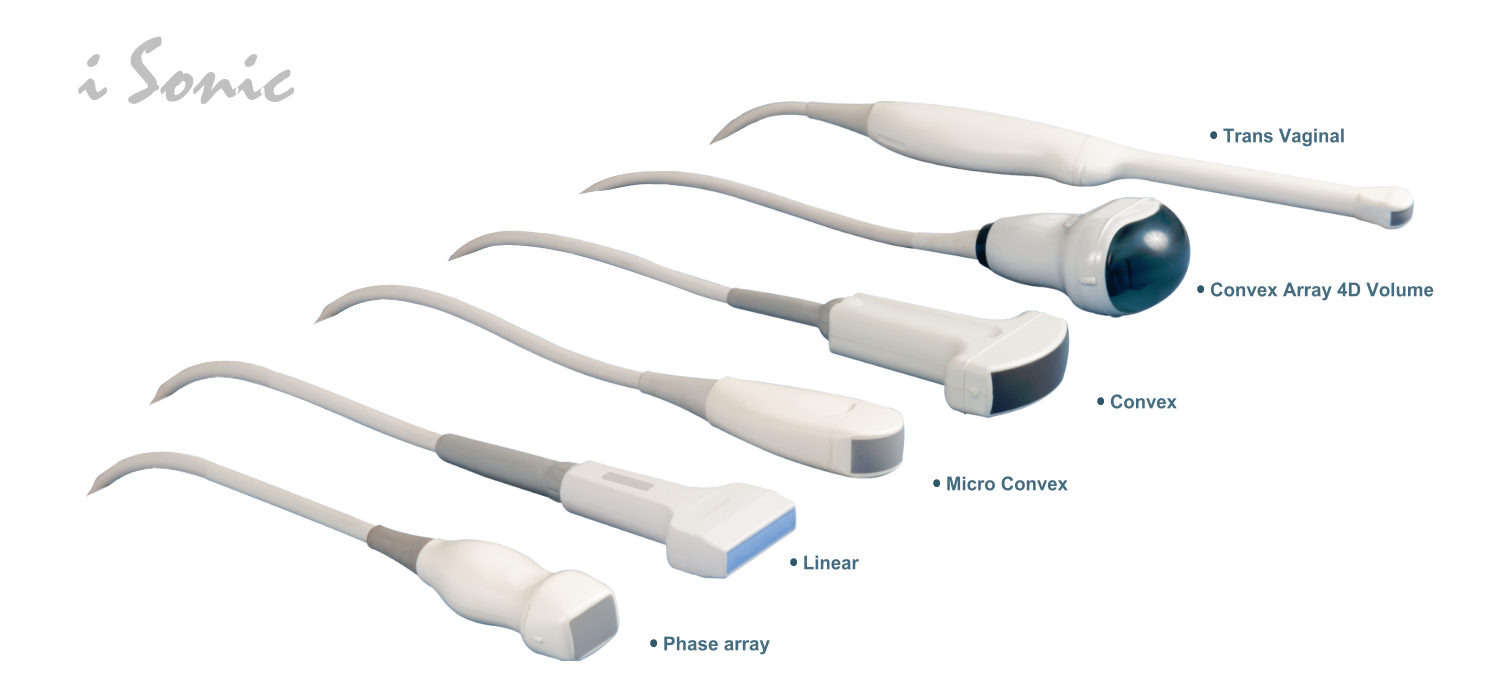

Probes:
Micro-convex array Transvaginal Probe
Micro-convex Probe
Linear Probe
Volume Probe
Indo rectal linear probe

Phased array probe 2P2 (for cardiac applies)




Biopsy guide:
Biopsy guide for convex probe
Biopsy guide for micro-convex probe
Biopsy guide for linear probe
Biopsy guide for micro-convex TV probe
Biopsy guide for intrarectal linear probe

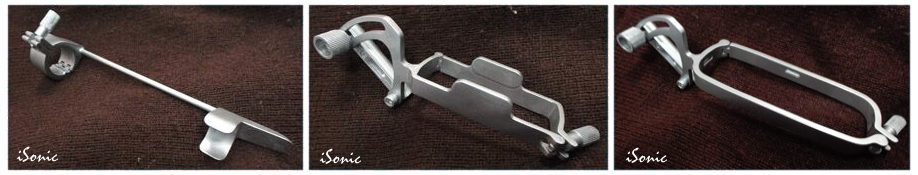

iSonic®  reusable needle guide offers surgeons free angle for needle insertion.
A easy-to-learn quick-release allows easy detachment of the device from the transducer providing physicians increased flexibility during procedures.

Needle separable from guide.
3-5 years lifespan.
Autoclave sterilization, low temperature plasma disinfection, ethylene oxide gas disinfection.

Product Advantage
Angle Type： Free-Angle
Available Angle：Free angle
