Cardios (Table Type)
Cardios (Table Type)  features advanced technology, high functionality, ease of use and unbeatable value for money.

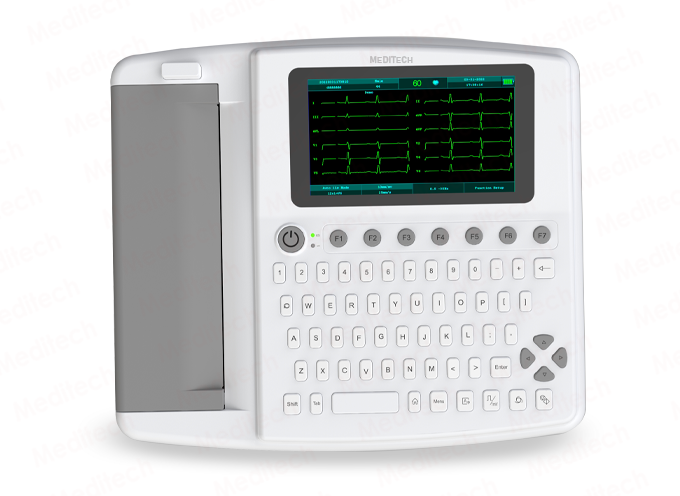

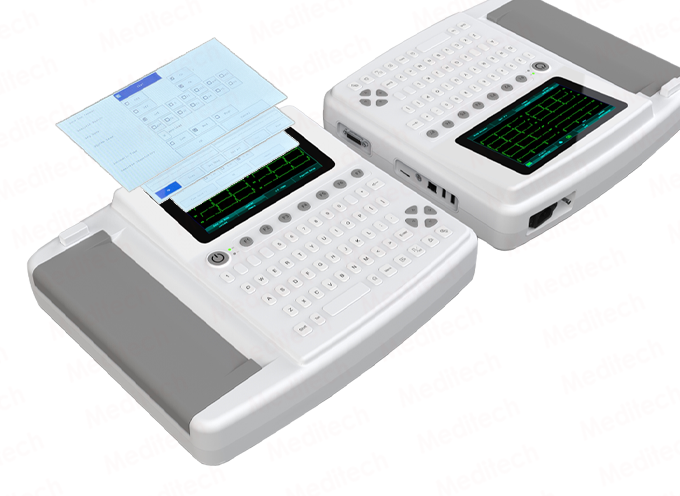

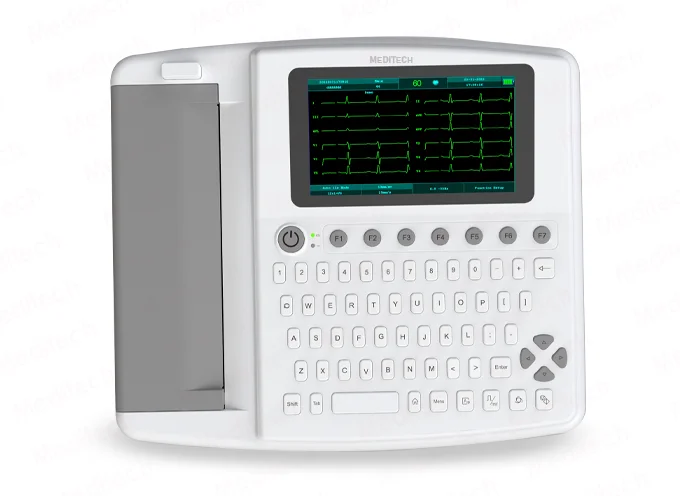

Reliable, interpretable touch screen electrocardiograph (ECG/EKG). It features a large 7” TFT LCD touchscreen.
Supports USB flash drive, one have fantastic keypad for easy to use and easy type patient data
Cardios (Table Type)  features advanced technology, high functionality, ease of use and unbeatable value for money.
Reliable, interpretable touch screen electrocardiograph (ECG/EKG). It features a large 7” TFT LCD touchscreen.
Supports USB flash drive, one have fantastic keypad for easy to use and easy type patient data
Read More
7 inch high resolution color touch screen
Full alphanumeric keyboard with shortcut keys, efficient in operation
Simultaneous acquisition and display of 12 ECG leads
Automatic ECG measurement and interpretation
Internal memory for up to 1000 cases, convenient for case reviews and statistics
Built in high capacity rechargeable lithium battery

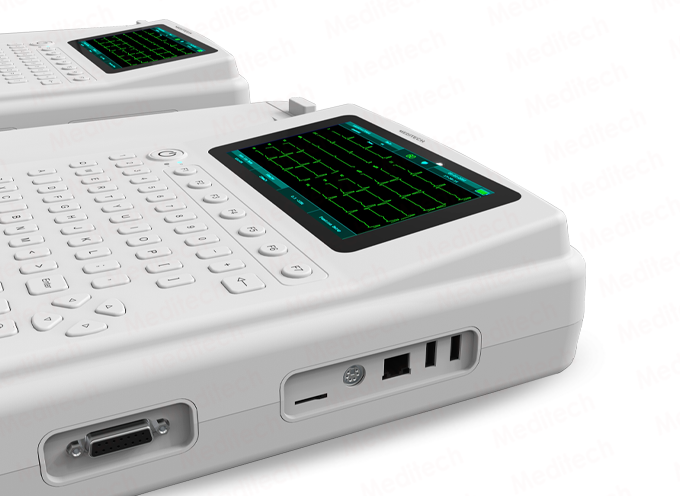

ECG data can be transferred via USB to PC
ECG reports can be saved and opened via ECG replay software on PC
Optional PC software CardioSoft pro for data transfer (save, review, print a report)

Leads: Standard 12 Lieads
Patient leakage current: < 10μA
Input impedance: ≥5MΩ
Frequency response: 1Hz~75Hz
Time constant: Time constant > 3.2s
CMRR: >60dB
EMG noise filter: 25/35Hz(-3dB)
Recording method: thermal array printing system
Recording paper specification:
Paper speed:
Automatic recording: 25mm/s 50mm/s Error:±5%
Rhythmic recording: 25mm/s 50mm/s Error:±5%
Manual recording: 5 mm/s 6.25 mm/s 10 mms10mm/s 12.5 mm/s 25 mm/s 50 mm/s Error:±5%.
Sensitivity selection: 2.55102040mm/mV 5 options Error:±5%. The default sensitivity is 10mm/mV±0.2mm/mV.
Automatic recording: set up recording according to recording format and automatic mode with automatic change of line measurement and analysis.
Manual recording: set up recording according to recording format with manual change of measurement lines.
Measurement parameters: HR P-R interval P duration QRS duration T duration Q-T interval Q-Tc P axis QRS axis T axis R(V5) S(V1) R(V5)+S(V1)
Product safety type: class I type CF Defibrillation safe applied part.
Continuous polarization voltage: ±300mV
Noise level: ≤15μVp-p
Fuse specification: 2 pieces φ5×20mm AC slow-blow; T1.6A/250V(220V power supply)

Operation
a) Ambient temperature: +5℃~+35℃
b) Relative humidity: ≤80%

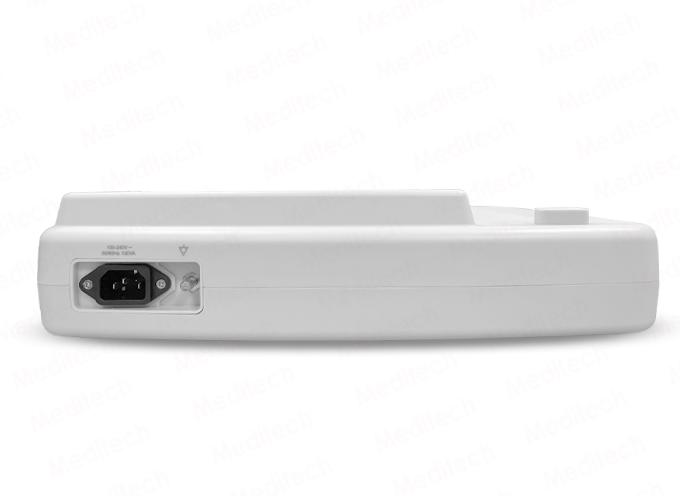

c) Power supply: AC:100~240V50/60Hz
 DC:7.4V 3700 mAh rechargeable lithium battery
d) Atmospheric pressure: 86kPa~106kPa

Transportation and storage
a) Ambient temperature: -10℃~55℃
b) Relative humidity: ≤95%
c) Atmospheric pressure: 50kPa~106kPa
Input type: floating and defibrillation protection

Standard:

Chest Electrode       ......... 6Pcs
Clamp Electrode    ........... 4Pcs
EKG Cable       ................. 1Pcs
Ground Wire    .................. 1Pcs
Paper Role  ...................... 1Pcs
Power cable  .................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

Case
USB Cable + CD "CardioSoft pro"
Thermal Paper
ECG Trolley
PC(Computer)accessories
Printer accessories

Product Features

    7 inch high resolution color touch screen
    Full alphanumeric keyboard with shortcut keys, efficient in operation
    Simultaneous acquisition and display of 12 ECG leads
    Automatic ECG measurement and interpretation
    Internal memory for up to 1000 cases, convenient for case reviews and statistics
    Built in high capacity rechargeable lithium battery
    ECG data can be transferred via USB to PC
    ECG reports can be saved and opened via ECG replay software on PC
    Optional PC software CardioSoft pro for data transfer (save, review, print a report)


Product Specifications

    Leads: Standard 12 Lieads
    Patient leakage current: < 10μA
    Input impedance: ≥5MΩ
    Frequency response: 1Hz~75Hz
    Time constant: Time constant > 3.2s
    CMRR: >60dB
    EMG noise filter: 25/35Hz(-3dB)
    Recording method: thermal array printing system
    Recording paper specification:
    Paper speed:
    Automatic recording: 25mm/s 50mm/s Error:±5%
    Rhythmic recording: 25mm/s 50mm/s Error:±5%
    Manual recording: 5 mm/s 6.25 mm/s 10 mms10mm/s 12.5 mm/s 25 mm/s 50 mm/s Error:±5%.
    Sensitivity selection: 2.55102040mm/mV 5 options Error:±5%. The default sensitivity is 10mm/mV±0.2mm/mV.
    Automatic recording: set up recording according to recording format and automatic mode with automatic change of line measurement and analysis.
    Manual recording: set up recording according to recording format with manual change of measurement lines.
    Measurement parameters: HR P-R interval P duration QRS duration T duration Q-T interval Q-Tc P axis QRS axis T axis R(V5) S(V1) R(V5)+S(V1)
    Product safety type: class I type CF Defibrillation safe applied part.
    Continuous polarization voltage: ±300mV
    Noise level: ≤15μVp-p
    Fuse specification: 2 pieces φ5×20mm AC slow-blow; T1.6A/250V(220V power supply)

    Operation
    a) Ambient temperature: +5℃~+35℃
    b) Relative humidity: ≤80%
    c) Power supply: AC:100~240V50/60Hz
     DC:7.4V 3700 mAh rechargeable lithium battery
    d) Atmospheric pressure: 86kPa~106kPa

    Transportation and storage
    a) Ambient temperature: -10℃~55℃
    b) Relative humidity: ≤95%
    c) Atmospheric pressure: 50kPa~106kPa
    Input type: floating and defibrillation protection

Related Accessories

    Standard:

    Chest Electrode       ......... 6Pcs
    Clamp Electrode    ........... 4Pcs
    EKG Cable       ................. 1Pcs
    Ground Wire    .................. 1Pcs
    Paper Role  ...................... 1Pcs
    Power cable  .................... 1Pcs
    Cleaning Cloth  ................ 1Pcs

    Options:

    Case
    USB Cable + CD "CardioSoft pro"
    Thermal Paper
    ECG Trolley
    PC(Computer)accessories
    Printer accessories
