Cardios®

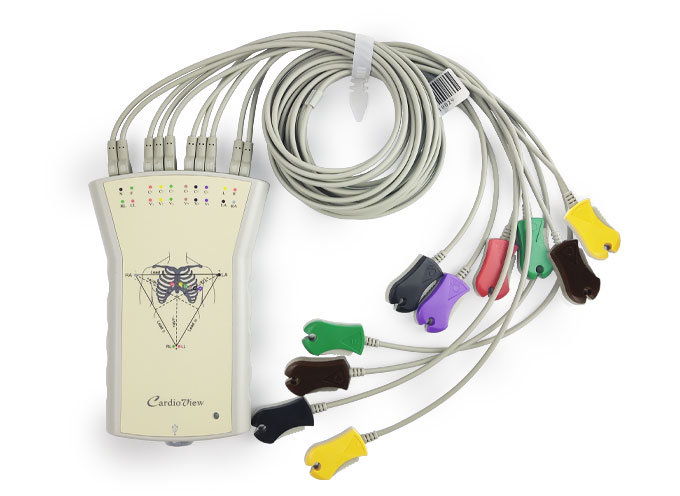

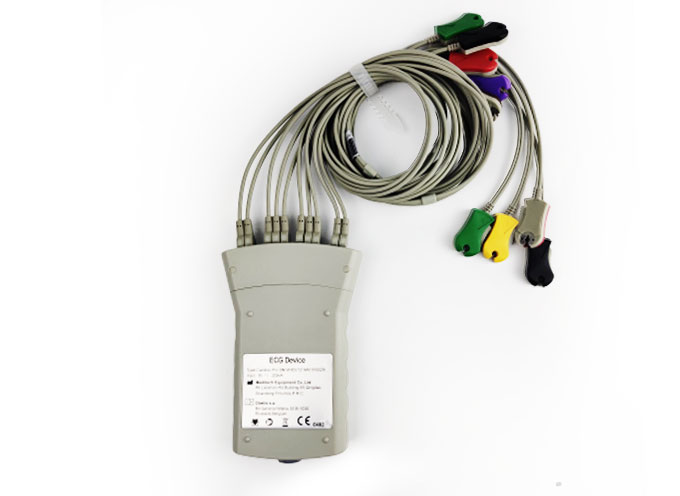

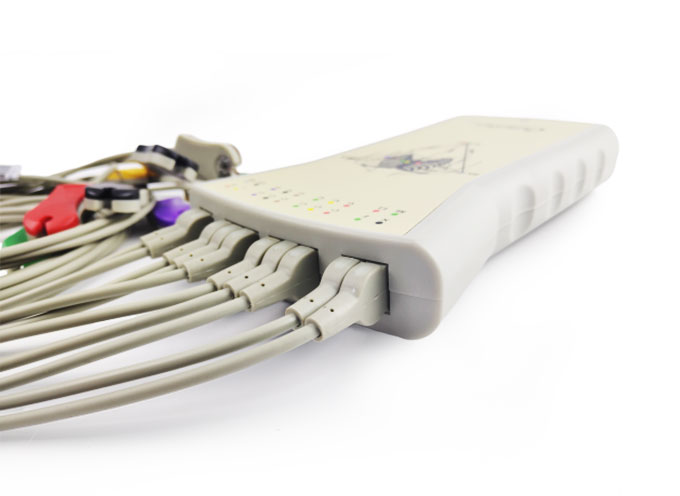

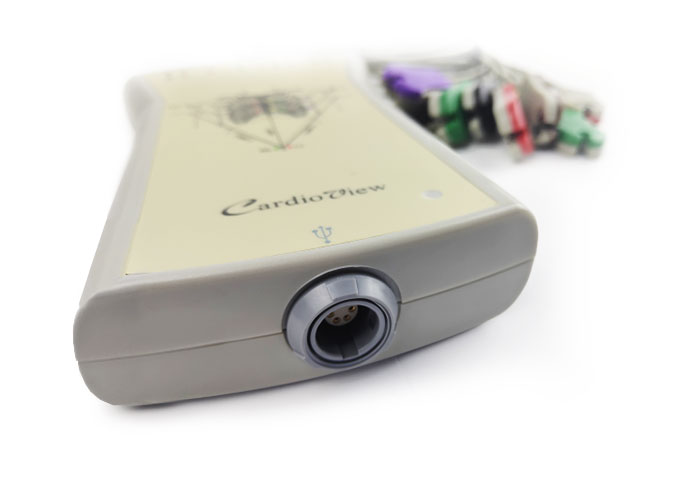

Cardios® PC -based ECG gives you an affordable and portable 12-lead ECG solution with powerful data analysis capabilities.
Optional advanced analysis features ensure clinical accuracy and maximum decision efficiency.

Bluetooth function available
Cardios® PC -based ECG gives you an affordable and portable 12-lead ECG solution with powerful data analysis capabilities.
Optional advanced analysis features ensure clinical accuracy and maximum decision efficiency.

Bluetooth function available
Read More
12 channel simultaneous ECG (patient cable: 10 wires, independent (easy to remove))
Automatic measurement and analysis (PC Interface: USB port)
Pacemaker analysis, multi form printing
VCG and VLP (option), Isolated USB
Sampling rate: A/D: 24K SPS/channel, recording: 1000 SPS/channel
Quantization accuracy: A/D: 24 bit, recording: 16 bit
Resolution: 0.4uV
Frequency response: 0.05-250Hz (±3dB)
Common mode rejection: > 90dB
Input impedance: > 10MΩ
Time constant: 23.25ec
Maximum electrode potential: ±300mV
DCD ynamic range: ±12mV
Isolation voltage: 4000V
Patented multi channel synchronous A/D
Defibrillation protection: Built in box

Sampling Rate:  A/D:          24K SPS/Channel
Recording:                         1000 SPS/Channel
Quantization Precision:       A/D: 24 Bits
Recording:                          16 Bits
Resolution:                         0.4μV
Frequency Response:        0.05-250Hz (±3dB)
Common Mode Rejection:  >90dB
Input Impedance:               >10MΩ
Time Constant:                   ≥3.2Sec.
Maximum Electrode Potential: ±300mV DC
Dynamic Range:                 ±12mV
Isolate Voltage:                   4000V
Patent Multi-Channel Synchronous A/D
Defibrillation Protect:           Built-in box
Patient Current Leek:          <10μA
Standard:

Chest Electrode        ............ 6Pcs
Clamp Electrode     .............. 4Pcs
Cleaning Cloth   ................... 1Pcs

Options:

PC(Computer) accessories
Trolley
Printer accessories

Product Features

    12 channel simultaneous ECG (patient cable: 10 wires, independent (easy to remove))
    Automatic measurement and analysis (PC Interface: USB port)
    Pacemaker analysis, multi form printing
    VCG and VLP (option), Isolated USB
    Sampling rate: A/D: 24K SPS/channel, recording: 1000 SPS/channel
    Quantization accuracy: A/D: 24 bit, recording: 16 bit
    Resolution: 0.4uV
    Frequency response: 0.05-250Hz (±3dB)
    Common mode rejection: > 90dB
    Input impedance: > 10MΩ
    Time constant: 23.25ec
    Maximum electrode potential: ±300mV
    DCD ynamic range: ±12mV
    Isolation voltage: 4000V
    Patented multi channel synchronous A/D
    Defibrillation protection: Built in box


Product Specifications

    Sampling Rate:  A/D:          24K SPS/Channel
    Recording:                         1000 SPS/Channel
    Quantization Precision:       A/D: 24 Bits
    Recording:                          16 Bits
    Resolution:                         0.4μV
    Frequency Response:        0.05-250Hz (±3dB)
    Common Mode Rejection:  >90dB
    Input Impedance:               >10MΩ
    Time Constant:                   ≥3.2Sec.
    Maximum Electrode Potential: ±300mV DC
    Dynamic Range:                 ±12mV
    Isolate Voltage:                   4000V
    Patent Multi-Channel Synchronous A/D
    Defibrillation Protect:           Built-in box
    Patient Current Leek:          <10μA

Related Accessories

    Standard:

    Chest Electrode        ............ 6Pcs
    Clamp Electrode     .............. 4Pcs
    Cleaning Cloth   ................... 1Pcs

    Options:

    PC(Computer) accessories
    Trolley
    Printer accessories
