EKG101T
EKG101T  Smart handheld single channel ECG with interpretation, Color&Touch screen,

Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F  with touch keyboard.

Storage more than 450 exam,
Built-in lithium rechargeable battery,
Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket
Comes with PC Software and USB Connector
EKG101T  Smart handheld single channel ECG with interpretation, Color&Touch screen,

Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F  with touch keyboard.

Storage more than 450 exam,
Built-in lithium rechargeable battery,
Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket
Comes with PC Software and USB Connector
Read More
High resolution thermal-array output system (8 dots/mm) 150Hz.
Large Screen shows 12/6/3/1 Lead(s) and remark real-time and continuously. ECG101T Display Keyboard
The remark includes: lead sign sensitivity paper speed filter state etc.
Touch TFT screen shows the working status
Safety Class: Class I Type CF applied part with defibrillation protection.
AC and DC. Power Supply and built-in lithium polymer rechargeable battery
Record 450 pieces of ECG and review the stored cases and patient information anytime.
Print & store different time length of case to convenient for doctor's case review and statistics.
Selectable print mode print length gain paper speed and report print selection. And for 4 hours continually under the best DC state.

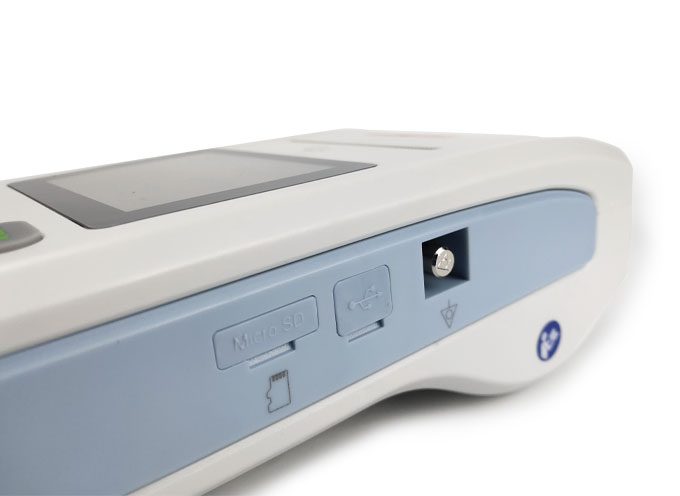

Exterior SD card convenient for use. With SD card the device can store 100 case most.
USB2.0 port working mode can be selected freely between store and synchronization.
Digital signal processing to obtain the ECG of higher quality by AC DFT and EMG filter.
Auto-measurement interpretation and auto-diagnosis of regular ECG parameter
Small in Size 1.20 Size: 207mm (L) ×96mm (W) ×62mm (H) and light in weight 0.6 kg

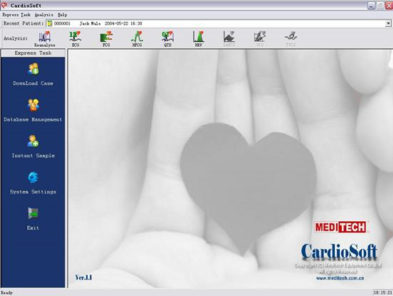

Comes with PC Software for data transfer
