MD9012

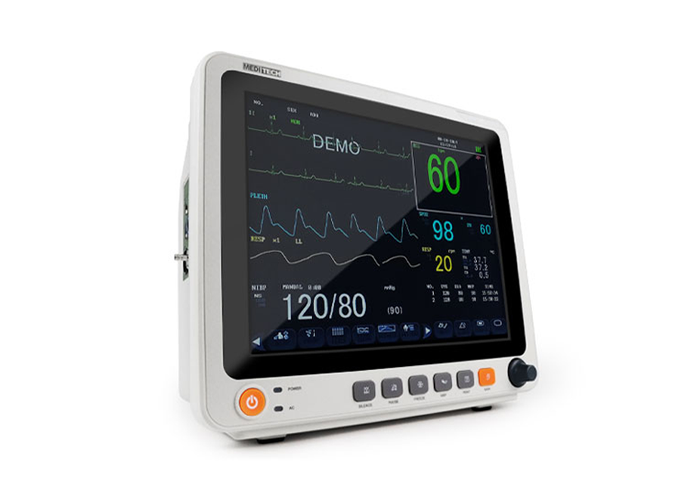

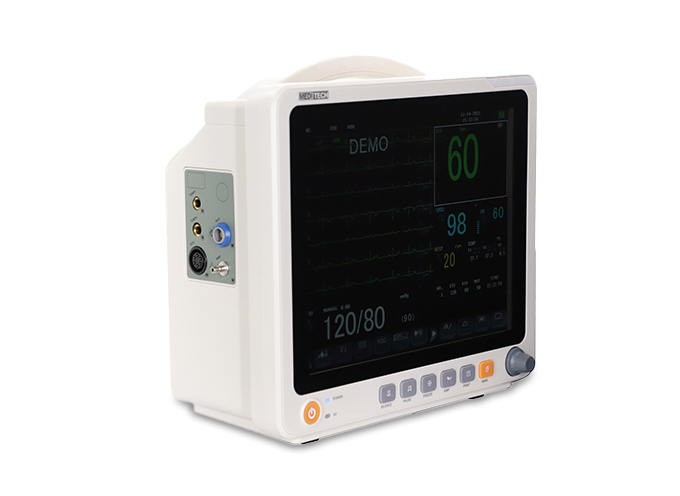

MD9012 Patient monitor 12inch TFT. Patented technology to automatically handle temperature drift of NIBP measurement; User-friendly and configurable interface; Powerful data review; Maximum 720 hours of graphical and tabular trends,
Storage of up to 10000 NIBP records,

Wired or wireless networkable to central monitoring system; Online upgrade keeps you informed;
MD9012 Patient monitor 12inch TFT. Patented technology to automatically handle temperature drift of NIBP measurement; User-friendly and configurable interface; Powerful data review; Maximum 720 hours of graphical and tabular trends,
Storage of up to 10000 NIBP records,

Wired or wireless networkable to central monitoring system; Online upgrade keeps you informed;
Read More
High resolution 12.1-inch TFT color display
Standard parameters: ECG, Respiration, PR, NIBP, SpO2, TEMP,
VGA output for external display
Maximum 8 channel waveform synchronous display
Built in rechargeable lithium battery pack
Three working modes: monitoring, operation and diagnosis
Data and waveforms color adjustable
Arrhythmia analysis and S-T segment analysis
Suitable for adult, pediatric and neonatal patients
Display 7 channel ECG waveforms on one screen, cascade ECG waveform display
Built in battery for up to 2 hours of continuous operation
System software can be upgraded via USB

Options:
IBP, EtCO2 , Thermal printer, Touch screen






ECG
Lead mode 5 leads ( R, L, F, N, C or RA, LA, LL, RL, V)
Lead selection I, II, III, avR, avL, avF, V,
Waveform 2 ch
Derivative mode 3 derivatives ( R, L, F or RA, LA, LL)
Line selection I , II, III,
Waveform 1 ch
Gain x2.5mm/mV, x5.0mm/mV, x10mm/mV, x20mm/mV, auto
HR and alarm
 Range
 Adult 15 ~ 300 bpm
 Neo/Ped 15 ~ 350 bpm
 Accuracy ± 1% or ± 1 bpm, which is very good
 Resolution 1 bpm
 Sensitivity > 200 (uV )
Differential input impedance > 5 MΩ

CMRR
 Monitoring > 105 dB
 Operation > 105 dB
 Diagnostics > 85 dB
Electrode offset potential ±300mV
Leakage current < 10 uA
Baseline recovery < 3 S after defi.
ECG signal range ±8 m V ( Vp-p )
Bandwidth
 Surgery 1 ~ 15 Hz
 Monitoring 0.5 ~ 35 Hz
 Diagnostics 0.05 ~ 100 Hz
Calibration signal 1 (mV ), accuracy : ±5%
ST segment monitoring range
Measurement and alarm -2.0 ~ +2.0 mV
ARR detection
Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT > 2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
 Alarm available
 Verification available

RESPARATION
Method Impedance between RF (RA-LL)
Differential input impedance > 2.5 MΩ
Range of measurement impedance: 0.3~5.0Ω
Base line impedance range: 0 – 2.5 KΩ
Bandwidth 0.3~2.5 Hz
Response rate
Measuring and alarm range
 Adult 0 ~ 120 rpm
 Neo/Ped 0 ~ 150 rpm
Resolution 1 rpm
Accuracy ±2 rpm
Apean alarm 10 ~ 40 S

NIBP
Method Oscillometric
Mode Manual, Auto, STAT
Measuring interval in AUTO mode 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240, 480 (min)
Measuring time in STAT mode 5 min
Pulse rate range 40 ~ 240 bpm
Alarm type SYS, DIA, MEAN
Measurement and alarm range
Adult mode
 SYS 40 ~ 270 mmHg
 DIA 10 ~ 215 mmHg
 MEAN 20 ~ 235 mmHg
Pediatric mode
 SYS 40 ~ 200 mmHg
 DIA 10 ~ 150 mmHg
 MEAN 20 ~ 165 mmHg
Neonatal mode
 SYS 40 ~ 135 mmHg
 DIA 10 ~ 100 mmHg
 MEAN 20 ~ 110 mmHg
Resolution
 Pressure 1mmHg
 Accuracy
 Pressure
Maximum mean deviation ±5mmHg
Maximum standard deviation ±8mmHg
Protection against overpressure
 Adult mode 297±3 mmHg
 Pediatric mode 240±3 mmHg
 Neonatal mode 147±3 mmHg

SpO2
Measuring range 0 ~ 100
Alarm range 0 ~ 100
Resolution 1%
Accuracy 70% ~ 100% ±2
 0% ~ 69% not specified
Update interval approx. 1 sec.
Alarm delay 10 sec.
Pulse rate
Measuring and alarm range 0~254bpm
Resolution 1bpm
 Accuracy ±2bpm

TEMPERATURE
Channel 1
Measuring and alarm range 0 ~ 50 C
Resolution 0,1~C
Accuracy ±0,1~C
Update interval approx. 1 sec.
Average time constant < 10 sec.

IBP
Designation ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range
 ART 0 ~ 300 mmHg
 PA -6 ~ 120 mmHg
 CVP/RAP/ LAP /ICP -10 ~ 40 mmHg
 P1/P2 -10 ~ 300 mmHg
Pressure sensor
Sensitivity 5 uV/V/mmHg
 Impedance 300-3000Ω
 Resolution 1 mmHg
 Accuracy ±2% or ±1mmHg, which is about 1 second.



Standard:

ECG Cable (5 Leads) ...... 1Pcs
SpO2 Cable (Adult)  ........ 1Pcs
TEMP Probe (Adult)  ....... 1Pcs
NIBP Cuff (Adult)  ............ 1Pcs
NIBP Tube(150cm)  ......... 1Pcs
Ground Cable   ................ 1Pcs
Power Cable  ................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

NIBP Cuff (infant 8 - 14 cm 5/Bag)
Paper Role
Thermal printer
Patient Monitor Wall mounts (3 Models)
Patient Monitor Trolley (5 Models)

Product Features

    High resolution 12.1-inch TFT color display
    Standard parameters: ECG, Respiration, PR, NIBP, SpO2, TEMP,
    VGA output for external display
    Maximum 8 channel waveform synchronous display
    Built in rechargeable lithium battery pack
    Three working modes: monitoring, operation and diagnosis
    Data and waveforms color adjustable
    Arrhythmia analysis and S-T segment analysis
    Suitable for adult, pediatric and neonatal patients
    Display 7 channel ECG waveforms on one screen, cascade ECG waveform display
    Built in battery for up to 2 hours of continuous operation
    System software can be upgraded via USB

    Options:
    IBP, EtCO2 , Thermal printer, Touch screen






Product Specifications

    ECG
Lead mode 5 leads ( R, L, F, N, C or RA, LA, LL, RL, V)
Lead selection I, II, III, avR, avL, avF, V,
Waveform 2 ch
Derivative mode 3 derivatives ( R, L, F or RA, LA, LL)
Line selection I , II, III,
Waveform 1 ch
Gain x2.5mm/mV, x5.0mm/mV, x10mm/mV, x20mm/mV, auto
HR and alarm
 Range
 Adult 15 ~ 300 bpm
 Neo/Ped 15 ~ 350 bpm
 Accuracy ± 1% or ± 1 bpm, which is very good
 Resolution 1 bpm
 Sensitivity > 200 (uV )
Differential input impedance > 5 MΩ

CMRR
 Monitoring > 105 dB
 Operation > 105 dB
 Diagnostics > 85 dB
Electrode offset potential ±300mV
Leakage current < 10 uA
Baseline recovery < 3 S after defi.
ECG signal range ±8 m V ( Vp-p )
Bandwidth
 Surgery 1 ~ 15 Hz
 Monitoring 0.5 ~ 35 Hz
 Diagnostics 0.05 ~ 100 Hz
Calibration signal 1 (mV ), accuracy : ±5%
ST segment monitoring range
Measurement and alarm -2.0 ~ +2.0 mV
ARR detection
Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT > 2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
 Alarm available
 Verification available

RESPARATION
Method Impedance between RF (RA-LL)
Differential input impedance > 2.5 MΩ
Range of measurement impedance: 0.3~5.0Ω
Base line impedance range: 0 – 2.5 KΩ
Bandwidth 0.3~2.5 Hz
Response rate
Measuring and alarm range
 Adult 0 ~ 120 rpm
 Neo/Ped 0 ~ 150 rpm
Resolution 1 rpm
Accuracy ±2 rpm
Apean alarm 10 ~ 40 S

NIBP
Method Oscillometric
Mode Manual, Auto, STAT
Measuring interval in AUTO mode 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240, 480 (min)
Measuring time in STAT mode 5 min
Pulse rate range 40 ~ 240 bpm
Alarm type SYS, DIA, MEAN
Measurement and alarm range
Adult mode
 SYS 40 ~ 270 mmHg
 DIA 10 ~ 215 mmHg
 MEAN 20 ~ 235 mmHg
Pediatric mode
 SYS 40 ~ 200 mmHg
 DIA 10 ~ 150 mmHg
 MEAN 20 ~ 165 mmHg
Neonatal mode
 SYS 40 ~ 135 mmHg
 DIA 10 ~ 100 mmHg
 MEAN 20 ~ 110 mmHg
Resolution
 Pressure 1mmHg
 Accuracy
 Pressure
Maximum mean deviation ±5mmHg
Maximum standard deviation ±8mmHg
Protection against overpressure
 Adult mode 297±3 mmHg
 Pediatric mode 240±3 mmHg
 Neonatal mode 147±3 mmHg

SpO2
Measuring range 0 ~ 100
Alarm range 0 ~ 100
Resolution 1%
Accuracy 70% ~ 100% ±2
 0% ~ 69% not specified
Update interval approx. 1 sec.
Alarm delay 10 sec.
Pulse rate
Measuring and alarm range 0~254bpm
Resolution 1bpm
 Accuracy ±2bpm

TEMPERATURE
Channel 1
Measuring and alarm range 0 ~ 50 C
Resolution 0,1~C
Accuracy ±0,1~C
Update interval approx. 1 sec.
Average time constant < 10 sec.

IBP
Designation ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range
 ART 0 ~ 300 mmHg
 PA -6 ~ 120 mmHg
 CVP/RAP/ LAP /ICP -10 ~ 40 mmHg
 P1/P2 -10 ~ 300 mmHg
Pressure sensor
Sensitivity 5 uV/V/mmHg
 Impedance 300-3000Ω
 Resolution 1 mmHg
 Accuracy ±2% or ±1mmHg, which is about 1 second.
