Product Features

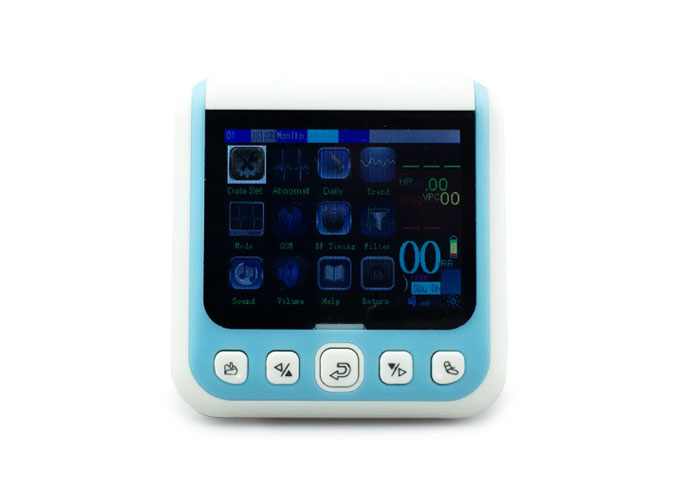

2.4 inch TFT color screen . Resolution: 320*240
Waveform display: 2 channels waveform of ECG, respiration, blood pressure and SpO2 can both be displayed
ECG: With the function of abnormal data storage, daily data storage and trend display
ECG cable: 3 leads .10 leads
NIBP: Manual measurement. Automatically detect the adults and children. The system can set the maximum pressure for adults and children. The blood pressure waveform can be displayed in real time
SpO2: Anti-low perfusion and motion artifacts
Trend display: Display the trend of ECG, blood pressure, SpO2, ST segments, pre-timing and respiration in 96 hours
Alarm modes: visible alarm reminder and voice alarm reminder
Wireless: Bluetooth 4.0
E-Manual: Embedded self-reading e-manual that works with smart devices (Android & iOs)




Options:
Bluetooth printer


Product Specifications

ECG
ECG waveform gain:              0.5 mm / mV，1.0 mm / mV， 2.0 mm / mV
Scanning speed :                   7.5mm / s, 15mm / s
Heart rate and alarm range :
Adult:                                    30 bpm ～250 bpm (beats / min)
Precision of ECG:                 ±5%
Resolution:                           1 bpm (Times/Minute)
Sensitivity:                            ＞200uV (Peak-to-Peak Value)
Trigger level threshold:          200nV (Lead II)
Resistance of differential input:     ＞5MΩ
Common-mode rejection ratio :     ≥ 90 dB
Electrode polarization voltage range: 300mV
Leakage current:                          ＜10uA
Input signal range:                         ±5mV
ECG abnormal types:Tachycardia, Bradycardia, VPC, Bigeminal rhythm, Trigeminal rhythm, RonT, VTAC, Escape Beat and Sinus arrest.
Alarm：The voice audible alarm and screen visual alarm display dual alarm, under review.
Heart rate alarm range：         30～250 bpm
Alarm Mute：                           Less than 10 seconds
Alarm sound pressure：          45 to 65 db
Frequency response :
            Flter :                           0.67 Hz ～ 40Hz
            Guardianship :             0.05 Hz～40Hz
            Detection:                    0.05 Hz～100Hz
Calibration signal :                   6 mm / mV
ST segment measurement:
Measured range:                    -2.0mV～+2.0mV
Precise:                                  -0.8mV～+0.8mV; ±0.02mV or±10%
Renew period:                         10s
Pacing pulse suppression :
            Range:                        ± 2mV to 500Mv
            Width:                         0.1ms ～ 2ms
           Rise time:                    10us ～ 100 μs
Inhibition of the pacing pulse detector for fast ECG signal :   2.5V/s
Can inhibit the T-wave amplitude: > 5mV

Noninvasive blood pressure (NIBP)
Measurement:                     Oscillometric pressure when the blood pressure measurement.
Pressurized automatic calibration zero
Measuring range :                 30mmHg～280mmHg
Measurement accuracy :       ±5mmHgor ±5%
Maximum cuff pressure:        Cuff pressure does not exceed 300 mmHg,
                                              The cuff pressure at 15 mmHg or more time is not more than 3min.
Overvoltage protection:          Yes
Alarm：                                  Systolic / diastolic alarm error of ± 2 mmHg
                                               Atrial premature function
Measuring wrist Week            135mm ～ 215mm

Oxygen saturation (SpO2)
Measuring range ：               40% ～ 99%
Measurement accuracy:        90% ～ 99% Tolerance ± 2%
                                               70% ～ 89% Tolerance ± 4%
                                              40% ～ 69% Tolerance ± 6%
Alarm range ：                      50% ～ 99%

Pulse rate
Measuring range  ：             30 Beats / min ～ 80 Beats / min ± 2
                                              80 Beats / min ～150 Beats / min ± 4
                                             150 Beats / min ～240 Beats / min ,± 5
Measurement accuracy：    ± 5%


Resist electric shock ：         CF type
Build-in :                                3.7V 1000mh
Power adapter：                   5V/1A 2W battery charger:
Power                                    2W
Type :                                    Non-AP / APG type  Do not prevent inlet device
Work environment：
Temperature:                         5 ℃～40 ℃
Humidity:                               15% ～80%
Atmospheric pressure:           80kPa ～105kPa
Storage environment：
Temperature ：                      -20 ℃ ～55℃
Humidity ：                            10%～90%
Atmospheric pressure ：       50.0 kPa ～106.0kPa

Size and Weight
Dimensions ：                    7cm (W) × 7cm (H) ×2.6cm (D) (does not include a wrist strap)
Net Weight ：                     130g
Gross Weight                      0.5Kg

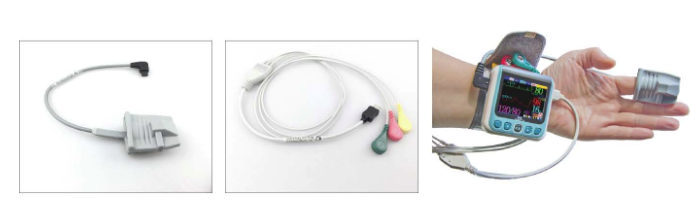

Related Accessories

Standard:

ECG Cable (3 Leads) ...... 1Pcs
SpO2 probe (Soft tip)   ..... 1Pcs
Power Adapter    .............. 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

ECG Cable (10 Leads)
