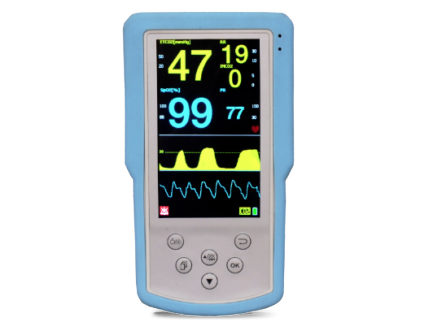

CapnoVet
Capno Vet sidestream EtCO2 (End Tidal CO2) sensor. It does not occupy any host space and connects to host just with one eight-pin plug.

Caonoxi plus capnograp:
Monitoring the patient’s respiratory status during CPR
Assists in determining when to intubate or extubate
Verification of ET tube placement
Alerts if accidental extubation occurs
Verification of ventilation during transport
Specialized date export function, help analysing sleep condition

Capno Vet sidestream EtCO2 (End Tidal CO2) sensor. It does not occupy any host space and connects to host just with one eight-pin plug.

Caonoxi plus capnograp:
Monitoring the patient’s respiratory status during CPR
Assists in determining when to intubate or extubate
Verification of ET tube placement
Alerts if accidental extubation occurs
Verification of ventilation during transport
Specialized date export function, help analysing sleep condition

Read More
Monitoring SpO2, pulse rate, ETCO2 and respiratory rate;
Update 255 hour historical data replay on PC through USB
Equip Spo2 and Respiratory Status Analysis Software, comprehensive data analysis
Suitable for clinical and emergency circumstance
SpO2, SpO2+CO2 selectable

Software Function
Professional Data Analysis Software for CO2 Monitoring
Connecting the palm monitor to PC through USB
Storing Unlimited patients data
Displaying ETCO2，SPO2 Trends Table
Controlling PC printer, outputting trend graph, trend table report
Recording and storage object’s respiration details in clinical

Inside Pump Made by

TFT Screen
Type Colorful TFT LCD
Dimension 5.0 inch

LED
Patient Alarm Indicator      Two colors:Yellow and Red

Sound Indicator
Loudspeaker            Play alarm voices

Interfaces
Power 12VDC power socket*1pc
USB MINI USB socket*1

- CO2
Principle NDIR single beam optics, dual wavelength, no moving parts.
Sample Rate 50mL/min, ±10mL/min
Initialization Time In 5 seconds,display the CO2 scan wave

Range CO2
0~99 mmHg
0~13 % Respiratory Rate
2~150 bpm

Resolution CO2
0.1 mmHg               0 ~ 40 mmHg
0.25 mmHg             40 ~ 99 mmHg
Respiratory Rate
1 bpm

Precision CO2
0~40 mmHg           ±2 mmHg
40 ~99 mmHg       ±5% of reading
Respiratory Rate
±1 bpm
Apnea Alarm Time 10~60s

- SpO2
Measure Range
SpO2         0 - 100 %
Pulse rate   35 - 254 BPM

Measure Accuracy
SpO2   ±2% (70 - 100%)
Pulse rate :±2 or ±2 BPM

Battery
Quantity 4
Model Rechargeable lithium battery
Voltage 3.7 V
Capacity 2200mAh
Working time 10 hours
Recharging time 4 Hours


Product Features

    Monitoring SpO2, pulse rate, ETCO2 and respiratory rate;
    Update 255 hour historical data replay on PC through USB
    Equip Spo2 and Respiratory Status Analysis Software, comprehensive data analysis
    Suitable for clinical and emergency circumstance
    SpO2, SpO2+CO2 selectable

    Software Function
    Professional Data Analysis Software for CO2 Monitoring
    Connecting the palm monitor to PC through USB
    Storing Unlimited patients data
    Displaying ETCO2，SPO2 Trends Table
    Controlling PC printer, outputting trend graph, trend table report
    Recording and storage object’s respiration details in clinical

    Inside Pump Made by


Product Specifications

    TFT Screen
    Type Colorful TFT LCD
    Dimension 5.0 inch

    LED
    Patient Alarm Indicator      Two colors:Yellow and Red

    Sound Indicator
    Loudspeaker            Play alarm voices

    Interfaces
    Power 12VDC power socket*1pc
    USB MINI USB socket*1

    - CO2
    Principle NDIR single beam optics, dual wavelength, no moving parts.
    Sample Rate 50mL/min, ±10mL/min
    Initialization Time In 5 seconds,display the CO2 scan wave

    Range CO2
    0~99 mmHg
    0~13 % Respiratory Rate
    2~150 bpm

    Resolution CO2
    0.1 mmHg               0 ~ 40 mmHg
    0.25 mmHg             40 ~ 99 mmHg
    Respiratory Rate
    1 bpm

    Precision CO2
    0~40 mmHg           ±2 mmHg
    40 ~99 mmHg       ±5% of reading
    Respiratory Rate
    ±1 bpm
    Apnea Alarm Time 10~60s

    - SpO2
    Measure Range
    SpO2         0 - 100 %
    Pulse rate   35 - 254 BPM

    Measure Accuracy
    SpO2   ±2% (70 - 100%)
    Pulse rate :±2 or ±2 BPM

    Battery
    Quantity 4
    Model Rechargeable lithium battery
    Voltage 3.7 V
    Capacity 2200mAh
    Working time 10 hours
    Recharging time 4 Hours
