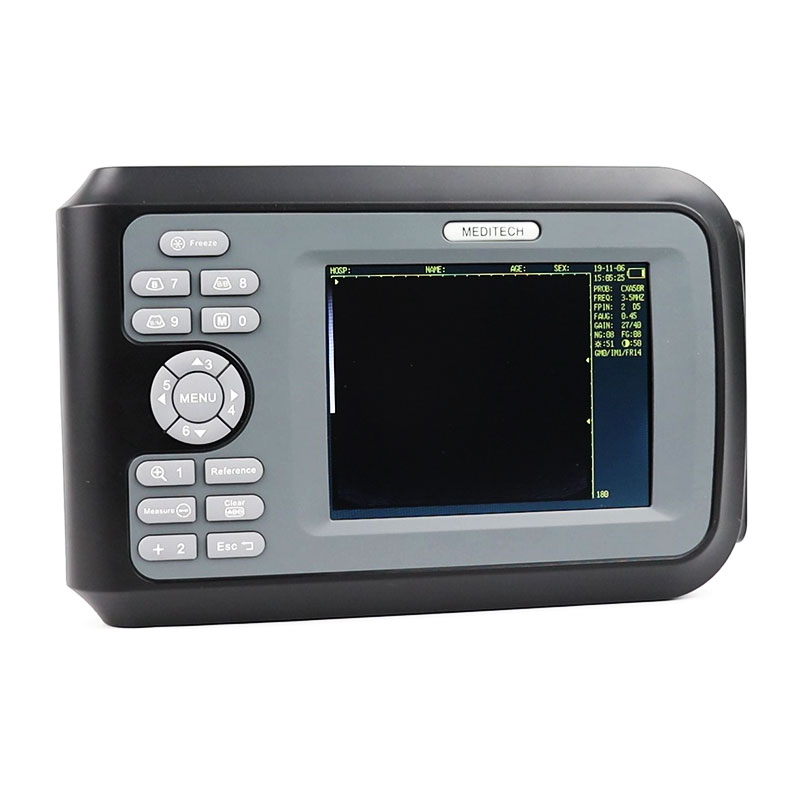

Sonovet palm veterinary ultrasound,weighting only 1.3KG,is distinguishable by its bright and clear image quality.The interchangeable probes offer a wide range of diagnostic applications. Light, Easy and more accurate diagnosis at the point of animal pregnancy at anytime, anywhere, for Vet hospital and outdoor.Battery powered veterinary ultrasound scanner is small and compact.
It is light, excellent for veterinary applications anywhere in the field. Very user friendly!
Monitor: 5.5 inch TFT Screen , (Option: 7 inch)
Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
256 frames for cine-memory
64 image permanent storage
Full digital beam-forming technology
probe automatic identification
Gama correction,histogram
Scanning angle adjustment
USB 2.0For real-time picture uploading to PC
Scanning Method: Convex, Micro-convex, Linear, rectal
Display Mode: B,B+B,4B,B+M,M
Gray Scale: 256 levels
Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
4 focusing combination select-able
4 different coded-color available
15 difference kinds of body marks with difference calipers.
Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
PC software to transfer images to the PC (option)
PAL-D output
Mouse interface
Standard configuration:
main unit + L60/6.5MHz rectal linear
Options:
R40/3.5MHz convex probe
R20/5.0MHz micro-convex probe
L40/7.5MHz linear probe
Monitor : 5.5 inches,TFT Display( 7inch "Option" )
Gray Scale :256
Standard Probes :7.5 Mhz Linear Recall Probe (Multi-frequency,7.5,8.5Mhz)
Net Weight :0.8kg
Digital technology :Full digitally,with Gama correction,Color encode,image smooth high-technology

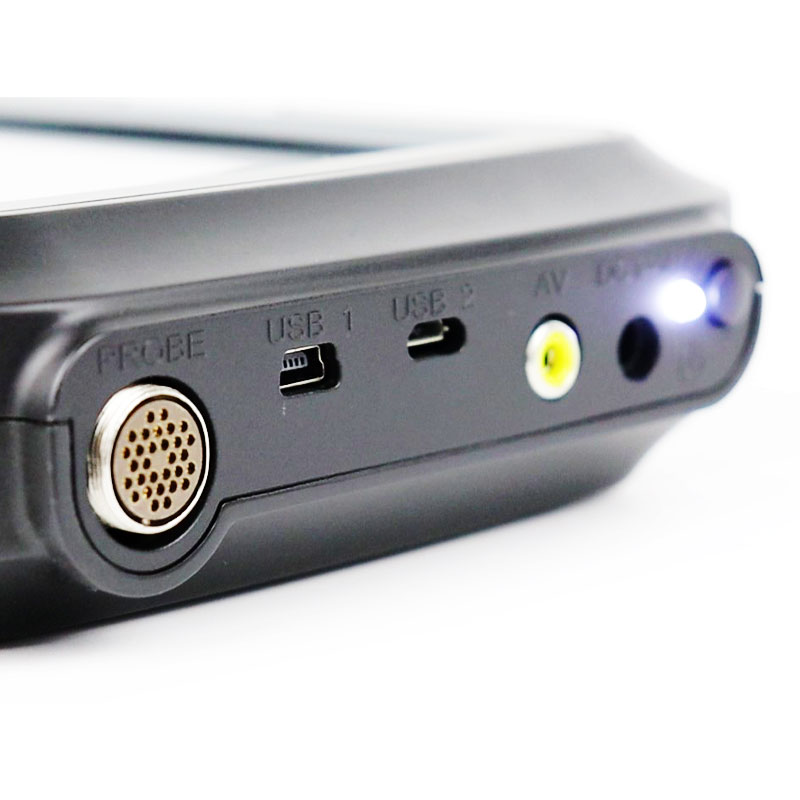

USB Port :support U disk,also mouse for easier use.
TV out-port :Video PALD,NTSC for video recorder and working station
Clinic Report :Automatically generating
Display Depth :≥220mm, multi-steps
CINE LOOP :≥400 frames
Permanent Memory :128 frames
Image Reservation :left/right, up/down, brightness, contrast ratio，also with focus number, focal position
Character Annotation :Date, time, name, sex, age, doctor, hospital, full screen words edit
Obstetric Measurement :16 kinds of obstetric tables, several GA measurement and OB report.
OPERATING TIME :≥2h
Optional Parts :Ultrasound goggles
Options
3.5Mhz convex probe (Multi-frequency,3.5,5.0Mhz)
6.5Mhz Transvaginal probe (Multi-frequency,6.5,7.5Mhz)
5.0Mhz Micro-convex probe (Multi-frequency :4.5,5.0,5.5Mhz)
Car Lighter
Video Printer
Product Features
Monitor: 5.5 inch TFT Screen , (Option: 7 inch)
Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
256 frames for cine-memory
64 image permanent storage
Full digital beam-forming technology
probe automatic identification
Gama correction,histogram
Scanning angle adjustment
USB 2.0For real-time picture uploading to PC
Scanning Method: Convex, Micro-convex, Linear, rectal
Display Mode: B,B+B,4B,B+M,M
Gray Scale: 256 levels
Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
4 focusing combination select-able
4 different coded-color available
15 difference kinds of body marks with difference calipers.
Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
PC software to transfer images to the PC (option)
PAL-D output
Mouse interface
Standard configuration:
main unit + L60/6.5MHz rectal linear
Options:
R40/3.5MHz convex probe
R20/5.0MHz micro-convex probe
L40/7.5MHz linear probe
