Product Features

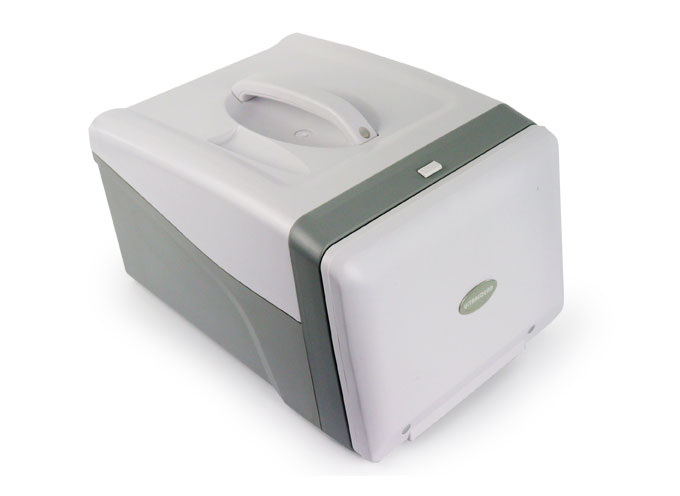

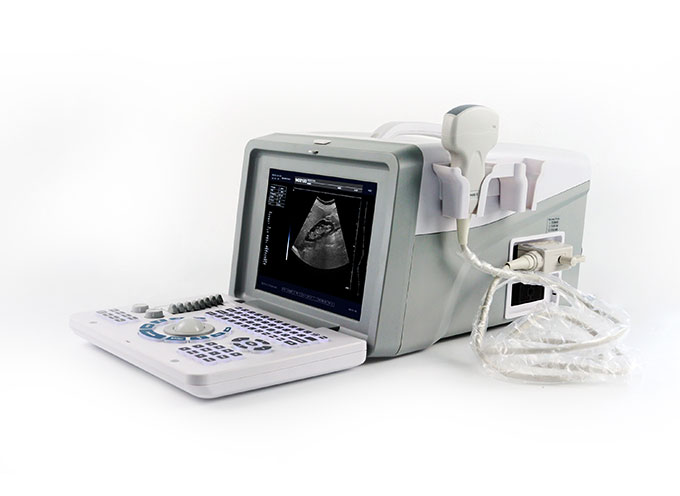

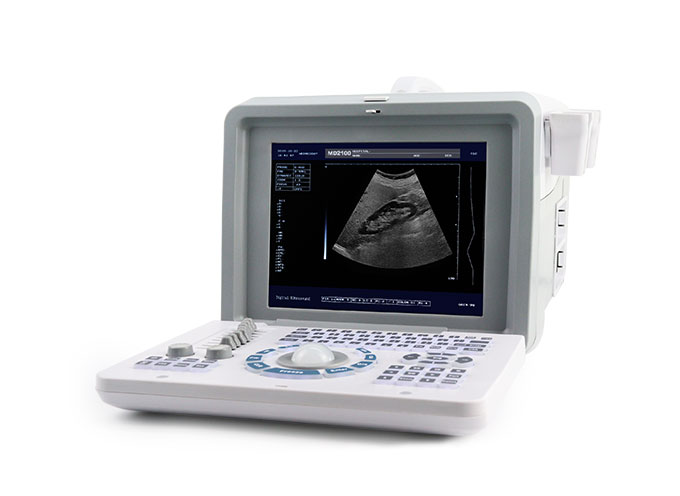

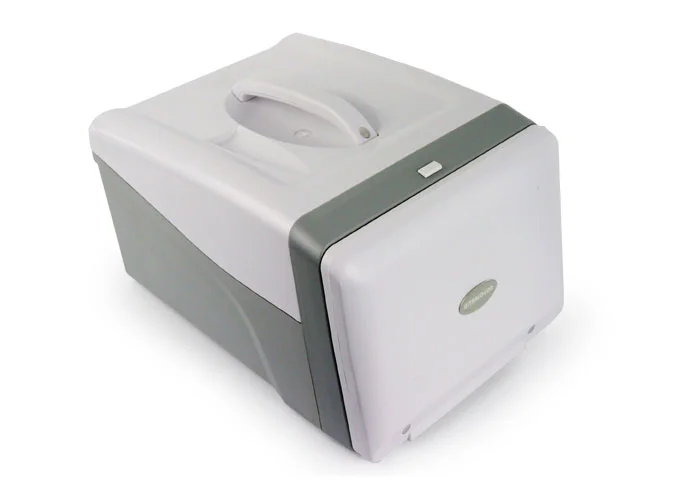

Portable 2D B/W ultrasound 10-inch CRT screen with clear image quality
Advanced transducer technology
Digital beam shaping
Multiple imaging modes
Patented innovative design
Real-time dynamic aperture
Extended USB port and expandable printer function
SVGA video output and PAL video output for easy printer connection

Product Specifications

Screen: 10-inch SVGA HR display. Grayscale: 256 levels.
Display mode: B, B/B, 4B, B+M, and M
Magnification: ×0.8, ×1.0, ×1.2 (depth magnification display) and ×1.5，×1.8, ×2.0 (depth magnification display)
Dynamic range: 64~96dB adjustable
Focusing: Four ranges of dynamic electronic focusing can be selected.
Pre-processing: changeable iris, dynamic mark change, dynamic filter and edge enhancement, etc.
Pro processes: 8 kinds of γ-adjustments, 16 kinds of color processes, line correlation, image correlation and linear interpolation, etc.
Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/6.5MHz/7MHz (suitable for 6.5MHZ cavity probe and 7 MHz high frequency linear array probe).
Calculation: distance, circumference, area, heart rate, gestational week (BPD, GS, CRL, FL, AC) and estimated date of birth.
Note: Name, medical history serial numbers, gender, age, 16 body markers (with probe), full screen characters, real time clock
Puncture guide: The puncture line can be displayed in B mode.
Gain control: The total gain, near field and far field can be set in sequence.
Image polarity: left/right, black/white and up/down reversed.
Fractional gain: 2x magnification
Film memory: 256 images can be saved consecutively when real time is displayed.
Image memory: 128 images are saved permanently.
Image viewing: /The images can be viewed and checked individually.
Output interface: 2 groups of SVGA video outputs can be connected to a SVGA color monitor. And 2 groups of PAL video output can be connected to PAL monitor, video/image capture instrument and/image workshop, etc. 1 group of USB port (optional).

The main technical data
Probe: 80array element R60
Probe frequency: 3.5MHz
Scanning depth: ≥180mm
Lateral resolution: ≤2mm(depth≤80mm), ≤3mm(80 <lock><</lock> depth≤130mm)
Axial: ≤1mm(depth≤80mm), ≤2mm(80 <lock><</lock> depth≤130mm)
Dead zone： ≤3 mm。
Position accuracy of the geometry: lateral≤5%, axial≤5%
Monitor: 10 inch SVGA monitor with high resolution（can select PAL monitor）
Images narrow film loops：256
Power supply range： AC 220V±22V 50Hz
Input: ≤ 300VA
Consecutive working hours：≥8h
G/W: 10KGs
N/B: 7KG
Package size: 480x380x410mm





Related Accessories

Standard:

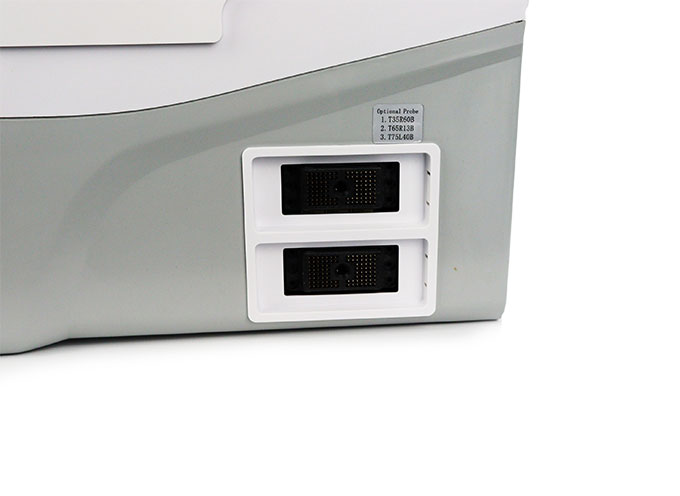

Multi frequency convex probe ...... 1Pcs
Power Cable  ............................... 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:

7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
B/W Laser printer

Footswitch
Battery
Trolley
Ultrasonic work-station
