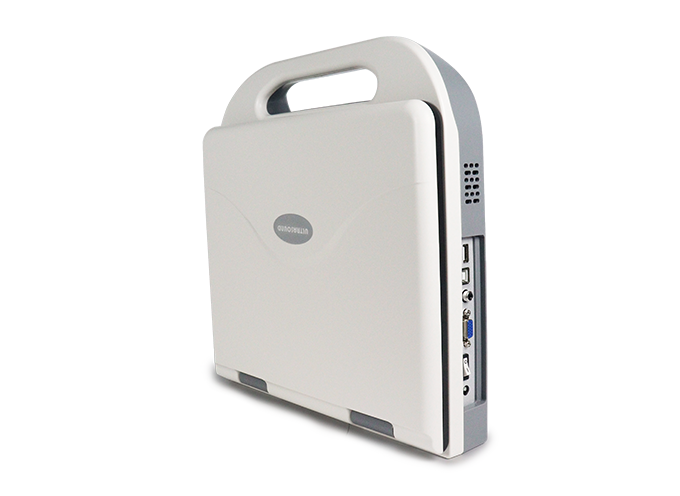

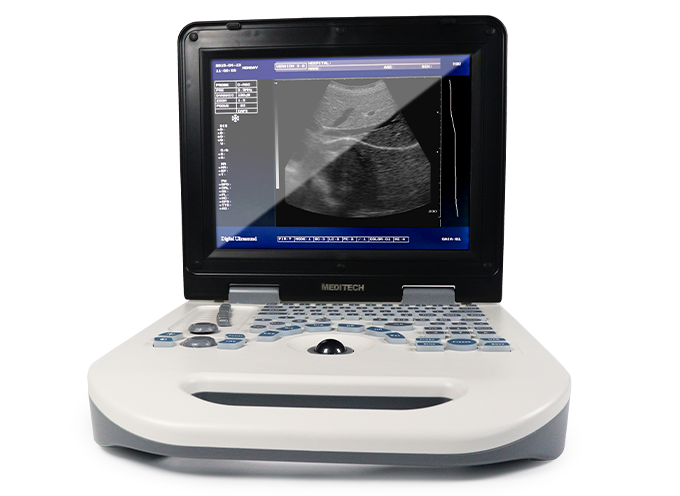

Portable B-Ultrasound Scanner

Dolphi® S

The Dolphi® S ultrasound scanner uses an advanced, high-precision digital beamformer, continuous dynamic focusing, dynamic aperture and dynamic apodization changes that make the image realistic and rich in detail
It has a powerful standard PC platform, professional design and simple operation of the control panel, which can meet the increasing demands of clinical diagnosis.

Software for data recording and transmission

Read Less

The Dolphi® S ultrasound scanner uses an advanced, high-precision digital beamformer, continuous dynamic focusing, dynamic aperture and dynamic apodization changes that make the image realistic and rich in detail
It has a powerful standard PC platform, professional design and simple operation of the control panel, which can meet the increasing demands of clinical diagnosis.

Software for data recording and transmission

Fully digital picture technology
Crystal clear image
Computer platforms, numerous functions
Powerful image and report management
12.6-inch non-interlaced CRT monitor
Backlit silica gel keyboard
DICOM display and transmission
Attractive, portable and lightweight
Large memory capacity and Cine Loop 128/256/512/1024 images Cine Loop
Wideband multi-frequency probes 8-segment TGC, 16-step zoom

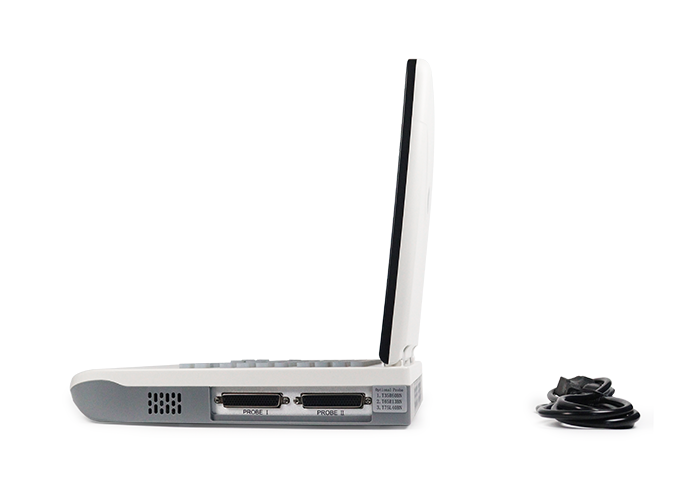

Complete application software packages 2 probe ports
Compatible with USB laser/inkjet printers

12.6" LED display.
Backlight button.
Display modes: B, B/B, 4B, B+M, M.
Gray scale: 256 levels.
Dynamic range: 0~120dB adjustable.
External display LED has 16 kinds of pseudo colors.
Permanent memory: 128 images.
Cine loop capacity: Real-time display of 256 consecutive images stored in sequence.
Gain control: 8 segments TGC and total gain can be adjusted respectively.
Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion;
Frequency range applies 5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can correspond to high frequency probe.
Image multiplication factor:3.5MHz/R60 convex array probe: ×0.8, ×1.0, ×1.2, ×1.5，×1.8, ×2.0 (six modes)×0.8, ×1.0 (display penetration depth).
E-zoom: 2x magnification of the real-time image.
Focus position: dynamic electron focusing.

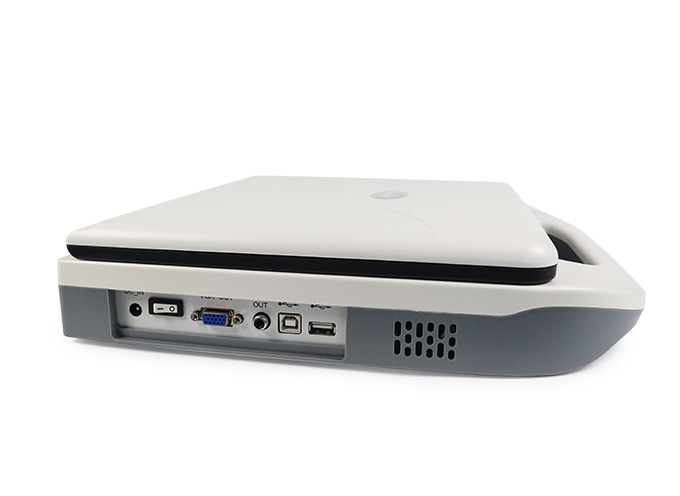

USB socket, video output socket for SVGA video output can be connected to SVGA color monitor.
PAL video output can be connected to PAL monitor, video recorder and image processing device, etc.
USB port: for data transfer
Rechargeable lithium battery.

Standard:

Multi frequency convex probe ...... 1Pcs

Power Cable ............................... 1Pcs
Cleaning Cloth ............................ 1Pcs

Options:

7.5MHz high frequency linear array probe
6.5MHz intracavitary (transvaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
B/W laser printer
Foot switch
Battery
Trolley
Ultrasound workstation
Carrying bag

Product Features

Fully digital picture technology
Crystal clear image
Computer platforms, numerous functions
Powerful image and report management
12.6-inch non-interlaced CRT monitor
Backlit silica gel keyboard
DICOM display and transmission
Attractive, portable and lightweight
Large memory capacity and Cine Loop 128/256/512/1024 images Cine Loop
Wideband multi-frequency probes 8-segment TGC, 16-step zoom
Complete application software packages 2 probe ports
Compatible with USB laser/inkjet printers

Product Specifications

12.6" LED display.
Backlight button.
Display modes: B, B/B, 4B, B+M, M.
Gray scale: 256 levels.
Dynamic range: 0~120dB adjustable.
External display LED has 16 kinds of pseudo colors.
Permanent memory: 128 images.
Cine loop capacity: Real-time display of 256 consecutive images stored in sequence.
Gain control: 8 segments TGC and total gain can be adjusted respectively.
Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion;
Frequency range applies 5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can correspond to high frequency probe.
Image multiplication factor:3.5MHz/R60 convex array probe: ×0.8, ×1.0, ×1.2, ×1.5，×1.8, ×2.0 (six modes)×0.8, ×1.0 (display penetration depth).
E-zoom: 2x magnification of the real-time image.
Focus position: dynamic electron focusing.
USB socket, video output socket for SVGA video output can be connected to SVGA color monitor.
PAL video output can be connected to PAL monitor, video recorder and image processing device, etc.
USB port: for data transfer
Rechargeable lithium battery.

Related Accessories

Online Inquiry

Related items

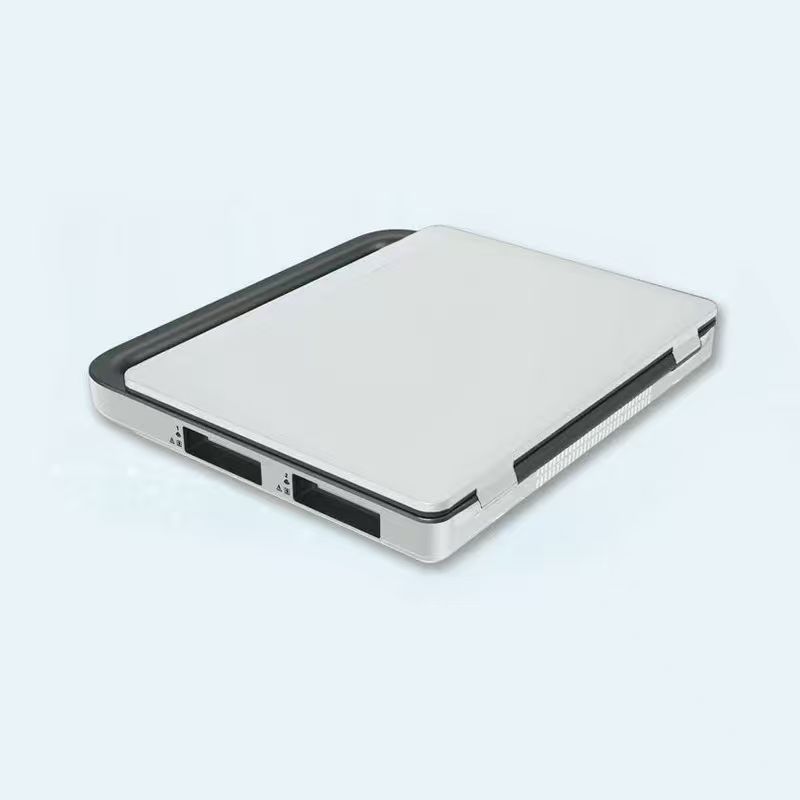

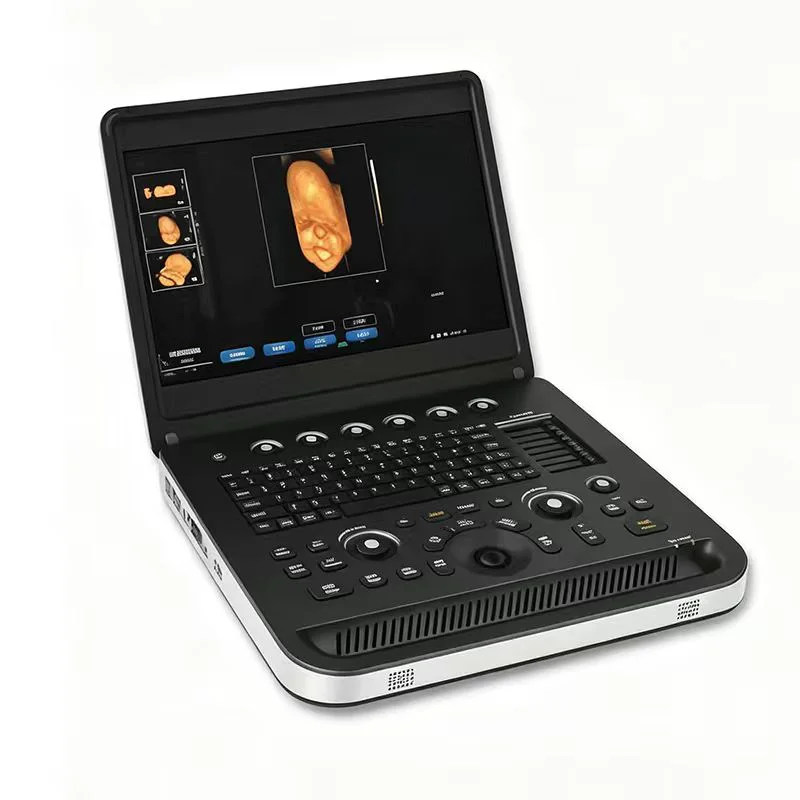

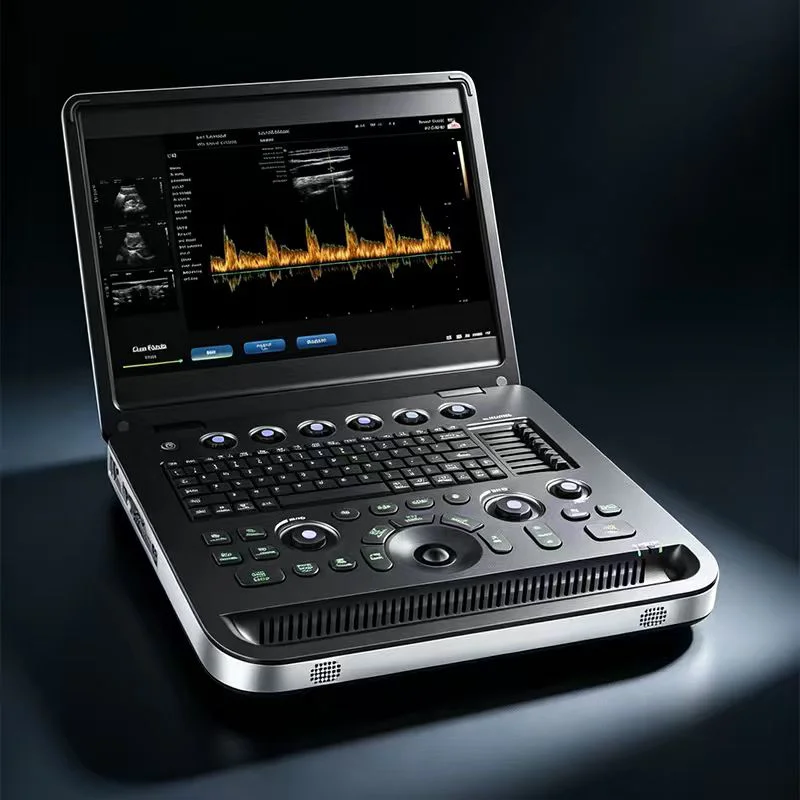

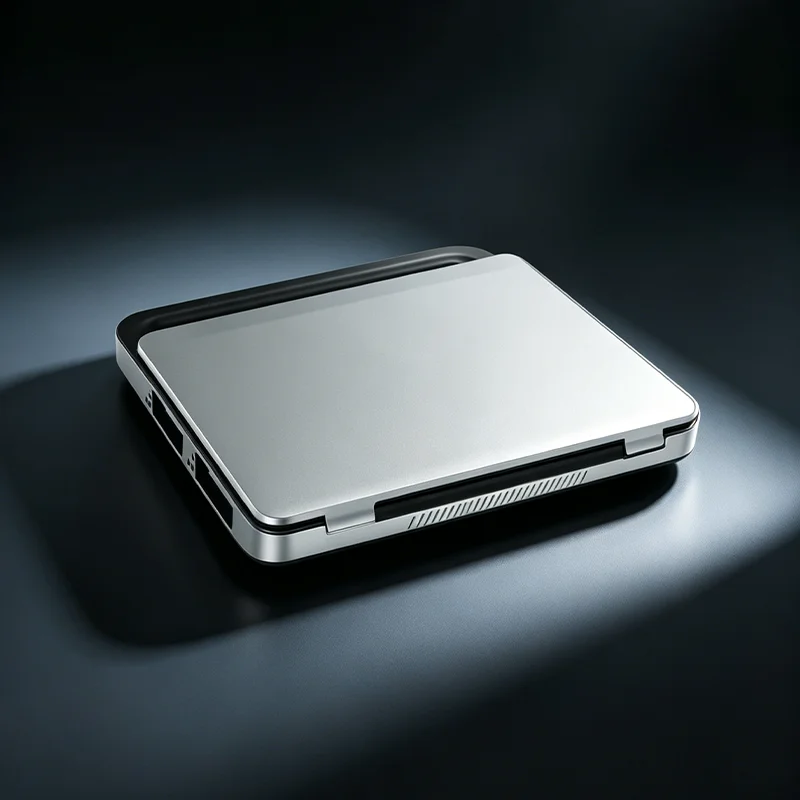

Dolphi® S
