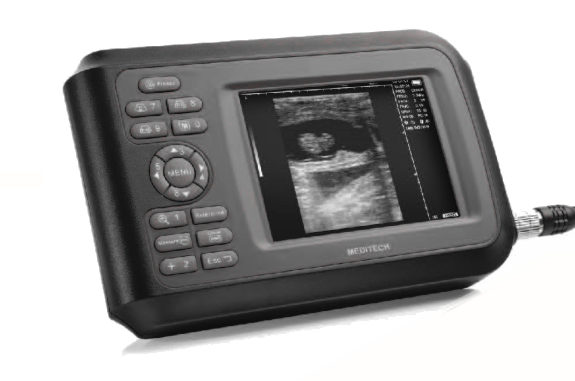

Product Features

Monitor: 5.5 inch TFT color LCD
Full digital beam forming technology
Gama correction, histogram& Scanning angle adjustment
Display Mode: B,B+B,4B,B+M,M
Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
4 focusing combination selectable
PAL-D output
Gray Scale: 256 levels
256 frames for cine-memory,64 image permanent storage
Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
15 difference kinds of body marks with difference calipers.
Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.
USB 2.0 For real-time picture uploading to PC
Scanning Method: Convex, Micro-convex, Linear, rectal

Power supply: AC100-240v, 50/60Hz  DC: 16.8v rechargeable, Lithium battery Capacity 180 minute continue working
Dimensions: 265mmx46mmx53mm
Weight: 700g.


Product Specifications

Probe		linear probe 6.5MHz Rectal probe	convex probe	micro-convex probe
Detect Depth(mm)		≥80	≥140	≥90
Resolution (mm)	Lateral	≤1 (Depth≤60)	≤3 (Depth≤80) ≤5 (80＜Depth≤130)	≤3 (Depth≤60)
	Axial	≤1 (Depth≤80)	≤1 (Depth≤80)	≤1 (Depth≤60)
Blind zone(mm)		≤3	≤6	≤5
Geometric position precision	Horizontal	≤5	≤7.5	≤7.5
	Vertical	≤5	≤5	≤5
Monitor size		5 inch
Display mode		B, B+B, B+M, M, 4B
Image gray scale		256
Image storage		64
Cine loop		≥400 frame
Scan depth		70 mm～140 mm
Image flip		Up/down, left/right
Focus position		Adjustable
posture mark		16
Image Process		Histogram, Color encode, GAMA, Image Smoothen
Probe Frequency		Adjustable(3 point each probe)
Frame correlation		Adjustable
Measurement		Distance, circumference, area, volume, heart rate. GA,EDD
Notation		Date, time, name, sex, age, hospital name、Full screen words edit
output report		Measurement
Output		USB2.0,   VIDEO(PALD, NTSC)
Battery Continuous work		≥2Hours



Related Accessories

Standard:

Multi frequency convex probe ...... 1Pcs
Hard Case ................................... 1Pcs
Silicon Case    ............................. 1Pcs
Power Adapter    .......................... 1Pcs
Chargable Battery  ....................... 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:

7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
DC Car Charger
USB Cable
