Capnoxi® Plus
Capnoxi® Plus Monitoring the patient’s respiratory status during CPR
Assists in deciding when to intubate or extubate
Verification of ET tube placement Warning of accidental extubation
Verification of ventilation during transport
Specialized data export function, help with sleep status analysis
end tidal co2 hyperventilation,low end tidal co2 differential diagnosis,end tidal co2 monitoring devices,capnography normal values,capnography monitor,end tidal carbon dioxide,capnothorax definition,capnothorax vs pneumothorax,co2 insufflation laparoscopy, co2 insufflation colonoscopy,laparoscopy anesthesia considerations,paramedic ventilator training, hypotension after desufflation,how to get rid of co2 after laparoscopic surgery


Capnoxi® Plus Monitoring the patient’s respiratory status during CPR
Assists in deciding when to intubate or extubate
Verification of ET tube placement Warning of accidental extubation
Verification of ventilation during transport
Specialized data export function, help with sleep status analysis
end tidal co2 hyperventilation,low end tidal co2 differential diagnosis,end tidal co2 monitoring devices,capnography normal values,capnography monitor,end tidal carbon dioxide,capnothorax definition,capnothorax vs pneumothorax,co2 insufflation laparoscopy, co2 insufflation colonoscopy,laparoscopy anesthesia considerations,paramedic ventilator training, hypotension after desufflation,how to get rid of co2 after laparoscopic surgery


Read More
Monitoring of SpO2, pulse rate, ETCO2, and respiratory rate
Update 255 hours of historical data at PC via USB
Equipped with Spo2 and Respiratory Status Analysis software, comprehensive data analysis
Suitable for clinical and emergency conditions
SpO2, SpO2+CO2 selectable
Professional data analysis software for CO2 monitoring
Connection of Palm monitor to PC via USB
Unlimited patient data can be stored
Display of ETCO2, SPO2 trend table
Control of printer PC, output of trend graphs and trend table reports
Recording and selling of ventilation data in the clinic


Inside Pump Made by



Available types:

A- Capnoxi® plus with external sidestream CO2 sensor "Et7"

capnography


B- Capnoxi® plus with External sidestream CO2 sensor "Et5"

Capmoxi capnography with external sidestreamCO2 sensor "Et5"


C- Capnoxi® plus  with built-in sidestream CO2 sensor (Internal Module)

etco2 monitor from china


D- Capnoxi® plus with external mainstream CO2

Capmoxi with external sidestreamCO2 sensor "Et7"

Multiparameter canography monitor

TFT screen
Dimension 5.0 inch

Patient alarm display
Two colors: Yellow and red

Sound indicator
Playback of alarm voices via loudspeaker

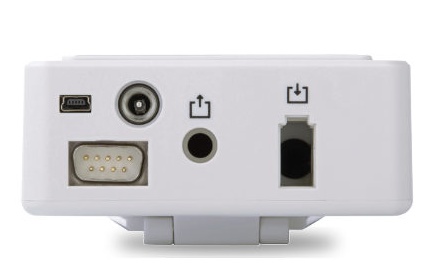

Interfaces
Power 12VDC socket*1pc
USB MINI USB socket*1

CO2
Principle NDIR single beam optics, two wavelengths, no moving parts.
Sampling rate 50mL/min, ±10mL/min
Initialization time In 5 seconds, CO2 scan wave display
Range CO2 0~99 mmHg 0~13 % Respiratory rate 2~150 bpm
Resolution CO2
0.1 mmHg 0 ~ 40 mmHg
0.25 mmHg 40 ~ 99 mmHg
Respiratory rate 1 bpm
Accuracy CO2 0~40 mmHg ±2 mmHg 40 ~99 mmHg ±5% of reading
Respiratory rate
±1 bpm
Apnea alarm time 10~60s

SpO2
Measuring range
SpO2 0 - 100
Pulse rate 35 - 254 BPM

Accuracy of measurement
SpO2 ±2% (70 - 100%)
Pulse rate: ±2 or ±2 BPM

Battery
Quantity 4
Model Rechargeable lithium battery
Voltage 3.7V
Capacity 2200mAh
Operating time 10 hours
Recharge time 4 hours

Standard:

Product Features

    Monitoring of SpO2, pulse rate, ETCO2, and respiratory rate
    Update 255 hours of historical data at PC via USB
    Equipped with Spo2 and Respiratory Status Analysis software, comprehensive data analysis
    Suitable for clinical and emergency conditions
    SpO2, SpO2+CO2 selectable
    Professional data analysis software for CO2 monitoring
    Connection of Palm monitor to PC via USB
    Unlimited patient data can be stored
    Display of ETCO2, SPO2 trend table
    Control of printer PC, output of trend graphs and trend table reports
    Recording and selling of ventilation data in the clinic


    Inside Pump Made by



    Available types:

    A- Capnoxi® plus with external sidestream CO2 sensor "Et7"

    capnography


    B- Capnoxi® plus with External sidestream CO2 sensor "Et5"

    Capmoxi capnography with external sidestreamCO2 sensor "Et5"


    C- Capnoxi® plus  with built-in sidestream CO2 sensor (Internal Module)

    etco2 monitor from china


    D-     Capnoxi® plus with external mainstream CO2

    Capmoxi with external sidestreamCO2 sensor "Et7"


Product Specifications

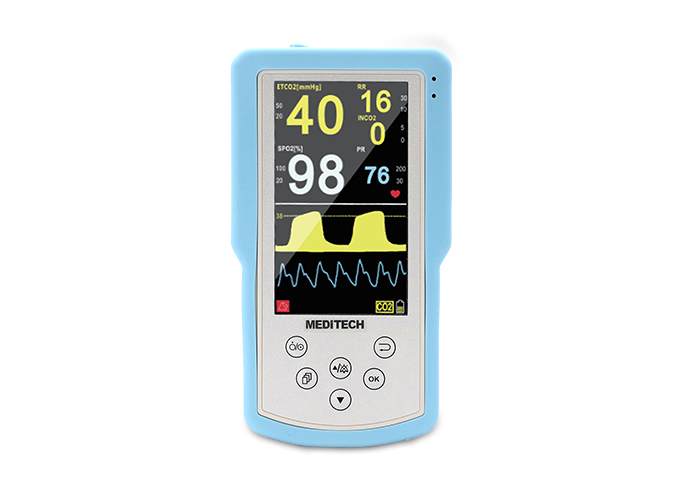

    Multiparameter canography monitor

TFT screen
Dimension 5.0 inch

Patient alarm display
Two colors: Yellow and red

Sound indicator
Playback of alarm voices via loudspeaker

Interfaces
Power 12VDC socket*1pc
USB MINI USB socket*1

CO2
Principle NDIR single beam optics, two wavelengths, no moving parts.
Sampling rate 50mL/min, ±10mL/min
Initialization time In 5 seconds, CO2 scan wave display
Range CO2 0~99 mmHg 0~13 % Respiratory rate 2~150 bpm
Resolution CO2
0.1 mmHg 0 ~ 40 mmHg
0.25 mmHg 40 ~ 99 mmHg
Respiratory rate 1 bpm
Accuracy CO2 0~40 mmHg ±2 mmHg 40 ~99 mmHg ±5% of reading
Respiratory rate
±1 bpm
Apnea alarm time 10~60s

SpO2
Measuring range
SpO2 0 - 100
Pulse rate 35 - 254 BPM

Accuracy of measurement
SpO2 ±2% (70 - 100%)
Pulse rate: ±2 or ±2 BPM

Battery
Quantity 4
Model Rechargeable lithium battery
Voltage 3.7V
Capacity 2200mAh
Operating time 10 hours
Recharge time 4 hours
