Defi®5s Pro Fully
Child mode:

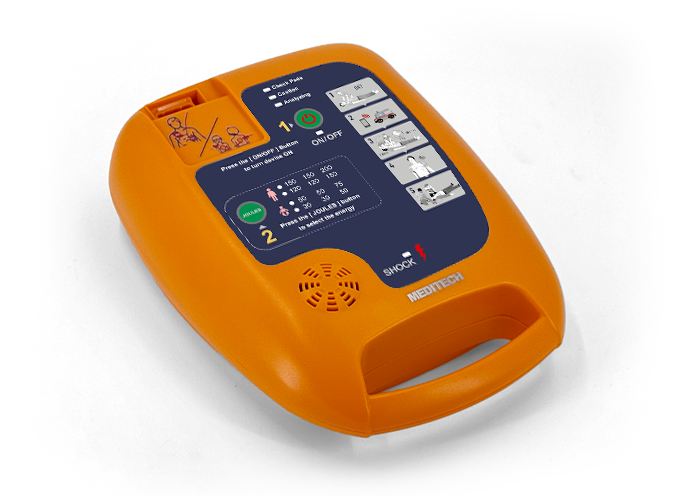

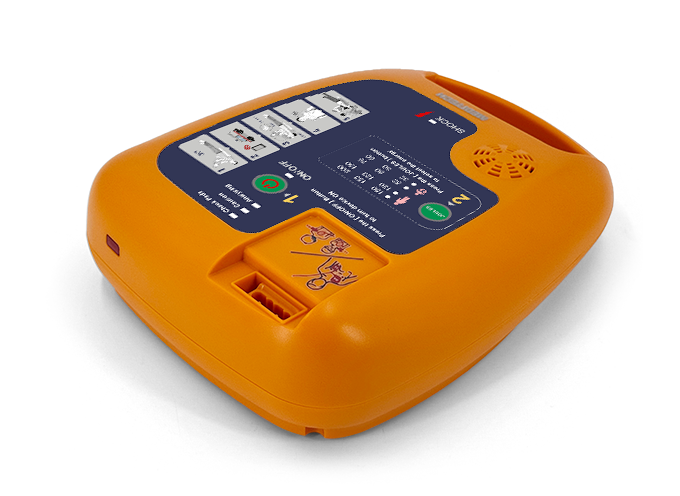

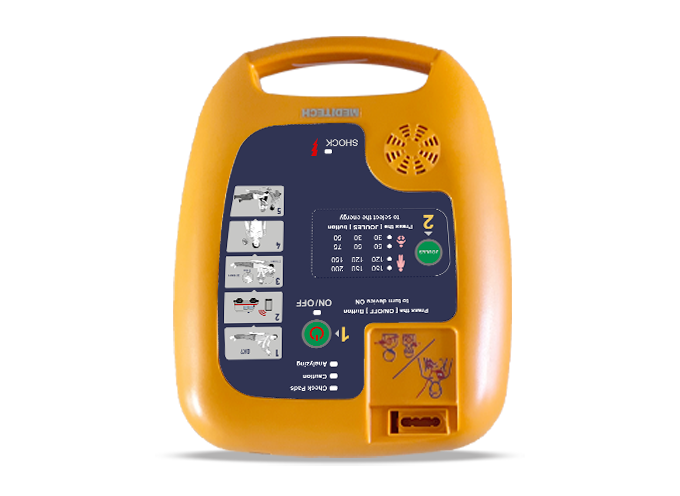

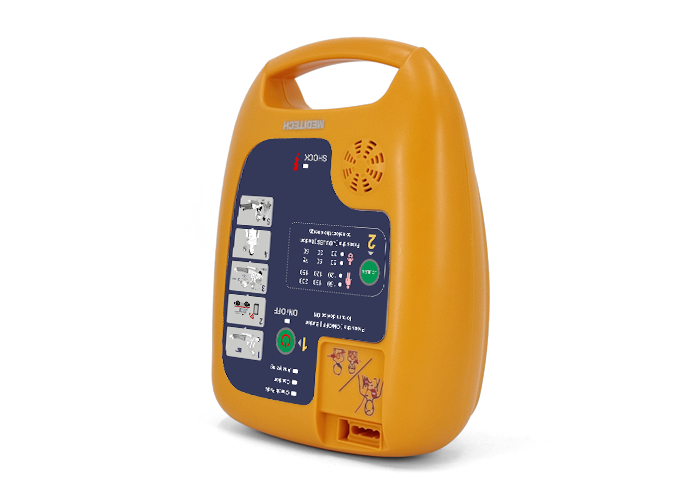

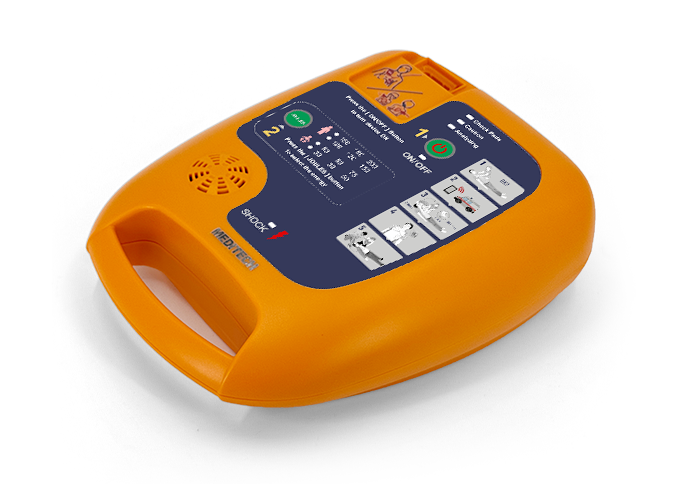

Defi® 5s , Pro Fully automatic external defibrillator for adults and children
( AED) that delivers the shock without the need to press the shock button
30, 30, 50 joules
50, 50, 75 joules
Adult mode:
120, 120, 150 joules
150, 150, 200 joules
2 languages for user selection 5 sound levels (max. 100 dp) for user control
Child mode:
Defi® 5s , Pro Fully automatic external defibrillator for adults and children
( AED) that delivers the shock without the need to press the shock button
30, 30, 50 joules
50, 50, 75 joules
Adult mode:
120, 120, 150 joules
150, 150, 200 joules
2 languages for user selection 5 sound levels (max. 100 dp) for user control
Read More
2 languages to choose from (by end user)
5 volume levels (by the end user)
2 energy levels for adult mode
2 energy levels for child mode
PC software for data transmission (Option)
Daily, weekly and monthly self-test
Use of the AED in the pocket (does not need to be opened)
Additional pocket in the bag for first aid products
IPX55 water and dust resistant
Selectable energy for patients of different ages
          30.   30.   50J
          50.   50.   75J
         120. 120. 150J
         150. 150. 200J
Extensive voice and visual prompts for the operator
Manually switchable language
Biphasic energy delivery
Interlock protection to prevent accidental defibrillation
ECG signals and events can be transferred to computer
Comes with carrying case, battery and pad,
It has a long life disposable LiMnO2 type battery (battery life at least 5 years)

  • AED storage software (standard configration)
    Used to support the upper monitoring system of the DEFI® automated external defibrillator

    1 Data communication
    DefiSoft AED software supports receiving data sent via infrared,
    Reading and setting ECG waves, setting Defi®5s pro language, reading, analyzing and saving data can also be done with Meditech Defi®5s pro Memory software.

    2 Case management
    DefiSoft converts the selected data file into a case record and stores cases in the database ACCESS.
    Case management supports importing and deleting data and can respond to the ECG waveform of the file by selecting cases.

    3 Memory playback
    The interfaces display status information recorded during the operation of the
    Defi®5s pro recorded status information, including type, event time, description, and waves.
    Event type includes: On event, Self test event, Analysis event, Charge event, Discharge event, CPR start event, CPR stop event. Event time displayed indicates when the event occurred. Description displays the parameter information. "OHM" displays the detected impedance of the patient. The parameter "Power" indicates the voltage of the completed charge; "Shock required" indicates that a shock is recommended after the analysis; "No shock required" indicates that no shock is recommended after the analysis.

    4 ECG
    Waveform gain can be set to 5mm/mv, 10mm/mv, 20mm/mv; waveform speed can be set to 12.5mm/s, 25mm/s, 50mm/s:

    5 Print
    Displays a preview of the selected page and prints basic information
    Technical data
  •



Type: Automatic External Defibrillator  AED
Self-test: Daily, Weekly, Monthly
Mode: Adult, Child
Waveform: Biphasic truncated exponential
Energy: 200 Joule max.
Energy Sequence: Child Mode:   30, 30, 50 Joule
                      50, 50, 75 Joule
Adult  Mode: 120, 120, 150 Joule
                     150, 150, 200 Joule
Charge time:
(New, at 25℃)		 Less than 6 sec. to 150J
Less than 8 sec. to 200J
Voice Prompt: Extensive voice prompt
Visual Indicators: LED prompts
Control: Two buttons: ON/OFF, Shock
ECG storage: 1800 events.
Data transmission Infrared

Battery
Power: 12V, 3000mAh
Type: Non-rechargeable
  Li-MnO2 Cell
Environmental
Operating
Temperature		 0℃ to 40℃
Operating Humidity Relative humidity between 30% and 95%
(non-condensing)
Storage Temperature
(without battery)		 -20℃ to 55℃
Storage Humidity
(without battery)		 Up to 93% (non-condensing)

Physical
Dimensions
Weight
(with battery):		 1.9Kg (4.2 Pounds)







































Standard:

AED Pad      .................... 1Pcs
Battery   ...........................1Pcs
AED Case  ...................... 1Pcs
Cleaning Cloth  ................1Pcs

Options:

AED Cabinet
IrDA USB Adapter for ECG Data transfer
Bluetooth Adaptor for ECG data transfer

Product Features

    2 languages to choose from (by end user)
    5 volume levels (by the end user)
    2 energy levels for adult mode
    2 energy levels for child mode
    PC software for data transmission (Option)
    Daily, weekly and monthly self-test
    Use of the AED in the pocket (does not need to be opened)
    Additional pocket in the bag for first aid products
    IPX55 water and dust resistant
    Selectable energy for patients of different ages
              30.   30.   50J
              50.   50.   75J
             120. 120. 150J
             150. 150. 200J
    Extensive voice and visual prompts for the operator
    Manually switchable language
    Biphasic energy delivery
    Interlock protection to prevent accidental defibrillation
    ECG signals and events can be transferred to computer
    Comes with carrying case, battery and pad,
    It has a long life disposable LiMnO2 type battery (battery life at least 5 years)

    • AED storage software (standard configration)
      Used to support the upper monitoring system of the DEFI® automated external defibrillator

      1 Data communication
      DefiSoft AED software supports receiving data sent via infrared,
      Reading and setting ECG waves, setting Defi®5s pro language, reading, analyzing and saving data can also be done with Meditech Defi®5s pro Memory software.

      2 Case management
      DefiSoft converts the selected data file into a case record and stores cases in the database ACCESS.
      Case management supports importing and deleting data and can respond to the ECG waveform of the file by selecting cases.

      3 Memory playback
      The interfaces display status information recorded during the operation of the
      Defi®5s pro recorded status information, including type, event time, description, and waves.
      Event type includes: On event, Self test event, Analysis event, Charge event, Discharge event, CPR start event, CPR stop event. Event time displayed indicates when the event occurred. Description displays the parameter information. "OHM" displays the detected impedance of the patient. The parameter "Power" indicates the voltage of the completed charge; "Shock required" indicates that a shock is recommended after the analysis; "No shock required" indicates that no shock is recommended after the analysis.

      4 ECG
      Waveform gain can be set to 5mm/mv, 10mm/mv, 20mm/mv; waveform speed can be set to 12.5mm/s, 25mm/s, 50mm/s:

      5 Print
      Displays a preview of the selected page and prints basic information
      Technical data
    •

Product Specifications



    Type: Automatic External Defibrillator  AED
    Self-test: Daily, Weekly, Monthly
    Mode: Adult, Child
    Waveform: Biphasic truncated exponential
    Energy: 200 Joule max.
    Energy Sequence: Child Mode:   30, 30, 50 Joule
                          50, 50, 75 Joule
    Adult  Mode: 120, 120, 150 Joule
                         150, 150, 200 Joule
    Charge time:
    (New, at 25℃)    		 Less than 6 sec. to 150J
    Less than 8 sec. to 200J
    Voice Prompt: Extensive voice prompt
    Visual Indicators: LED prompts
    Control: Two buttons: ON/OFF, Shock
    ECG storage: 1800 events.
    Data transmission Infrared

    Battery
    Power: 12V, 3000mAh
    Type: Non-rechargeable
      Li-MnO2 Cell
    Environmental
    Operating
    Temperature    		 0℃ to 40℃
    Operating Humidity Relative humidity between 30% and 95%
    (non-condensing)
    Storage Temperature
    (without battery)    		 -20℃ to 55℃
    Storage Humidity
    (without battery)    		 Up to 93% (non-condensing)

    Physical
    Dimensions
    Weight
    (with battery):    		 1.9Kg (4.2 Pounds)







































Related Accessories

    Standard:

    AED Pad      .................... 1Pcs
    Battery   ...........................1Pcs
    AED Case  ...................... 1Pcs
    Cleaning Cloth  ................1Pcs

    Options:

    AED Cabinet
    IrDA USB Adapter for ECG Data transfer
    B    luetooth Adaptor for ECG data transfer
