Product Features

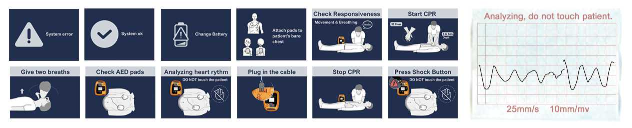

The screen guides the user step by step through the rescue process
Display of the heart rhythm before the shock is delivered
Color Screen for CPR process and display ECG rhythm
2 languages to choose (by the end user)
5 volume levels (by the end user)
Button for adult/child mode
PC software for data transmission (Option)
Daily, weekly and monthly self-test
Use of AED in pocket (does not need to be opened)
Extra pocket in the bag for first aid products
IPX55 water and dust resistant
Selectable energy for patients of different ages
          30.   30.   50 Joule
          50.   50.   75 Joule
         120. 120. 150 Joule
         150. 150. 200 Joule
Comprehensive voice and image prompts for the operator
Manually switchable language
Biphasic energy delivery
Interlock protection to prevent accidental defibrillation
ECG signals and events can be transferred to computer
Comes with carrying case, battery and pad,
It has a long life disposable LiMnO2 type battery (battery life at least 5 years)

• AED storage software (standard configration)
  Used to support the upper monitoring system of the DEFI® automated external defibrillator

  1 Data communication
  DefiSoft AED software supports receiving data sent via infrared,
  Reading and setting ECG waves, setting Defi®5s eXtra language, reading, analyzing and saving data can also be done with Meditech Defi®5s eXtra Memory software.

  2 Case management
  DefiSoft converts the selected data file into a case record and stores cases in the database ACCESS.
  Case management supports importing and deleting data and can respond to the ECG waveform of the file by selecting cases.

  3 Memory playback
  The interfaces display status information recorded during the operation of the
  Defi®5s eXtra recorded status information, including type, event time, description, and waves.
  Event type includes: On event, Self test event, Analysis event, Charge event, Discharge event, CPR start event, CPR stop event. Event time displayed indicates when the event occurred. Description displays the parameter information. "OHM" displays the detected impedance of the patient. The parameter "Power" indicates the voltage of the completed charge; "Shock required" indicates that a shock is recommended after the analysis; "No shock required" indicates that no shock is recommended after the analysis.

  4 ECG
  Waveform gain can be set to 5mm/mv, 10mm/mv, 20mm/mv; waveform speed can be set to 12.5mm/s, 25mm/s, 50mm/s:

  5 Print
  Displays a preview of the selected page and prints basic information
  Technical data

Product Specifications

Type:	Automatic External Defibrillator  AED
Self-test:	Daily, Weekly, Monthly
Mode:	Adult, Child
Waveform:	Biphasic truncated exponential
Energy:	200 Joule max.
Energy Sequence:	Child Mode:   30, 30, 50 Joule                       50, 50, 75 Joule Adult  Mode: 120, 120, 150 Joule                      150, 150, 200 Joule
Charge time: (New, at 25℃)	Less than 6 sec. to 150J Less than 8 sec. to 200J
Voice Prompt:	Extensive voice prompt
Visual Indicators:	LED prompts
Control:	Two buttons: ON/OFF, Shock
ECG storage:	1800 events.
Data transmission	Infrared
Battery
Power:	12V, 3000mAh
Type:	Non-rechargeable
	Li-MnO2 Cell
Environmental
Operating  Temperature	0℃ to 40℃
Operating Humidity	Relative humidity between 30% and 95%  (non-condensing)
Storage Temperature (without battery)	-20℃ to 55℃
Storage Humidity (without battery)	Up to 93% (non-condensing)
Physical
Dimensions
Weight  (with battery):	1.9Kg (4.2 Pounds)

Related Accessories

Standard:


AED Pad      .................... 1Pcs
Battery   ...........................1Pcs
AED carry Case  ...... ...... 1Pcs
Cleaning Cloth  ................1Pcs

Options:

AED Cabinet
AED Sign
AED bracket
IrDA USB Adapter for ECG Data transfer
Bluetooth Adaptor for ECG data transfer
