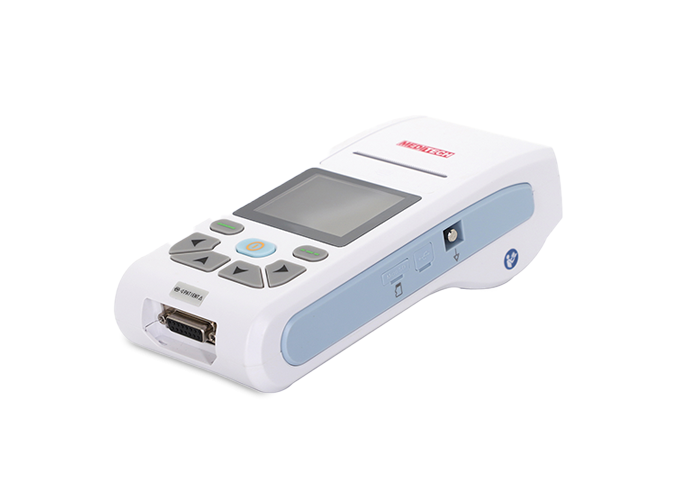

EKG101T

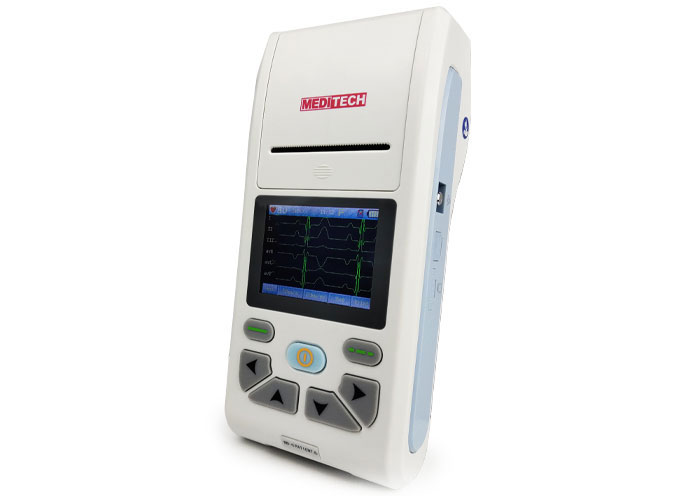

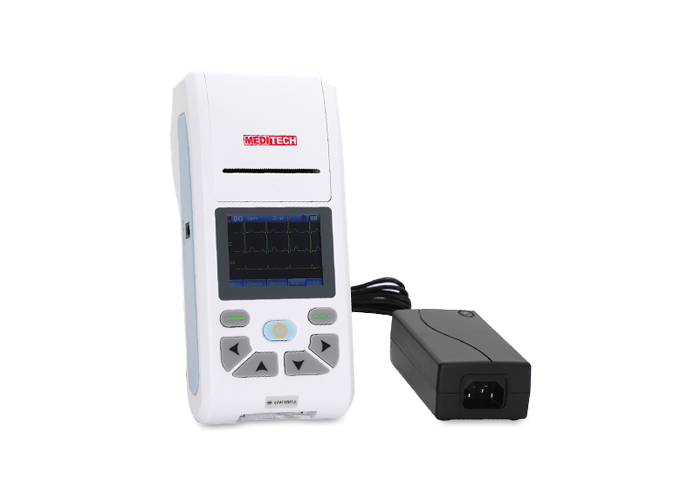

EKG101T Smart handheld three channel ECG with interpretation, Color&Touch screen,
Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F with touch keyboard.
Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F with touch keyboard.
Storage of more than 450 tests, Built-in lithium battery, Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket Comes with PC software and USB connector
EKG101T Smart handheld three channel ECG with interpretation, Color&Touch screen,
Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F with touch keyboard.
Read More Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F with touch keyboard.
Storage of more than 450 tests, Built-in lithium battery, Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket Comes with PC software and USB connector
Color touch screen, displays 12/6/3/1 lead(s) and comment in real time and continuously Keyboard (patient name, age, gender...) Commentary includes: Sign, sensitivity, paper speed, filter status, etc Touch TFT screen to display the working status Safety class: Class I type CF applied part with defibrillation protection AC and DC. Power supply and built-in rechargeable lithium polymer battery Record 450 cases and display the stored cases and patient information at any time Print and store different time spans of cases conveniently for physician case review and statistics Selectable print mode, print length, paper speed and report print selection External SD card for convenient use. With SD card, the device can store a maximum of 100 cases The working mode of USB 2.0 port can be freely selected between storage and synchronization Digital signal processing to obtain the ECG of higher quality by AC DFT and EMG filter Automatic measurement interpretation and automatic diagnosis of regular ECG parameters CardioSoft pro PC software for data transfer (saving, reviewing, printing a report)
Comes with PC Software for data transfer
More details click here
Lead: standard 12 leads Patient leakage current: < 10μA Input impedance: ≥5MΩ Frequency response: 1Hz~75Hz Time constant: Time constant > 3.2s CMRR: ＞60dB EMG noise filter: 25/35Hz(-3dB) Recording method: thermal array printing system Recording paper specification: 50mm（W)×20m(L) high speed thermal paper Paper speed: Automatic recording: 25mm/s 50mm/s Error:±5% Rhythmic recording: 25mm/s 50mm/s Error:±5% Manual recording: 5 mm/s 6.25 mm/s 10 mms10mm/s 12.5 mm/s 25 mm/s 50 mm/s Error:±5%. Sensitivity selection: 2.55102040mm/mV 5 options Error:±5%. The default sensitivity is 10mm/mV±0.2mm/mV. Automatic recording: recording setup according to recording format and auto mode automatically changing lines measurement and analysis. Manual recording: recording setup according to recording format with manual change of measurement lines. Measurement parameters: HR P-R interval P duration QRS duration T duration Q-T interval Q-Tc P-axis QRS axis T-axis R(V5) S(V1) R(V5)+S(V1) Product safety type: class I type CF Defibrillation safe applied part. Continuous polarization voltage: ±300mV Noise level: ≤15μVp-p Fuse specification: 2 pieces φ5×20mm AC slow-blow; T1.6A/250V(220V power supply) Operation a) Ambient temperature: +5℃~+35℃ b) Relative humidity: ≤80% c) Power supply: AC:100~240V50/60Hz DC:7.4V 3700 mAh rechargeable lithium battery d) Atmospheric pressure: 86kPa~106kPa Transportation and storage a) Ambient temperature: -10℃~55℃ b) Relative humidity: ≤95% c) Atmospheric pressure: 50kPa~106kPa Input type: floating and defibrillation protection Size: 207mm(L)×96mm(W)×62mm(H) Net weight: 0.5Kg
Standard:
Chest Electrode ......... 6Pcs
Clamp Electrode ........... 4Pcs
EKG Cable ................. 1Pcs
USB Cable ..................... 1Pcs
CD "CardioSoft pro" ........ 1Pcs
Ground Wire .................. 1Pcs
Paper Role ...................... 1Pcs
Power cable .................... 1Pcs
Cleaning Cloth ................ 1Pcs
Options:
ECG Trolley
Case
Thermal Paper
PC(Computer)accessories
Printer accessories
Product Features
Color touch screen, displays 12/6/3/1 lead(s) and comment in real time and continuously Keyboard (patient name, age, gender...) Commentary includes: Sign, sensitivity, paper speed, filter status, etc Touch TFT screen to display the working status Safety class: Class I type CF applied part with defibrillation protection AC and DC. Power supply and built-in rechargeable lithium polymer battery Record 450 cases and display the stored cases and patient information at any time Print and store different time spans of cases conveniently for physician case review and statistics Selectable print mode, print length, paper speed and report print selection External SD card for convenient use. With SD card, the device can store a maximum of 100 cases The working mode of USB 2.0 port can be freely selected between storage and synchronization Digital signal processing to obtain the ECG of higher quality by AC DFT and EMG filter Automatic measurement interpretation and automatic diagnosis of regular ECG parameters CardioSoft pro PC software for data transfer (saving, reviewing, printing a report)
Comes with PC Software for data transfer
More details click here
Product Specifications
Lead: standard 12 leads Patient leakage current: < 10μA Input impedance: ≥5MΩ Frequency response: 1Hz~75Hz Time constant: Time constant > 3.2s CMRR: ＞60dB EMG noise filter: 25/35Hz(-3dB) Recording method: thermal array printing system Recording paper specification: 50mm（W)×20m(L) high speed thermal paper Paper speed: Automatic recording: 25mm/s 50mm/s Error:±5% Rhythmic recording: 25mm/s 50mm/s Error:±5% Manual recording: 5 mm/s 6.25 mm/s 10 mms10mm/s 12.5 mm/s 25 mm/s 50 mm/s Error:±5%. Sensitivity selection: 2.55102040mm/mV 5 options Error:±5%. The default sensitivity is 10mm/mV±0.2mm/mV. Automatic recording: recording setup according to recording format and auto mode automatically changing lines measurement and analysis. Manual recording: recording setup according to recording format with manual change of measurement lines. Measurement parameters: HR P-R interval P duration QRS duration T duration Q-T interval Q-Tc P-axis QRS axis T-axis R(V5) S(V1) R(V5)+S(V1) Product safety type: class I type CF Defibrillation safe applied part. Continuous polarization voltage: ±300mV Noise level: ≤15μVp-p Fuse specification: 2 pieces φ5×20mm AC slow-blow; T1.6A/250V(220V power supply) Operation a) Ambient temperature: +5℃~+35℃ b) Relative humidity: ≤80% c) Power supply: AC:100~240V50/60Hz DC:7.4V 3700 mAh rechargeable lithium battery d) Atmospheric pressure: 86kPa~106kPa Transportation and storage a) Ambient temperature: -10℃~55℃ b) Relative humidity: ≤95% c) Atmospheric pressure: 50kPa~106kPa Input type: floating and defibrillation protection Size: 207mm(L)×96mm(W)×62mm(H) Net weight: 0.5Kg
Related Accessories
Related items
EKG101T
ECG101T Intelligent handheld unit with three ECG leads and interpretation, color touch screen, display of 12 leads, memory for up to 450 exams with keypad to record patient data (name, age, gender). SD Card, USB socket
