Product Features

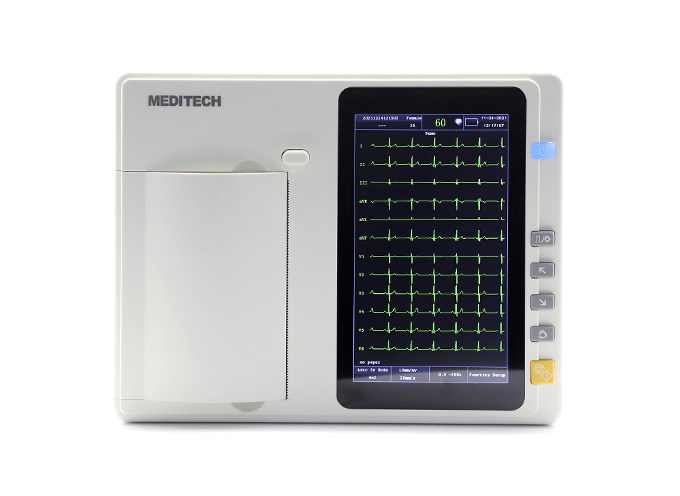

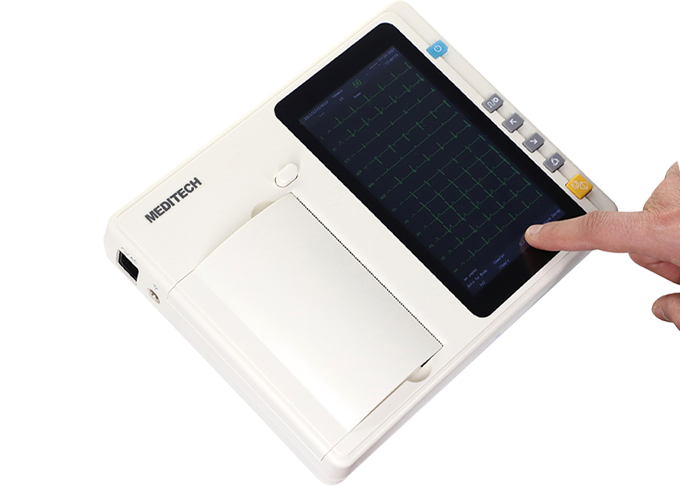

7-inch color touch screen and keypad (patient name, age, gender...)
External card to expand the memory to 10,000 cases
Automatic analysis and automatic evaluation
Internal rechargeable lithium-ion battery
Paper speed: automatic & manual recording: 6.25, 12.5, 25, 50mm/s, error: ±5%
USB interface (standard), LAN socket (option)
Built-in large capacity memory, can store more than 1000 cases
Optional PC software CardioSoft pro for data transfer (saving, reviewing, printing a report)
Re-analysis and display of 12 leads
Analysis elements for FCG, HFCG, QTD and HRV
Multiple languages
The device is supplied with a carrying case

Product Specifications

Lead:                               Standard 12 leads;
Input circuit:                     protection against defibrillator;
Acquisition Mode:            Simultaneous 12 leads acquisition and asynchronous acquisition;
Measurement Range:      ±5mVpp;
Time Constant                 ≥3.2s;
Frequency Response:     0.05Hz~150Hz (-3dB);

Sensitivity:                       2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV;
Input Impedance              ≥50MΩ;
Input Circuit Current        ＜0.05µA;
Noise Level                      ＜15µVp-p;
Patient Current Leakage ＜10µA (220V-240V);

Filter:
EMG Filter:         25 Hz / 30 Hz / 40Hz
Low Pass Filter: 75 Hz / 100 Hz / 150Hz
DFT Filter:         0.05 Hz/0.15 Hz/0.25 Hz/0.32 Hz/ 0.5 Hz/ 0.67Hz/ ADS
AC Filter:           50 Hz / 60Hz
CMRR:              100dB;

Recording Mode:
Automatic:                3CH×4+1R, 3CH×4, 6CHx2;
Manual:                    4CH, 3CH, 2CH, 1CH
Rhythm:                    Any lead selectable
Recording System:   Thermal matrix printing;
Recording Paper:      Roll 80mmx30M;
Paper Speed:            6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s;

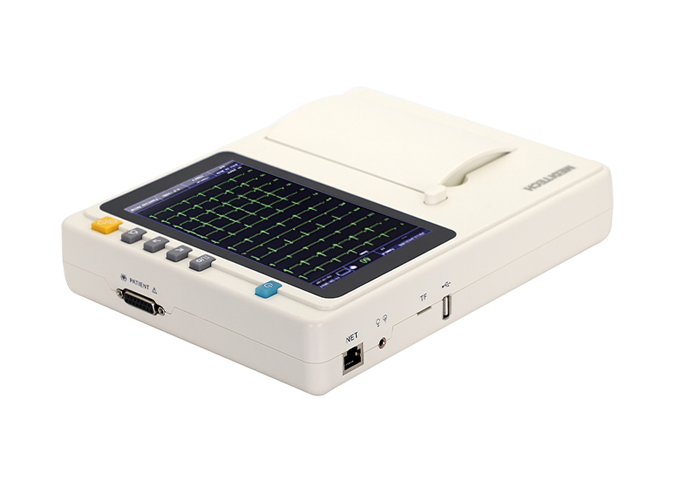

Interface:                   Network interface, USB Master/Slave, SD card;
Safety Standard:       IEC I/CF;

Sample Rate:
Normal:                    1000sps/channel

Power Supply:
AC: 100~240V, 50/60Hz, 30VA~100VA
DC: 14.8V/2200mAh, built-in lithium battery


Related Accessories

Standard:

carry Case  ...................... 1Pcs
Chest Electrode ............... 6Pcs
Clamp Electrode .............. 4Pcs
EKG Cable        ............... 1Pcs
Paper Role ...................... 1Pcs
Power cable ...... .............. 1Pcs
Cleaning Cloth ................ 1Pcs

Options:

Memory USB
Thermal Paper
ECG Trolley
PC (Computer) accessories
Printer accessorie
