Product Features

7 inch Color screen, high resolution

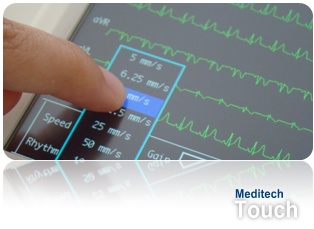

Touch keyboard (patient name, age, gender...)
Memory for more than 1000 cases

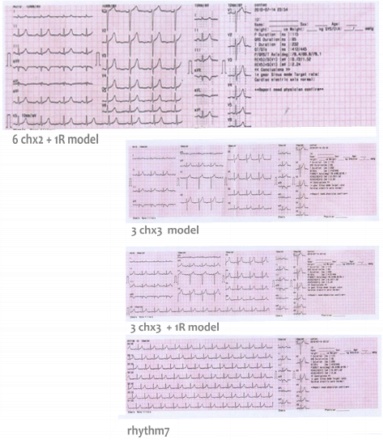

Several recording modes selectable
High resolution 210mm/216mm thermal printer
Built in interpretation software for four age categories accordingly
Heart rate detection function and protection against possible pulse shock when using a pacemaker
Real time clock, heart rate examination and display of ECG waveforms
USB interface (standard), LAN jack (option)
Paper speed: Automatic & manual recording: 6.25, 12.5, 25, 50mm/s, Error: ±5%
Measurement parameters: HR p R interval, P duration, QRS duration, T-duration
Q-T interval, Q-Tc, P-axis, QRS axis, T-axis, R(V5), S(V1), R(V5)+S(V1)
Function for measurement and interpretation of ECG parameters, print in automatic mode
Multiple languages
Re-analysis and display of 12 leads ECG
Analysis of FCG, HFCG, QTD and HRV elements
PC software CardioSoft pro for data transfer (save, review, print a report)


Languages :

English

Chinese
Spanish
Italian
German
French
Russian
Portuguese
Polish
Turkish
and more ...



Comes with PC Software for data transfer


More details click here

Product Specifications

Lead: standard 12 leads
Patient leakage current: < 10μA
Input impedance: ≥5MΩ
Frequency response: 1Hz~75Hz
Time constant: Time constant > 3.2s
CMRR: ＞60dB
EMG noise filter: 25/35Hz(-3dB)
Recording method: thermal array printing system
Recording paper specification: 80mm（W)×20m(L) high speed thermal paper
Paper speed:
Automatic recording: 25mm/s 50mm/s Error:±5%
Rhythmic recording: 25mm/s 50mm/s Error: ±5%
Manual recording: 5 mm/s 6.25 mm/s 10 mms10mm/s 12.5 mm/s 25 mm/s 50 mm/s Error: ±5%.
Sensitivity selection: 2.55102040mm/mV 5 options Error: ±5%. Standard sensitivity is 10mm/mV±0.2mm/mV.
Automatic recording: setting up recording according to recording format and automatic mode with automatic change of line measurement and analysis.
Manual recording: setting up recording according to recording format with manual change of measurement lines.
Measurement parameters: HR P-R interval P duration QRS duration T duration Q-T interval Q-Tc P axis QRS axis T axis R(V5) S(V1) R(V5)+S(V1)
Product safety type: class I type CF Defibrillation safe applied part.
Continuous polarization voltage: ±300mV
Noise level: ≤15μVp-p
Fuse specification: 2 pieces φ5×20mm AC slow-blow; T1.6A/250V(220V power supply)

Operation
a) Ambient temperature: +5℃~+35℃
b) Relative humidity: ≤80%
c) Power supply: AC:100~240V50/60Hz
 DC:7.4V 3700 mAh rechargeable lithium battery
d) Atmospheric pressure: 86kPa~106kPa

Transportation and storage
a) Ambient temperature: -10℃~55℃
b) Relative humidity: ≤95%
c) Atmospheric pressure: 50kPa~106kPa
Input type: floating and defibrillation protection









Related Accessories

Standard:

Chest Electrode       ......... 6Pcs
Clamp Electrode    ........... 4Pcs
EKG Cable       ................. 1Pcs
USB Cable   ..................... 1Pcs
CD "CardioSoft pro"  ........ 1Pcs
Ground Wire    .................. 1Pcs
Paper Role  ...................... 1Pcs
Power cable  .................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

Case
Thermal Paper
ECG Trolley
PC(Computer)accessories
Printer accessories
