EKG-6A

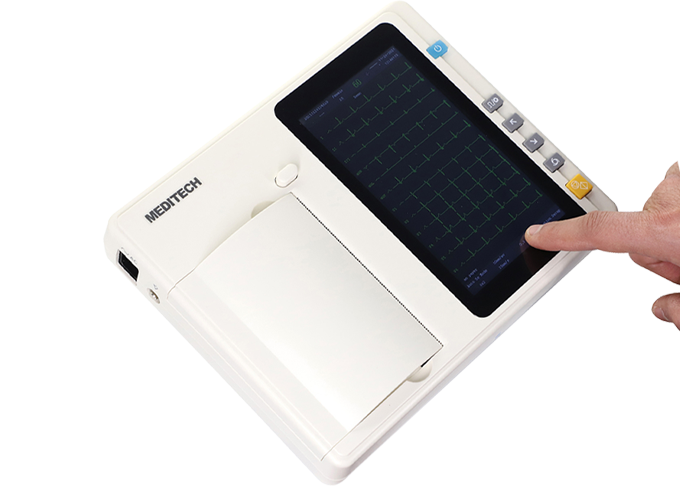

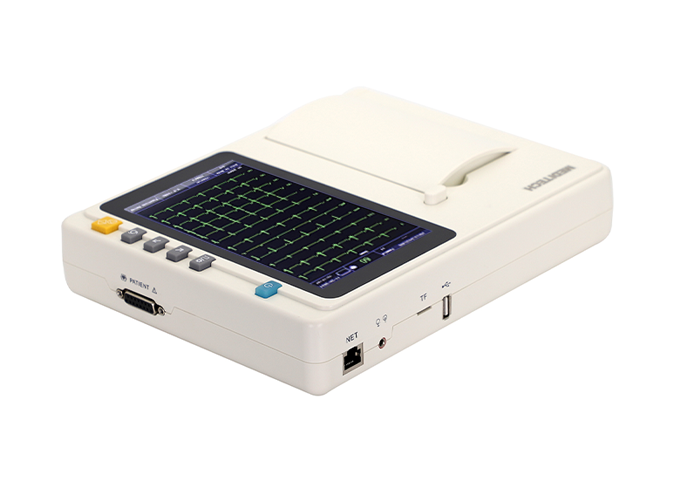

EKG-6A ECG device
Six-channel ECG device, slim, advanced and lightweight
Optional ECG PC software CardioSoft pro for data transfer (saving, reviewing, printing a report)

EKG-6A ECG device
Six-channel ECG device, slim, advanced and lightweight
Optional ECG PC software CardioSoft pro for data transfer (saving, reviewing, printing a report)

Read More
7-inch color touch screen and keypad (patient name, age, gender...)
External card to expand the memory to 10,000 cases
Automatic analysis and automatic evaluation
Internal rechargeable lithium-ion battery
Paper speed: automatic & manual recording: 6.25, 12.5, 25, 50mm/s, error: ±5%
USB interface (standard), LAN socket (option)
Built-in large capacity memory, can store more than 1000 cases
Optional PC software CardioSoft pro for data transfer (saving, reviewing, printing a report)
Re-analysis and display of 12 leads
Analysis elements for FCG, HFCG, QTD and HRV
Multiple languages
The device is supplied with a carrying case
Lead:                               Standard 12 leads;
Input circuit:                     protection against defibrillator;
Acquisition Mode:            Simultaneous 12 leads acquisition and asynchronous acquisition;
Measurement Range:      ±5mVpp;
Time Constant                 ≥3.2s;
Frequency Response:     0.05Hz~150Hz (-3dB);

Sensitivity:                       2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV;
Input Impedance              ≥50MΩ;
Input Circuit Current        <0.05µA;
Noise Level                      <15µVp-p;
Patient Current Leakage <10µA (220V-240V);

Filter:
EMG Filter:         25 Hz / 30 Hz / 40Hz
Low Pass Filter: 75 Hz / 100 Hz / 150Hz
DFT Filter:         0.05 Hz/0.15 Hz/0.25 Hz/0.32 Hz/ 0.5 Hz/ 0.67Hz/ ADS
AC Filter:           50 Hz / 60Hz
CMRR:              100dB;

Recording Mode:
Automatic:                3CH×4+1R, 3CH×4, 6CHx2;
Manual:                    4CH, 3CH, 2CH, 1CH
Rhythm:                    Any lead selectable
Recording System:   Thermal matrix printing;
Recording Paper:      Roll 80mmx30M;
Paper Speed:            6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s;
Interface:                   Network interface, USB Master/Slave, SD card;
Safety Standard:       IEC I/CF;

Sample Rate:
Normal:                    1000sps/channel

Power Supply:
AC: 100~240V, 50/60Hz, 30VA~100VA
DC: 14.8V/2200mAh, built-in lithium battery

Standard:

Chest Electrode ............... 6Pcs
Clamp Electrode .............. 4Pcs
EKG Cable        ............... 1Pcs
Paper Role ...................... 1Pcs
Power cable ...... .............. 1Pcs
Cleaning Cloth ................. 1Pcs

Options:

carry Case
Memory USB
Thermal Paper
ECG Trolley
PC (Computer) accessories
Printer accessorie

Product Features

    7-inch color touch screen and keypad (patient name, age, gender...)
    External card to expand the memory to 10,000 cases
    Automatic analysis and automatic evaluation
    Internal rechargeable lithium-ion battery
    Paper speed: automatic & manual recording: 6.25, 12.5, 25, 50mm/s, error: ±5%
    USB interface (standard), LAN socket (option)
    Built-in large capacity memory, can store more than 1000 cases
    Optional PC software CardioSoft pro for data transfer (saving, reviewing, printing a report)
    Re-analysis and display of 12 leads
    Analysis elements for FCG, HFCG, QTD and HRV
    Multiple languages
    The device is supplied with a carrying case

Product Specifications

    Lead:                               Standard 12 leads;
    Input circuit:                     protection against defibrillator;
    Acquisition Mode:            Simultaneous 12 leads acquisition and asynchronous acquisition;
    Measurement Range:      ±5mVpp;
    Time Constant                 ≥3.2s;
    Frequency Response:     0.05Hz~150Hz (-3dB);

    Sensitivity:                       2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV;
    Input Impedance              ≥50MΩ;
    Input Circuit Current        <0.05µA;
    Noise Level                      <15µVp-p;
    Patient Current Leakage <10µA (220V-240V);

    Filter:
    EMG Filter:         25 Hz / 30 Hz / 40Hz
    Low Pass Filter: 75 Hz / 100 Hz / 150Hz
    DFT Filter:         0.05 Hz/0.15 Hz/0.25 Hz/0.32 Hz/ 0.5 Hz/ 0.67Hz/ ADS
    AC Filter:           50 Hz / 60Hz
    CMRR:              100dB;

    Recording Mode:
    Automatic:                3CH×4+1R, 3CH×4, 6CHx2;
    Manual:                    4CH, 3CH, 2CH, 1CH
    Rhythm:                    Any lead selectable
    Recording System:   Thermal matrix printing;
    Recording Paper:      Roll 80mmx30M;
    Paper Speed:            6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s;
    Interface:                   Network interface, USB Master/Slave, SD card;
    Safety Standard:       IEC I/CF;

    Sample Rate:
    Normal:                    1000sps/channel

    Power Supply:
    AC: 100~240V, 50/60Hz, 30VA~100VA
    DC: 14.8V/2200mAh, built-in lithium battery

Related Accessories

    Standard:

    Chest Electrode ............... 6Pcs
    Clamp Electrode .............. 4Pcs
    EKG Cable        ............... 1Pcs
    Paper Role ...................... 1Pcs
    Power cable ...... .............. 1Pcs
    Cleaning Cloth ................. 1Pcs

    Options:

    carry Case
    Memory USB
    Thermal Paper
    ECG Trolley
    PC (Computer) accessories
    Printer accessorie
