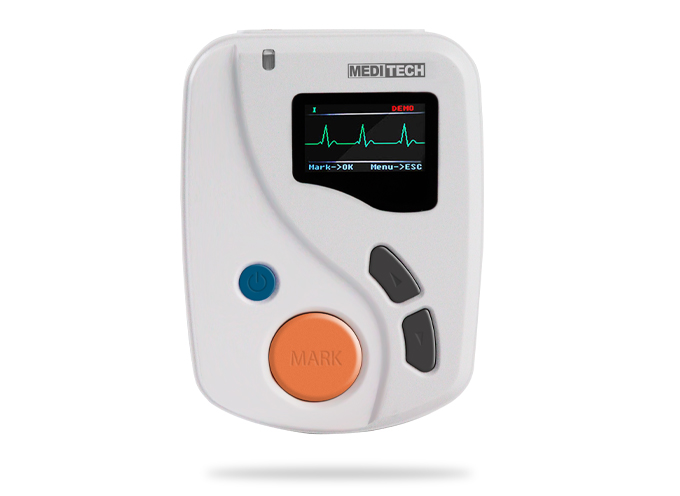

HeartRec® Eco

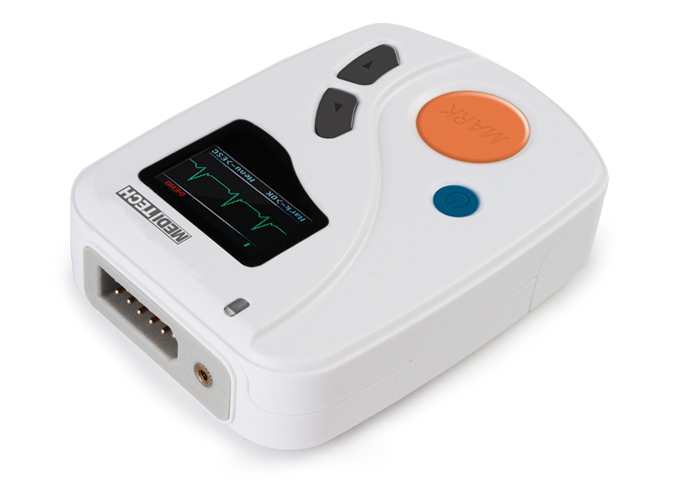

HeartRec® Eco contains Recorder & Analysis Software. The recorder is an easy-to-use device that synchronously acquires the 12-lead ECG waveform and records it continuously for 48 hours.

With the clear user interface, the analysis software is easy for you to use. It can play and classify the ECG waveform stored in the recorder and perform various analysis functions such as arrhythmia, HRV, QTD, TWA
ECG holter software
HeartRec® Eco contains Recorder & Analysis Software. The recorder is an easy-to-use device that synchronously acquires the 12-lead ECG waveform and records it continuously for 48 hours.

With the clear user interface, the analysis software is easy for you to use. It can play and classify the ECG waveform stored in the recorder and perform various analysis functions such as arrhythmia, HRV, QTD, TWA
ECG holter software
Read More

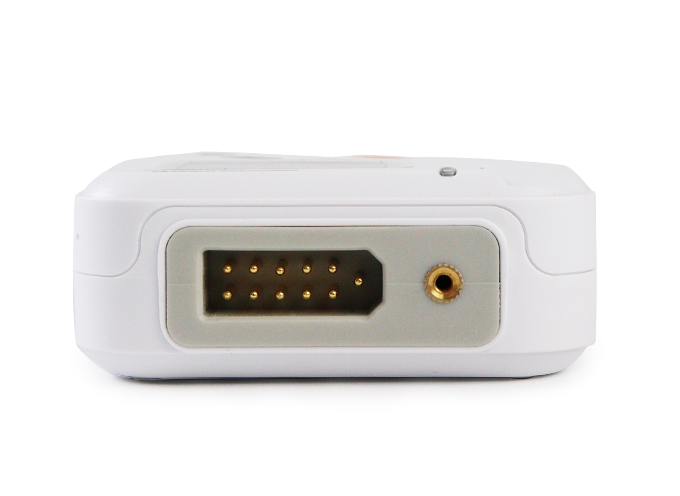

Automatic duplex operation: 12 channel (10 wire cable)
Programmable recording: time: 24h48h
Sampling rate: 128-1024/ch/s up to 10.000/ch/s Resolution: 12-16 bit
Independent stimulation channel
Change patient data and enter patient activities.
Change analysis parameters and perform a new analysis
Edit templates
Edit events
ST assessment
AF and AFL confirmation
Page Scan to quickly browse ECG data
Trend graph or trend list, display information about heart rate changes in time or frequency domain. QT Information
Analysis of obstructive sleep apnea, pacemaker ECG, heart rate turbulence
Waterfall chart 12 channel EC

Scale voltage: 1mV±5%
Standard sensitivity: 10mm/mV±5%
Noise level: ≤30μV p-p
CMRR: ≥60dB
Frequency response: 10Hz as a guide 0.5Hz～55Hz;-3dB
Time constant: time constant≥3.2s
Scan speed: 25mm/s±5%
Continuous polarization voltage: ±300mV DC added polarization voltage, sensitivity shift is not more than ±10%
Lowest measurement signal: 50 μV p-p
Inter-channel interference: sampling trace bending (due to inter-channel interference) ≤0.5mm 12-channel isochronous ECG pattern
Product safety type: type B (internally powered)
Size: 80.5mm (L) *59.5mm (W) *22mm (H)
Net weight: 61.5g (without battery)

Environmental conditions and applicable people
The environmental requirements for the operation, transportation and storage of this system.

Operating environment
Ambient temperature: 10℃~45℃
Relative humidity: ≤85% without condensation.
Atmospheric pressure: 860hPa-1060hPa
Power supply: DC 1.5V 1

Application environment:
No vibration dust corrosive or flammable matter.
No extreme temperature and humidity.

Transportation and storage environment
Ambient temperature: -40℃~+55℃
Relative humidity: ≤85%
Atmospheric pressure: 860hPa-1060hPa

Standard:

EKG Cable       ................ 1Pcs

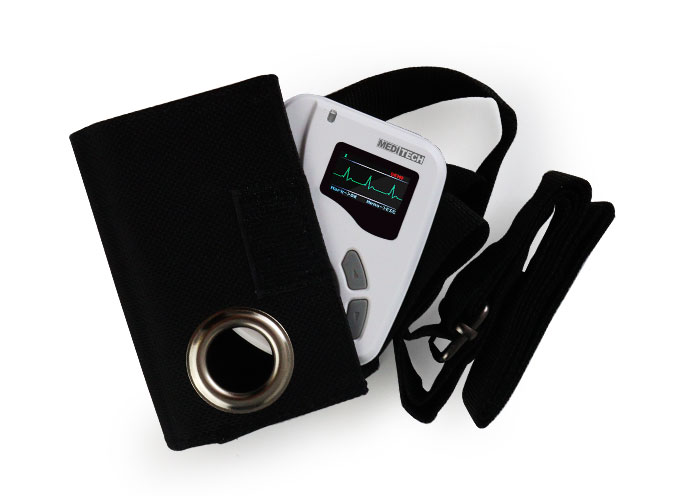

Leather Case ................... 1Pcs
Battery   ........................... 2Pcs
SD Card    ....................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

Rechargable Battery
Charger (Panasonic)

Product Features

    Automatic duplex operation: 12 channel (10 wire cable)
    Programmable recording: time: 24h48h
    Sampling rate: 128-1024/ch/s up to 10.000/ch/s Resolution: 12-16 bit
    Independent stimulation channel
    Change patient data and enter patient activities.
    Change analysis parameters and perform a new analysis
    Edit templates
    Edit events
    ST assessment
    AF and AFL confirmation
    Page Scan to quickly browse ECG data
    Trend graph or trend list, display information about heart rate changes in time or frequency domain. QT Information
    Analysis of obstructive sleep apnea, pacemaker ECG, heart rate turbulence
    Waterfall chart 12 channel EC

Product Specifications

    Scale voltage: 1mV±5%
    Standard sensitivity: 10mm/mV±5%
    Noise level: ≤30μV p-p
    CMRR: ≥60dB
    Frequency response: 10Hz as a guide 0.5Hz～55Hz;-3dB
    Time constant: time constant≥3.2s
    Scan speed: 25mm/s±5%
    Continuous polarization voltage: ±300mV DC added polarization voltage, sensitivity shift is not more than ±10%
    Lowest measurement signal: 50 μV p-p
    Inter-channel interference: sampling trace bending (due to inter-channel interference) ≤0.5mm 12-channel isochronous ECG pattern
    Product safety type: type B (internally powered)
    Size: 80.5mm (L) *59.5mm (W) *22mm (H)
    Net weight: 61.5g (without battery)

    Environmental conditions and applicable people
    The environmental requirements for the operation, transportation and storage of this system.

    Operating environment
    Ambient temperature: 10℃~45℃
    Relative humidity: ≤85% without condensation.
    Atmospheric pressure: 860hPa-1060hPa
    Power supply: DC 1.5V 1

    Application environment:
    No vibration dust corrosive or flammable matter.
    No extreme temperature and humidity.

    Transportation and storage environment
    Ambient temperature: -40℃~+55℃
    Relative humidity: ≤85%
    Atmospheric pressure: 860hPa-1060hPa

Related Accessories

    Standard:

    EKG Cable       ................ 1Pcs
    Leather Case ................... 1Pcs
    Battery   ........................... 2Pcs
    SD Card    ....................... 1Pcs
    Cleaning Cloth  ................ 1Pcs

    Options:

    Rechargable Battery
    Charger (Panasonic)
