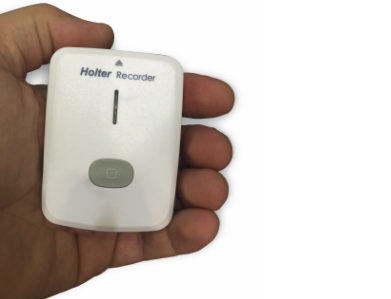

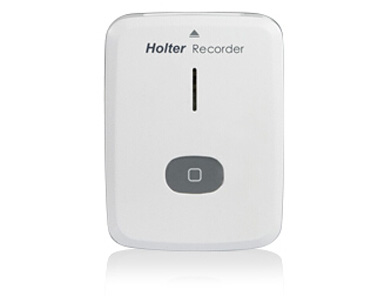

HeartRec® Lite
HeartRec® Lite Holter ECG is intended for patients requiring ambulatory (Holter) monitoring.
light weigh,large capacity and very professional Software.
up to 7 days ECG data recording
HeartRec® Lite Holter ECG is intended for patients requiring ambulatory (Holter) monitoring.
light weigh,large capacity and very professional Software.
up to 7 days ECG data recording
Read More

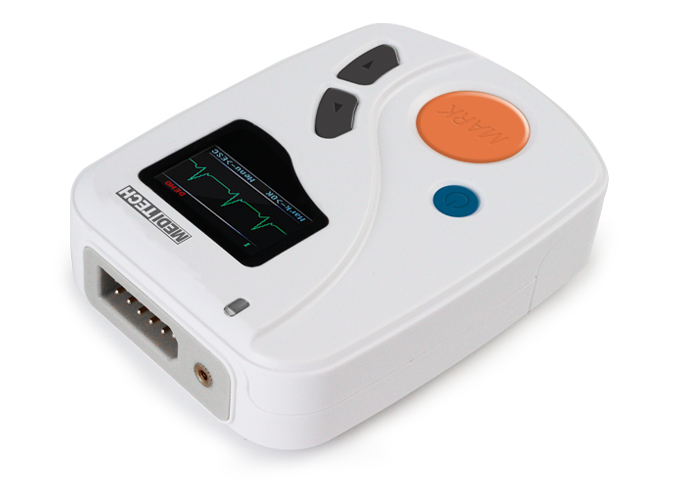

HeartRec Holter Monitoring System from Meditech

 ECG Holter recorder
Automatic Duplex Operation: 12 Channel (10-wire cable),
                                               03 Channel  (5-wire or 7-wire selectable )
Compact size light weight
Fully programmable high Fidelity research grade performance
Lower power consumption
Lightning data transfer
Pacemaker detection
Up to 7 days recording

Channels: (Two Work Modes)
12-lead / 3-Channel Switchable by Changing Patient Cable 10-Wire Cable
12-Lead: I II III aVR aVL aVF V1 - V6 5-Wire or 7-Wire

Two models Avalable:
03 Channel
12 Channel

Program able Recording:
Time: 24h-72h for12 channel and up to 7 days for 3 Channel
Sampling Rate: 128—1024/ch/s up to 10000/ch/s Resolution: 12-16 bits
Independent Pace Maker Channel

High Quality Recording:
Frequency Response: 0.05~60Hz CMMR: >80dB
Input Impedance: >5MΩ

Double Work Modes in Data Access:
Removable SD Card: 512MB/1GB/ 2GB USB connector

Low Power Consumption:
One AAA Battery: up to 7 days for 3-Channel

Compact Size & Light Weight:
72mm×53mm×16mm (2.8"×2.0"×0.63")
48g (1.7oz.) battery not included
Standard:

EKG Cable       ................ 1Pcs
Plastic Case   .................. 1Pcs
Leather Case ................... 1Pcs
Battery   ........................... 2Pcs
SD Card    ....................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

Rechargable Battery
Charger (Panasonic)


Product Features

    HeartRec Holter Monitoring System from Meditech

     ECG Holter recorder
    Automatic Duplex Operation: 12 Channel (10-wire cable),
                                                   03 Channel  (5-wire or 7-wire selectable )
    Compact size light weight
    Fully programmable high Fidelity research grade performance
    Lower power consumption
    Lightning data transfer
    Pacemaker detection
    Up to 7 days recording


Product Specifications

    Channels: (Two Work Modes)
    12-lead / 3-Channel Switchable by Changing Patient Cable 10-Wire Cable
    12-Lead: I II III aVR aVL aVF V1 - V6 5-Wire or 7-Wire

    Two models Avalable:
    03 Channel
    12 Channel

    Program able Recording:
    Time: 24h-72h for12 channel and up to 7 days for 3 Channel
    Sampling Rate: 128—1024/ch/s up to 10000/ch/s Resolution: 12-16 bits
    Independent Pace Maker Channel

    High Quality Recording:
    Frequency Response: 0.05~60Hz CMMR: >80dB
    Input Impedance: >5MΩ

    Double Work Modes in Data Access:
    Removable SD Card: 512MB/1GB/ 2GB USB connector

    Low Power Consumption:
    One AAA Battery: up to 7 days for 3-Channel

    Compact Size & Light Weight:
    72mm×53mm×16mm (2.8"×2.0"×0.63")
    48g (1.7oz.) battery not included

Related Accessories

    Standard:

    EKG Cable       ................ 1Pcs
    Plastic Case   .................. 1Pcs
    Leather Case ................... 1Pcs
    Battery   ........................... 2Pcs
    SD Card    ....................... 1Pcs
    Cleaning Cloth  ................ 1Pcs

    Options:

    Rechargable Battery
    Charger (Panasonic)
