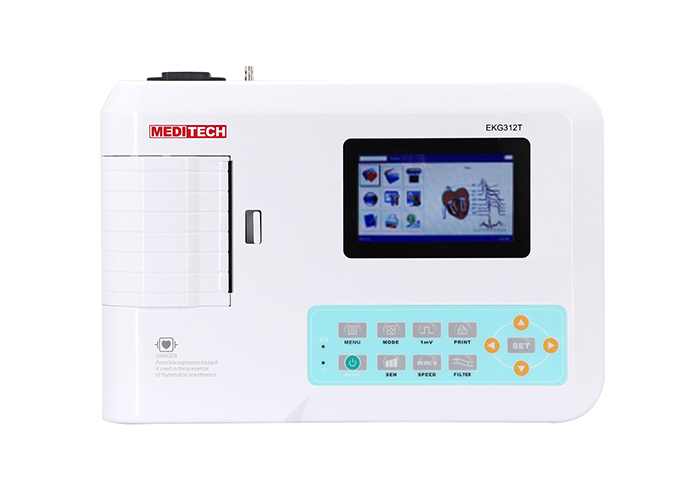

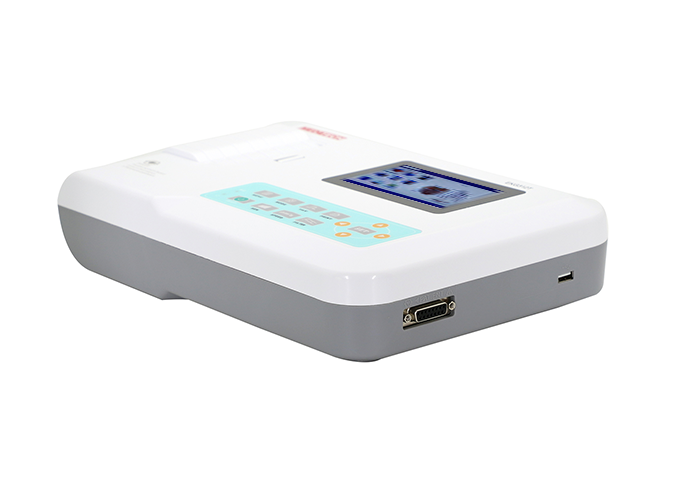

3 Channel ECG Machine Touch Screen - EKG312T

EKG312T

EKG312T Color&Touch Screen ECG machine with Keyboard,and interpretation,
Big capacity of database,
Digital isolation technology and signal processing solution, digital filter,
Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F with touch keyboard.

Storage of more than 1000 tests,
Built-in lithium battery,
Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket
Comes with PC software and USB connector

Read Less

Storage of more than 1000 tests,
Built-in lithium battery,
Auto-measurement, auto-analysis and auto-interpretation. USB and LAN socket
Comes with PC software and USB connector

Color screen, high resolution and design of wider screen in 16:9 ratio
Touch screen and soft keyboard control (patient name, age, gender...)
Simultaneous display of 12 leads
AC filter, baseline filter and EMG filter for ECG signals
Automatic analysis and automatic interpretation, more than 10 pressure modes
More than 1000 cases in internal memory
Can print for 90 minutes and print 150 ECG continuously
Paper speed: Automatic & manual recording: 6.25, 12.5, 25, 50mm/s, Error: ±5%
Measurement parameters: HR p R interval, P duration, QRS duration, T-duration
Q-T interval, Q-Tc. P-axis, QRS axis, T-axis, R(V5), S(V1), R(V5)+S(V1)
Sensitivity selection: 2,5,5,10,20,40 mm/mV, 5 options, error: ±5%, default sensitivity is 10mm/mV±0.2mm/mV
Comes with CardioSoft pro software PC for data transfer (save, review, print a report)
Re analysis and display of 12 channel ECG, analysis elements of FCG, HFCG. QTD and HRV
PC software CardioSoft pro for data transfer (save, review, print a report)

Languages :
English
Chinese
Spanish
Italian
German
French
Russian
Portuguese
Polish
Turkish
and more...

Optional: ECG-Sync software connect with the PC by USB connector to form an ECG

Comes with PC Software for data transfer

More details click here

Leads: Standard 12 Lieads
Patient leakage current: < 10μA
Input impedance: ≥5MΩ
Frequency response: 1Hz~75Hz
Time constant: Time constant > 3.2s
CMRR: ＞60dB
EMG noise filter: 25/35Hz(-3dB)
Recording method: thermal array printing system
Recording paper specification:
Paper speed:
Automatic recording: 25mm/s 50mm/s Error:±5%
Rhythmic recording: 25mm/s 50mm/s Error:±5%
Manual recording: 5 mm/s 6.25 mm/s 10 mms10mm/s 12.5 mm/s 25 mm/s 50 mm/s Error:±5%.
Sensitivity selection: 2.55102040mm/mV 5 options Error:±5%. The default sensitivity is 10mm/mV±0.2mm/mV.
Automatic recording: set up recording according to recording format and automatic mode with automatic change of line measurement and analysis.
Manual recording: set up recording according to recording format with manual change of measurement lines.
Measurement parameters: HR P-R interval P duration QRS duration T duration Q-T interval Q-Tc P axis QRS axis T axis R(V5) S(V1) R(V5)+S(V1)
Product safety type: class I type CF Defibrillation safe applied part.
Continuous polarization voltage: ±300mV
Noise level: ≤15μVp-p
Fuse specification: 2 pieces φ5×20mm AC slow-blow; T1.6A/250V(220V power supply)

Operation
a) Ambient temperature: +5℃~+35℃
b) Relative humidity: ≤80%
c) Power supply: AC:100~240V50/60Hz
 DC:7.4V 3700 mAh rechargeable lithium battery
d) Atmospheric pressure: 86kPa~106kPa

Transportation and storage
a) Ambient temperature: -10℃~55℃
b) Relative humidity: ≤95%
c) Atmospheric pressure: 50kPa~106kPa
Input type: floating and defibrillation protection

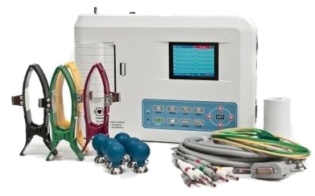

Standard:

Chest Electrode ......... 6Pcs
Clamp Electrode ........... 4Pcs
EKG Cable   ................. 1Pcs
USB Cable   ..................... 1Pcs
CD "CardioSoft pro" ........ 1Pcs
Ground Wire   .................. 1Pcs
Paper Role ...................... 1Pcs
Power cable .................... 1Pcs
Cleaning Cloth ................ 1Pcs

Options:

Case
Thermal Paper
ECG Trolley
PC (Computer) accessories
Printer accessorie

Product Features

Color screen, high resolution and design of wider screen in 16:9 ratio
Touch screen and soft keyboard control (patient name, age, gender...)
Simultaneous display of 12 leads
AC filter, baseline filter and EMG filter for ECG signals
Automatic analysis and automatic interpretation, more than 10 pressure modes
More than 1000 cases in internal memory
Can print for 90 minutes and print 150 ECG continuously
Paper speed: Automatic & manual recording: 6.25, 12.5, 25, 50mm/s, Error: ±5%
Measurement parameters: HR p R interval, P duration, QRS duration, T-duration
Q-T interval, Q-Tc. P-axis, QRS axis, T-axis, R(V5), S(V1), R(V5)+S(V1)
Sensitivity selection: 2,5,5,10,20,40 mm/mV, 5 options, error: ±5%, default sensitivity is 10mm/mV±0.2mm/mV
Comes with CardioSoft pro software PC for data transfer (save, review, print a report)
Re analysis and display of 12 channel ECG, analysis elements of FCG, HFCG. QTD and HRV
PC software CardioSoft pro for data transfer (save, review, print a report)

Languages :
English
Chinese
Spanish
Italian
German
French
Russian
Portuguese
Polish
Turkish
and more...

Optional: ECG-Sync software connect with the PC by USB connector to form an ECG

Comes with PC Software for data transfer

More details

click here

Product Specifications

Leads: Standard 12 Lieads
Patient leakage current: < 10μA
Input impedance: ≥5MΩ
Frequency response: 1Hz~75Hz
Time constant: Time constant > 3.2s
CMRR: ＞60dB
EMG noise filter: 25/35Hz(-3dB)
Recording method: thermal array printing system
Recording paper specification:
Paper speed:
Automatic recording: 25mm/s 50mm/s Error:±5%
Rhythmic recording: 25mm/s 50mm/s Error:±5%
Manual recording: 5 mm/s 6.25 mm/s 10 mms10mm/s 12.5 mm/s 25 mm/s 50 mm/s Error:±5%.
Sensitivity selection: 2.55102040mm/mV 5 options Error:±5%. The default sensitivity is 10mm/mV±0.2mm/mV.
Automatic recording: set up recording according to recording format and automatic mode with automatic change of line measurement and analysis.
Manual recording: set up recording according to recording format with manual change of measurement lines.
Measurement parameters: HR P-R interval P duration QRS duration T duration Q-T interval Q-Tc P axis QRS axis T axis R(V5) S(V1) R(V5)+S(V1)
Product safety type: class I type CF Defibrillation safe applied part.
Continuous polarization voltage: ±300mV
Noise level: ≤15μVp-p
Fuse specification: 2 pieces φ5×20mm AC slow-blow; T1.6A/250V(220V power supply)

Operation
a) Ambient temperature: +5℃~+35℃
b) Relative humidity: ≤80%
c) Power supply: AC:100~240V50/60Hz
 DC:7.4V 3700 mAh rechargeable lithium battery
d) Atmospheric pressure: 86kPa~106kPa

Transportation and storage
a) Ambient temperature: -10℃~55℃
b) Relative humidity: ≤95%
c) Atmospheric pressure: 50kPa~106kPa
Input type: floating and defibrillation protection
